Network surveillance camera - PTZ - color - 2.1 MP - 1080p - HDMI - HDBaseT - H.264 - DC 12 V / PoE Plus
| Main Specifications | |
|---|---|

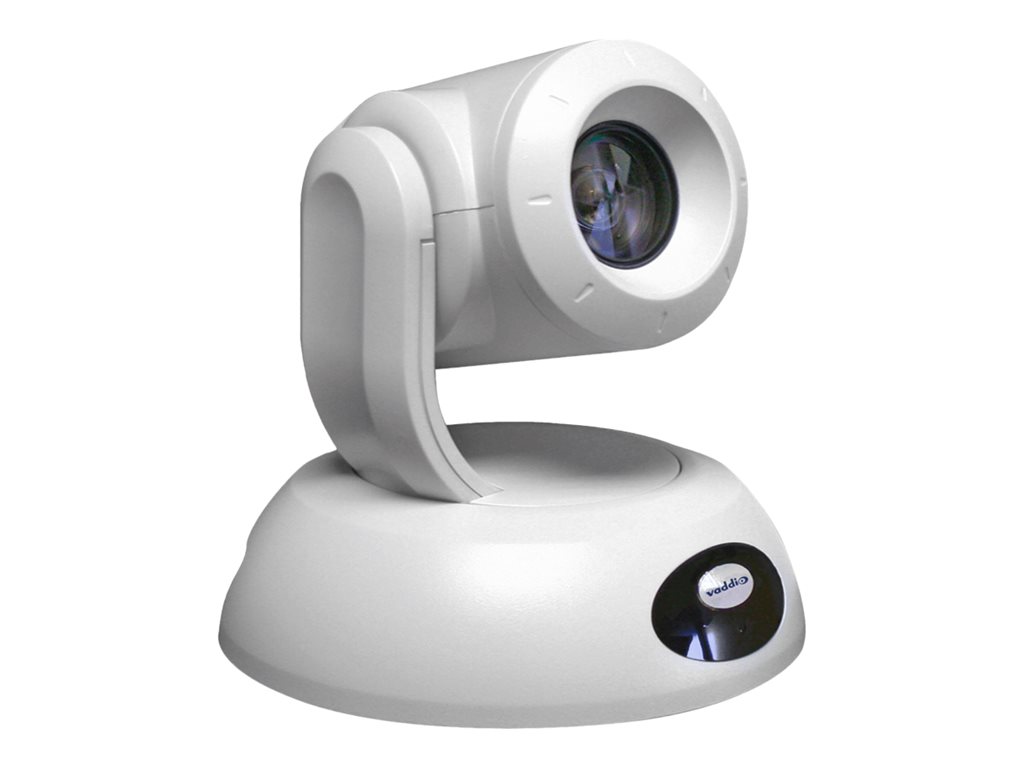

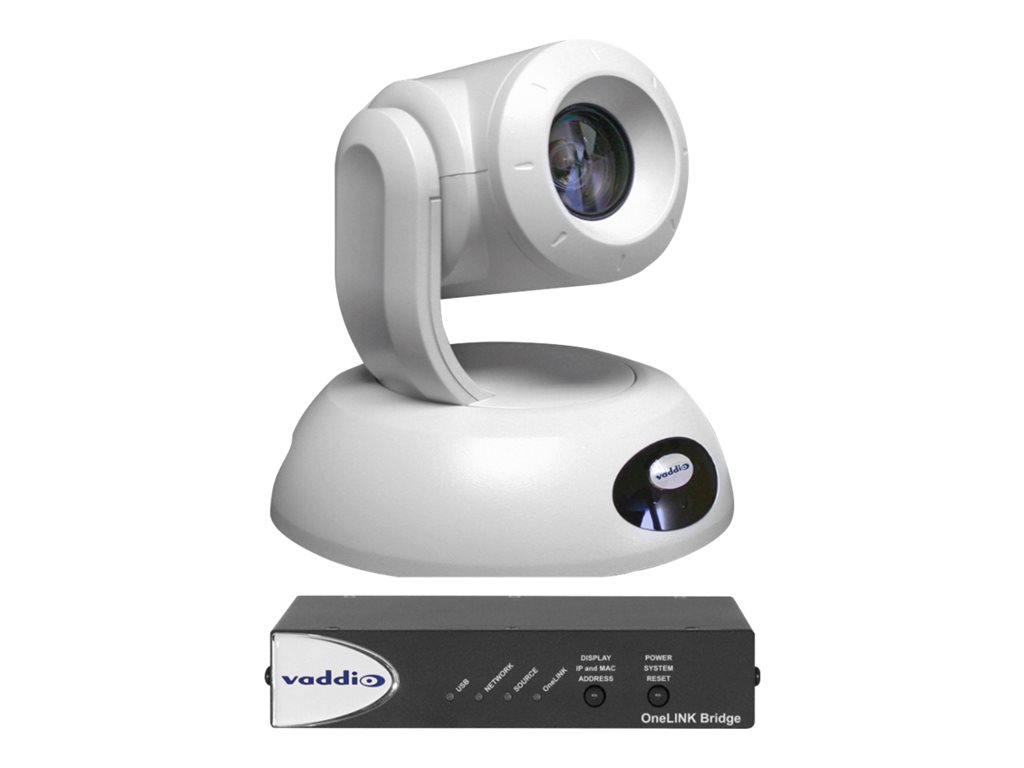

| Product Description | Vaddio RoboSHOT 30 HDBT OneLINK Bridge System - network surveillance camera |
| Device Type | Network surveillance camera - pan / tilt / zoom |
| Dimensions (WxDxH) | 7 in x 6.8 in x 6.9 in |
| Weight | 4.85 lbs |
| Color | White |
| Connectivity Technology | Wired |
| Camera | Color |
| Optical Zoom | 30 x |
| Video Modes | 1080p |
| Optical Sensor Type | Exmor CMOS - 1/2.8" - 2.1 MP |
| Focus Adjustment | (min distance 0.4 in) |
| Lens Iris | F/1.6-4.7 |
| Panning Range (degree) | -160 to +160 |
| Tilting Range (degree) | -30 to +90 |
| Interfaces | HDMI, HDBaseT |
| Control Interface | RS-232 |
| Cables Included | 1 - SuperSpeed USB cable - external - 6 ft |
| Voltage | DC 12 V / PoE Plus |
| Features | Manual white balance, Backlight Compensation (BLC), white balance, Automatic Tracing White (ATW), manual gain control, auto gain control, auto white balance, noise reduction, Tri-Synchronous Motion |
| Environmental Parameters (operating) | 32 °F - 104 °F; 20 - 80% (non-condensing) relative humidity |
| General | |
| Device Type | Network surveillance camera |
| Connectivity Technology | Wired |
| Width | 7 in |
| Depth | 6.8 in |
| Height | 6.9 in |
| Weight | 4.85 lbs |
| Localization | North America |
| Expansion / Connectivity | |
| Ports | HDMI ¦ HDBase-T - RJ-45 |
| Miscellaneous | |

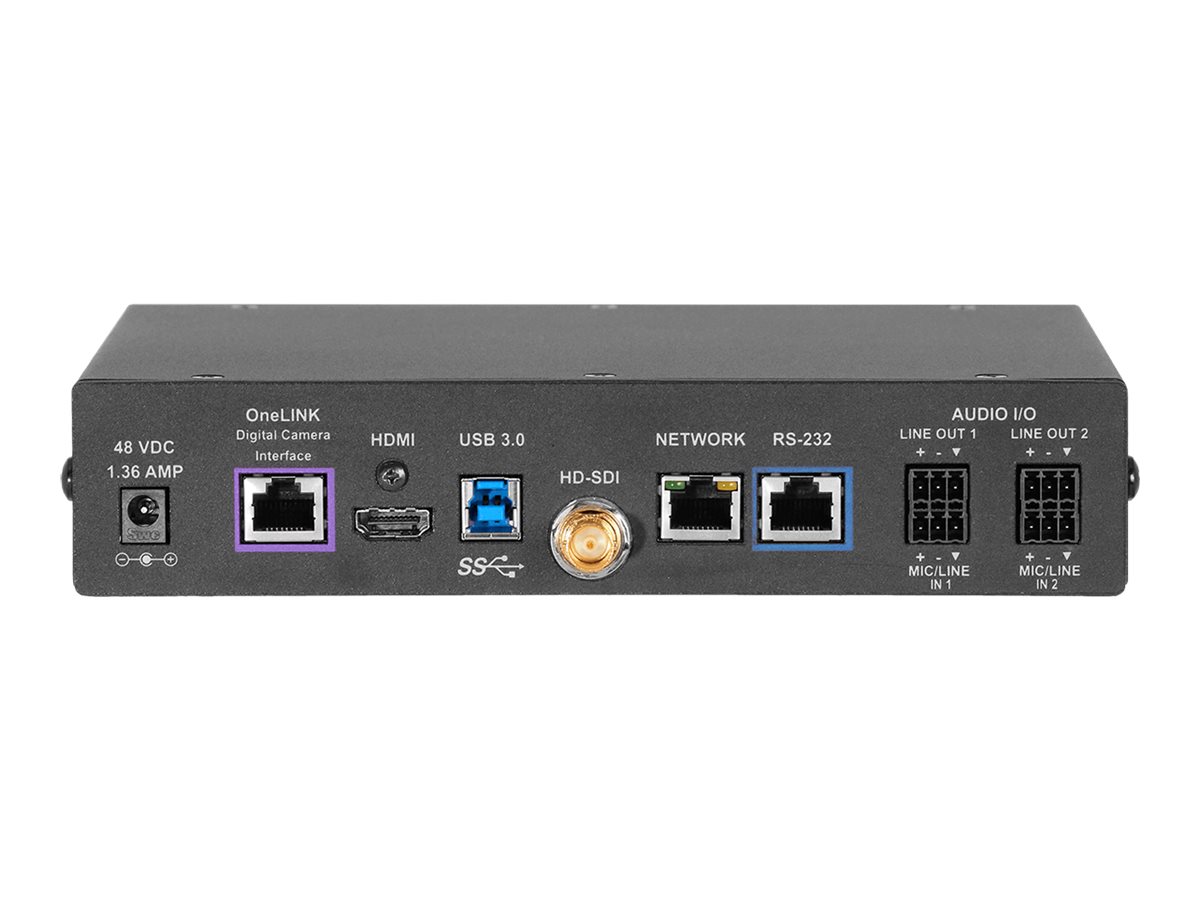

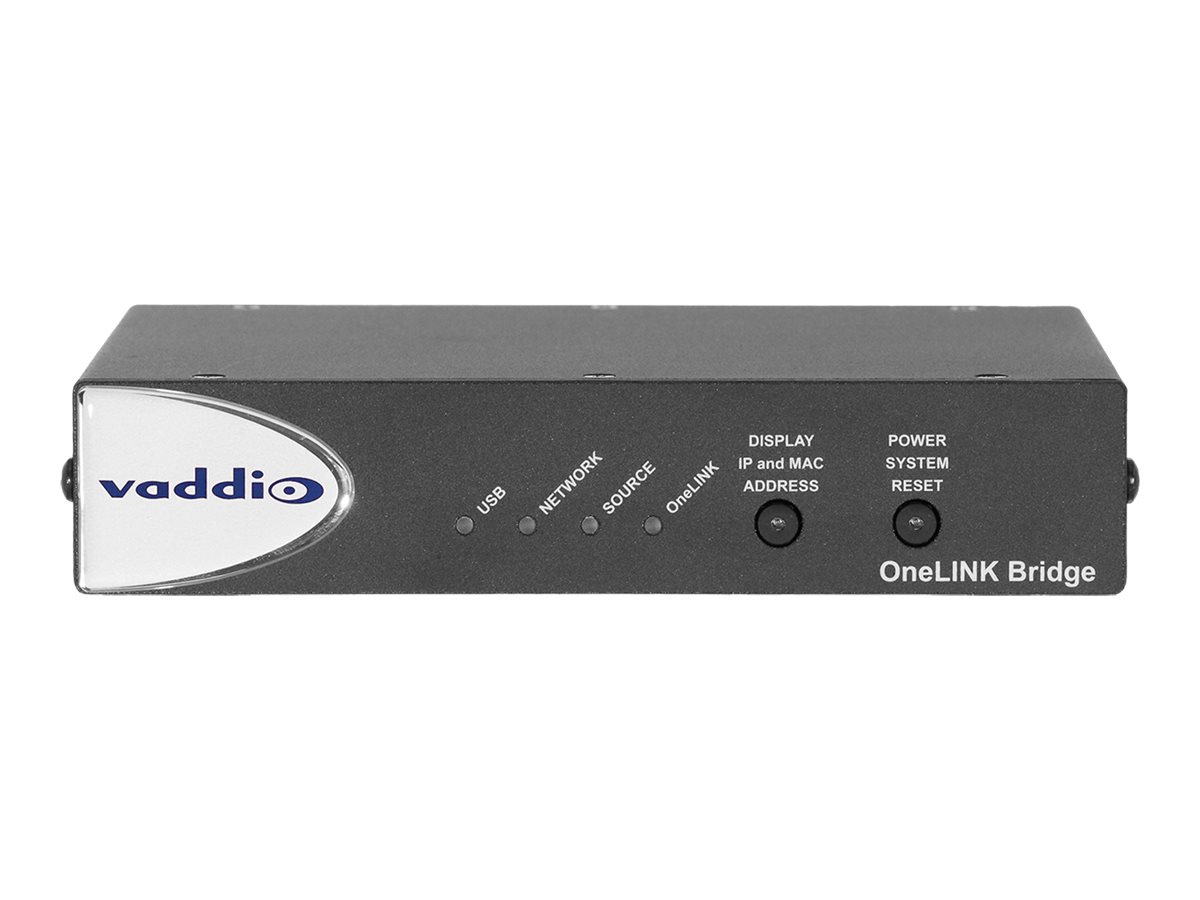

| Included Accessories | Remote control, wall mount kit, EZCamera RS-232 Control Adapter, OneLINK HDMI Interface |
| Cables Included | 1 x SuperSpeed USB cable - external - 6 ft |
| Color | White |
| Power | |
| Power Requirements | DC 12 V / PoE Plus |
| Power Device | Power adapter |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Relative Humidity (operating) | 20 - 80% (non-condensing) |
| Camera | |
| Type | Color - pan / tilt / zoom |
| Digital Video Format | H.264 |
| Video Modes | 1080p |
| Features | Manual white balance, Backlight Compensation (BLC), white balance, Automatic Tracing White (ATW), manual gain control, auto gain control, auto white balance, noise reduction, Tri-Synchronous Motion |
| Lens Construction | |
| Optical Zoom | 30 x |
| Lens Iris | F/1.6-4.7 |
| Min Focus Distance | 0.4 in |
| Horizontal Field of View (degree) | 2.3 - 65 |
| Image Sensor | |
| Type | 2.1 MP Exmor CMOS 1/2.8" |
| Interfaces | |
| Video | HDMI |
| Network Interface | HDBaseT |
| Control Interface | RS-232 |
| Panning | |
| Range (degree) | -160 to +160 |
| Speed (degree/sec) | Up to 120 |
| Tilting | |
| Range (degree) | -30 to +90 |
| Speed (degree/sec) | Up to 120 |
