Network surveillance camera - outdoor, indoor - color - LAN 10/100 - PoE Class 3
| Main Specifications | |
|---|---|

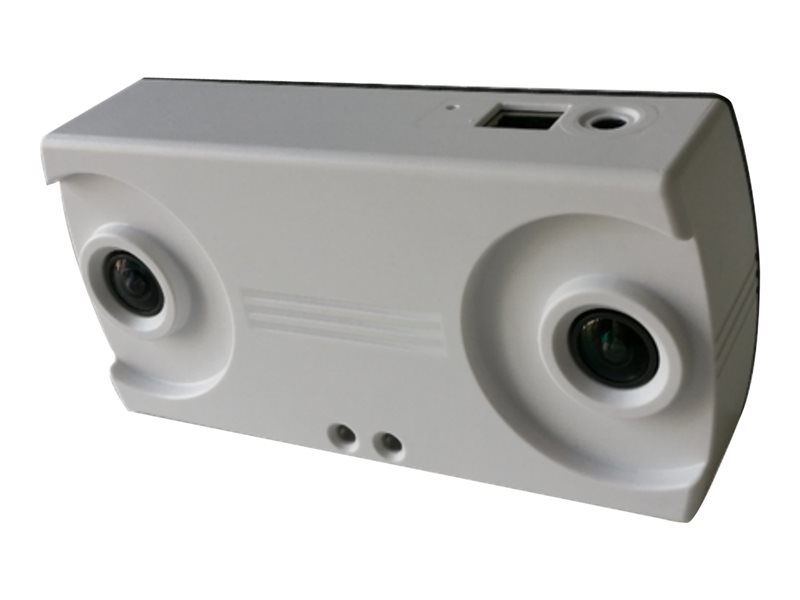

| Product Description | Advantech UCAM-130 - network surveillance camera |
| Device Type | Network surveillance camera - fixed - outdoor, indoor |
| Dimensions (WxDxH) | 6.4 in x 1.9 in x 3.1 in |
| Weight | 12.34 oz |
| Connectivity Technology | Wired |
| Camera | Color |
| Frame Rate (max) | 15 frames per second |
| Focal Length | 2.2 mm |
| Interfaces | Ethernet 10Base-T/100Base-TX |
| Voltage | PoE Class 3 |
| Features | Power over Ethernet, people counting, stereo imaging, 20 - 100 people simultaneously tracking |
| Environmental Parameters (operating) | 32 °F - 122 °F |
| General | |
| Device Type | Network surveillance camera |
| Connectivity Technology | Wired |
| Width | 6.4 in |
| Depth | 1.9 in |
| Height | 3.1 in |
| Weight | 12.34 oz |
| Power | |
| Power Requirements | PoE Class 3 |
| Power Device | 10 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Camera | |
| Type | Color - fixed - outdoor, indoor |
| Frame Rate (max) | 15 frames per second |
| RAM | 2 GB |
| Flash Memory | 8 GB |
| Features | Power over Ethernet, people counting, stereo imaging, 20 - 100 people simultaneously tracking |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 8 in |
| Shipping Depth | 2.8 in |
| Shipping Height | 4.2 in |
| Lens Construction | |
| Focal Length | 2.2 mm |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
