Fanless - barebone - box - 1 x Core i5 6300U / up to 3 GHz - RAM 0 GB - HD Graphics 520 - Gigabit Ethernet
| Main Specifications | |
|---|---|
| Product Description | Advantech Intelligent Fanless Box PC UBX-310F - fanless - box - Core i5 6300U 2.4 GHz - 0 GB - no HDD |
| Type | PC barebone - box |
| Processor | 1 x Intel Core i5 (6th Gen) 6300U / 2.4 GHz (, up to 3 GHz, (Dual-Core) |
| Cache Memory | 3 MB L3 cache |
| Cache Per Processor | 3 MB |
| RAM | 0 GB (installed) / 16 GB (max) - DDR4 SDRAM |
| Storage Controller | SATA |
| Hard Drive | No HDD |
| Optical Storage | No optical drive |
| Graphics Controller | Intel HD Graphics 520 |
| Networking | 1GbE |
| OS Provided | No operating system |
| Dimensions (WxDxH) | 9.6 in x 7.3 in x 1.8 in |
| Weight | 4.41 lbs |
| General | |
| Type | PC barebone |
| Product Form Factor | Box |
| Expansion / Connectivity | |
| Bays | 1 (total) / 1 (free) x internal 2.5" |
| Slots | 2 (total) / 2 (free) x PCIe Mini Card - full-length ¦ 2 (total) / 2 (free) x mSATA |

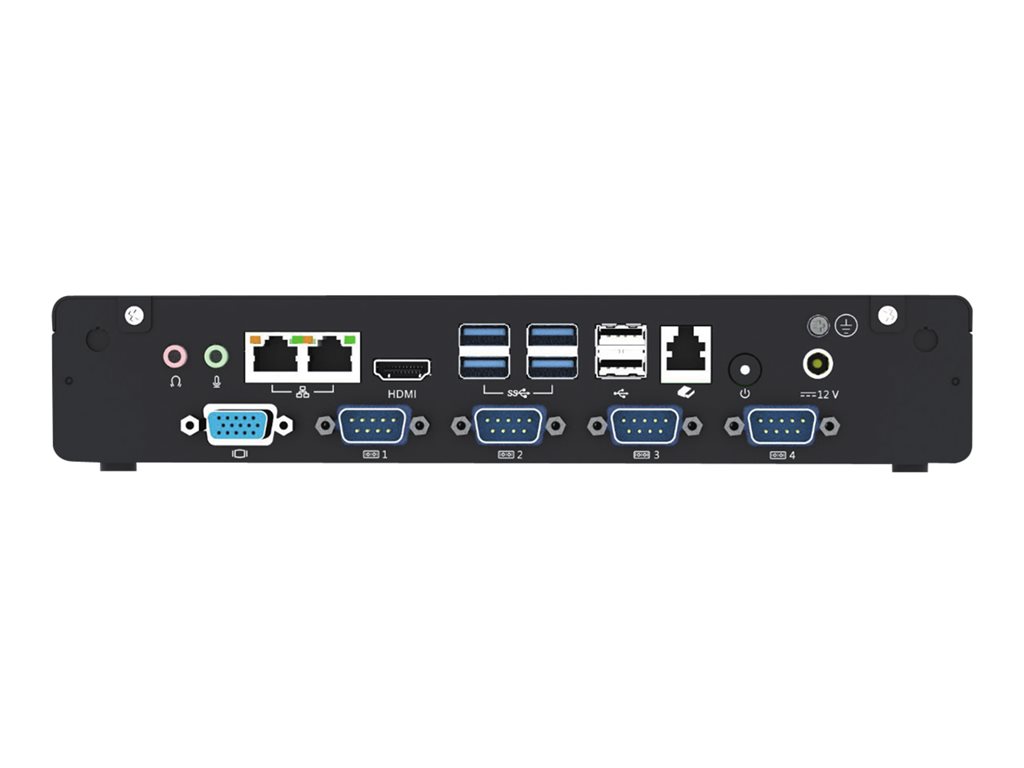

| Interfaces | 1 x HDMI ¦ 1 x VGA ¦ 4 x USB 3.0 ¦ 3 x USB 2.0 ¦ 4 x serial ¦ 2 x LAN (Gigabit Ethernet) - RJ-45 ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x cash drawer - RJ-11 |
| Miscellaneous | |
| VESA Mounting Interface | Yes |
| Compliant Standards | UL, BSMI, CB, CCC, FCC, RoHS, cULus, IEC 60068-2-64 |
| RAM | |
| Installed Size | 0 GB / 16 GB (max) |
| Technology | DDR4 SDRAM |
| Form Factor | SO-DIMM 260-pin |
| Slots | 1 (total) / 1 (empty) |
| Features | Single channel memory architecture |
| Networking | |
| Ethernet Ports | 2 x Gigabit Ethernet |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Power | |
| Power Consumption Operational | 60 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 90% (non-condensing) |
| Storage Controller | |
| Type | SATA |
| Cache Memory | |
| Installed Size | L3 cache - 3 MB |
| Cache Per Processor | 3 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | Intel HD Graphics 520 |
| Video Interfaces | VGA, HDMI |
| Operating System / Software | |
| OS Provided | No operating system |
| Hard Drive | |
| Type | No HDD |
| Dimensions & Weight | |
| Width | 9.6 in |
| Depth | 7.3 in |
| Height | 1.8 in |
| Weight | 4.41 lbs |
| Processor / Chipset | |
| CPU | Intel Core i5 (6th Gen) 6300U |
| Clock Speed | 2.4 GHz |
| Max Turbo Speed | 3 GHz |
| Number of Cores | Dual-Core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
