Network management device - 1GbE - AC 100 - 240 V - 1U - rack-mountable
| Main Specifications | |
|---|---|

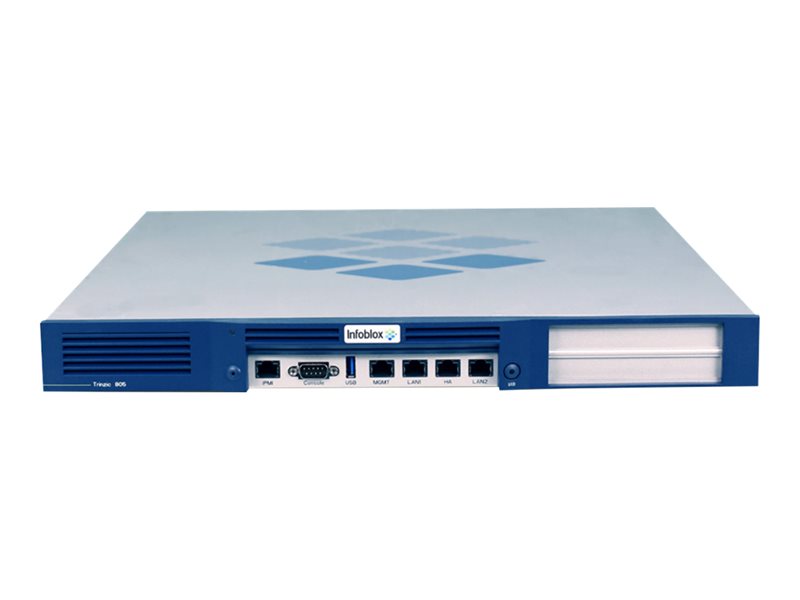

| Product Description | Infoblox Network Insight ND-805 - network management device |
| Device Type | Network management device |
| Form Factor | Rack-mountable - 1U |
| Hard Drive | 1 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Power | AC 100 - 240 V (50/60 Hz) |
| Dimensions (WxDxH) | 17.4 in x 20.6 in x 1.7 in |
| Weight | 17 lbs |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Network management device |
| Height (Rack Units) | 1U |
| Width | 17.4 in |
| Depth | 20.6 in |
| Height | 1.7 in |
| Weight | 17 lbs |
| Expansion / Connectivity | |
| Interfaces | 2 x 1000Base-T - RJ-45 ¦ 1 x 1000Base-T (HA) - RJ-45 ¦ 1 x 1000Base-T (management) - RJ-45 ¦ 1 x IPMI - RJ-45 ¦ 1 x serial - DB-9 ¦ 1 x USB 3.0 - Type A |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year ¦ Limited warranty - software application support - 90 days |
| Miscellaneous | |
| Compliant Standards | TUV, VCCI, C-Tick, GOST, NOM, CB, CCC, FCC, RoHS, KCC, WEEE, BIS |
| Networking | |
| Form Factor | Rack-mountable |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Remote Management Protocol | IPMI 2.0 |
| Features | IPv4 support, 4 fans |
| Power | |
| Power Device | Internal power supply |
| Installed Qty | 1 |
| Voltage Required | AC 100 - 240 V (50/60 Hz) |
| Power Provided | 350 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Processor / Memory / Storage | |
| Hard Drive | HDD 1 |
