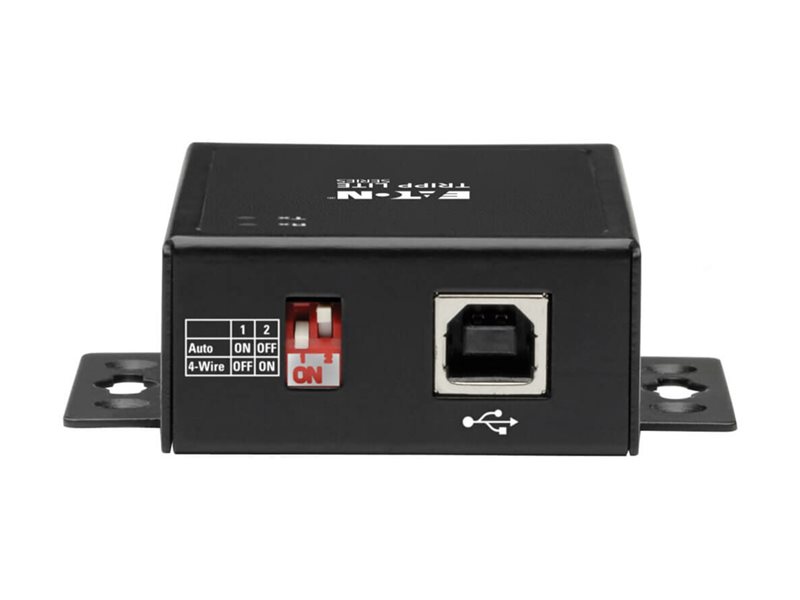

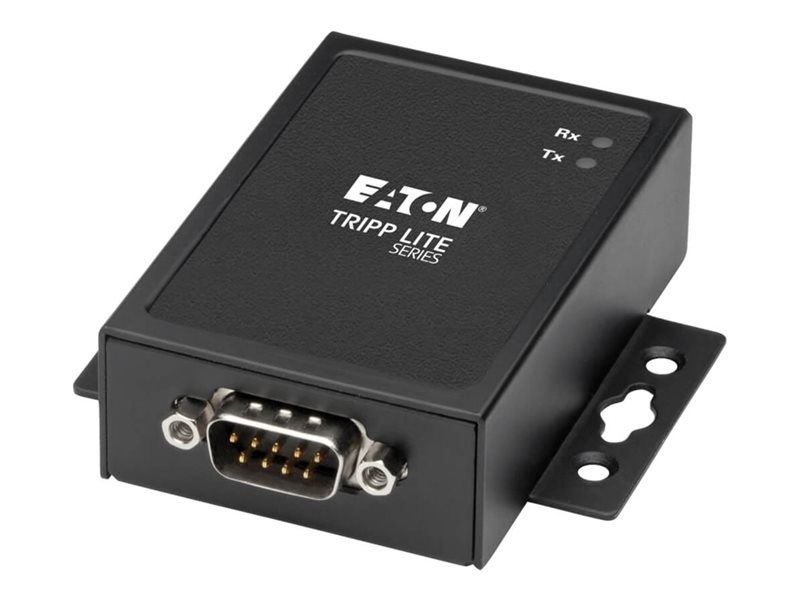

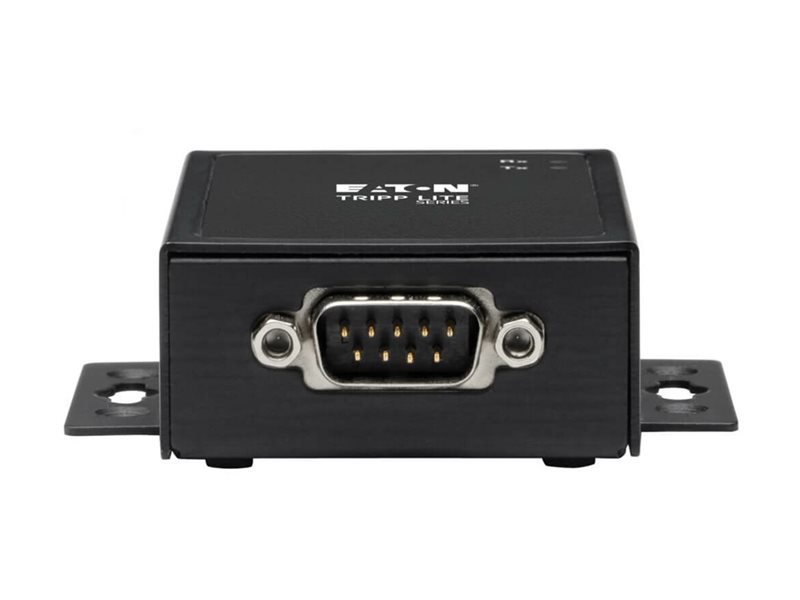

Serial adapter - USB 2.0 - RS-422/485 - black
| Main Specifications | |
|---|---|
| Product Description | Eaton Tripp Lite Series RS-422/RS-485 USB to Serial FTDI Adapter with COM Retention (USB-B to DB9 F/M), 1 Port - serial adapter - USB 2.0 - RS-422/485 |
| Device Type | Serial adapter |
| Form Factor | External |
| Interface (Bus) Type | USB 2.0 |
| Ports | RS-422/485 |
| Dimensions (WxDxH) | 0.9 in x 2.8 in x 2.9 in |
| Weight | 4.94 oz |
| Data Link Protocol | RS-422, RS-485 |
| Color | Black |
| System Requirements | Microsoft Windows XP or later, Apple MacOS X 10.4 or later, Linux 2.6.31 or later |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Serial adapter |
| Form Factor | External |
| Interface (Bus) Type | USB 2.0 |
| Expansion / Connectivity | |
| Interfaces | 1 x RS-422/485 - 9 pin D-Sub (DB-9) - male |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included | 1 x USB cable (external) - 3 ft |
| Compliant Standards | FCC, RoHS, REACH |
| Color | Black |
| Networking | |
| Ports | RS-422/485 |
| Connectivity Technology | Wired |
| Data Link Protocol | RS-422, RS-485 |
| Status Indicators | Receive, sent |
| Features | Gold plated connectors |
| Power | |
| Power Consumption Operational | 4.5 Watt |
| Software / System Requirements | |
| OS Required | Microsoft Windows XP or later, Apple MacOS X 10.4 or later, Linux 2.6.31 or later |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 0.9 in |
| Depth | 2.8 in |
| Height | 2.9 in |
| Weight | 4.94 oz |
