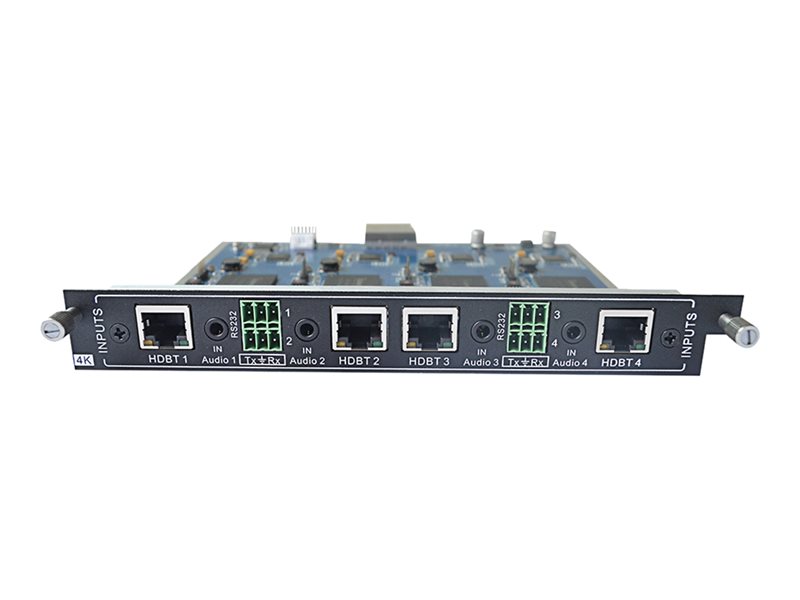

Expansion module - HDBaseT x 4 + audio x 4 + RS-232 x 4
| Main Specifications | |
|---|---|
| Product Description | KanexPro 4-Input HDBaseT card for Modular matrix with 4K - expansion module - HDBaseT x 4 + audio x 4 + RS-232 x 4 |
| Device Type | Expansion module |
| Form Factor | Plug-in card |
| Ports | HDBaseT x 4 + audio x 4 + RS-232 x 4 |
| Data Link Protocol | HDBaseT, RS-232 |
| Data Transfer Rate | 10.2 Gbps |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Expansion module |
| Form Factor | Plug-in card |
| Expansion / Connectivity | |
| Interfaces | 4 x HDBaseT input - RJ-45 - female ¦ 4 x audio line-in - mini-phone 3.5 mm ¦ 3 x RS-232 - 3 pin Phoenix |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years |
| Miscellaneous | |
| Compliant Standards | HDCP 1.4 |
| Networking | |
| Ports | HDBaseT x 4 + audio x 4 + RS-232 x 4 |
| Connectivity Technology | Wired |
| Data Link Protocol | HDBaseT, RS-232 |
| Data Transfer Rate | 10.2 Gbps |
| Features | 4K resolution support, 1080p resolution support, 3D support, HDCP compliant, 2K resolution support, EDID Management, DTS-HD Master Audio support, Dolby TrueHD support |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 20 - 90% (non-condensing) |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 15.17 oz |
