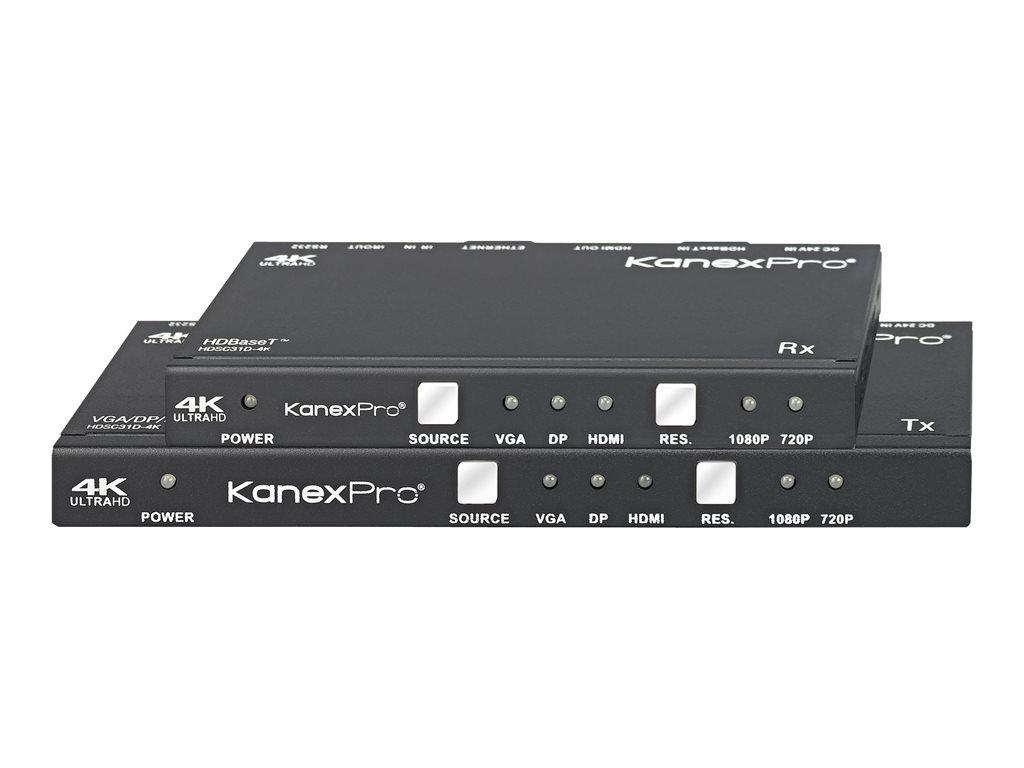

3x1 switcher / scaler / HDBaseT transmitting system
| Main Specifications | |
|---|---|
| Product Description | KanexPro HDSC31D-4K 3x1 switcher / scaler / HDBaseT transmitting system |
| Type | 3x1 switcher / scaler / HDBaseT transmitting system |
| Manufacturer Warranty | 3 years |
| General | |
| Type | 3x1 switcher / scaler / HDBaseT transmitting system |
| Manufacturer Warranty | |
| Warranty | 3 years |
| Power | |
| Power Consumption | 3.8 watt |
| Low Voltage Power | DC 24 V |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 10 - 90% |
| Kit Content | |
| Kit Content | (1) x receiver unit ¦ (1) x transmitter unit ¦ (1) x power supply |
| Terminals | |
| Terminals | (4) x HDMI input - 19 pin HDMI Type A ¦ (1) x VGA input - 15 pin HD D-Sub (HD-15) ¦ (1) x DisplayPort input - 20 pin DisplayPort ¦ (1) x HDBaseT output - RJ-45 ¦ (1) x HDBaseT input - RJ-45 ¦ (1) x HDMI output - 19 pin HDMI Type A |
| Studio & Production Equipment | |
| Features | EDID support, 4K resolution support, Power Over Ethernet support, HDCP 2.2 compliant, Consumer Electronics Control (CEC) |
