Expansion module - HDBaseT x 1 + audio x 1
| Main Specifications | |
|---|---|

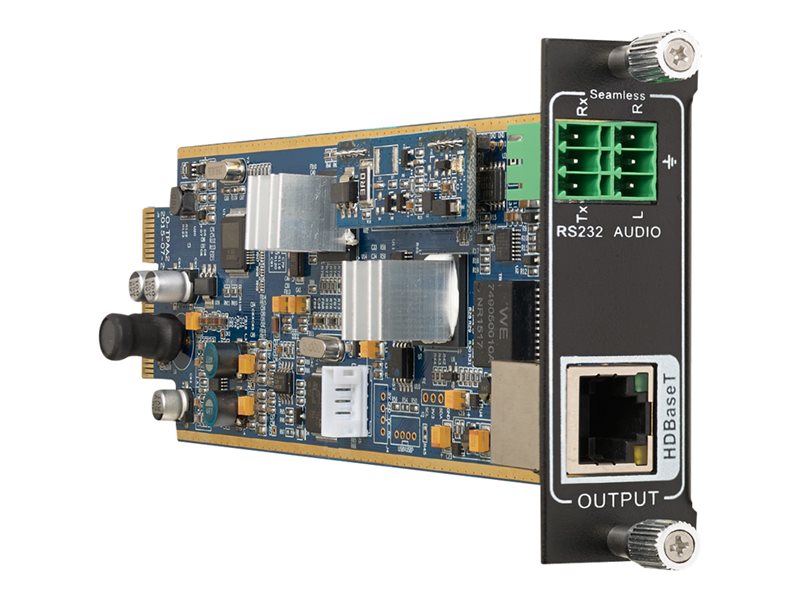

| Product Description | KanexPro Flexible One Output 4K HDBaseT card with Audio - expansion module - HDBaseT x 1 + audio x 1 |
| Device Type | Expansion module |
| Form Factor | Plug-in card |
| Ports | HDBaseT x 1 + audio x 1 |
| Data Link Protocol | HDBaseT, RS-232 |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Expansion module |
| Form Factor | Plug-in card |
| Expansion / Connectivity | |
| Interfaces | 1 x HDBaseT - RJ-45 ¦ 1 x audio line-out - 3 pin terminal block |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years |
| Miscellaneous | |
| Compliant Standards | Plug and Play, DDC, EDID compatible, HDCP 1.4, HDCP 2.2 |
| Networking | |
| Ports | HDBaseT x 1 + audio x 1 |
| Connectivity Technology | Wired |
| Data Link Protocol | HDBaseT, RS-232 |
| Features | HDCP compliant, EDID Management, 4K resolution support, Dolby TrueHD support, 3D support |
| Power | |
| Power Consumption Operational | 13.5 watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 10 - 90% |
