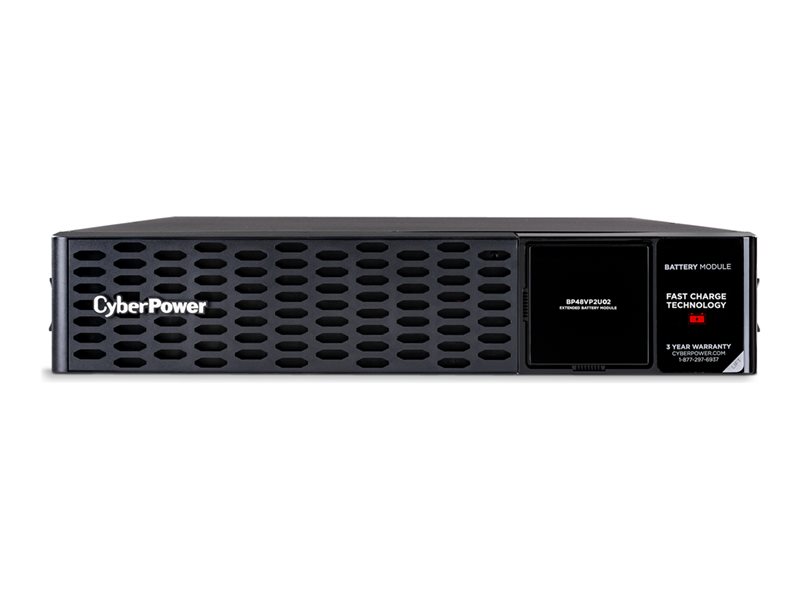

Battery enclosure (rack-mountable / external) - 8 x battery - lead acid - 9 Ah - 2U - black - for Smart App Sinewave PR2200RTXL2UCN, PR3000RTXL2UCN
| Main Specifications | |
|---|---|
| Product Description | CyberPower External Battery Module Series BP48VP2U02 - battery enclosure - lead acid - 9 Ah |
| Device Type | Battery enclosure - rack-mountable / external |
| Rack Size | 2U |
| Weight | 66.14 lbs |
| Output Voltage | 48 V |
| Battery | Lead acid - 9 Ah |
| Batteries Qty | 8 |
| Included Accessories | Rack mounting rails, rack mounting ears |
| Color | Black |
| Dimensions (WxDxH) | 17 in x 19.7 in x 3.4 in |
| Manufacturer Warranty | 2-year warranty |
| Designed For | Smart App Sinewave PR2200RTXL2UCN, PR3000RTXL2UCN |
| General | |
| Device Type | Battery enclosure - rack-mountable / external |
| Height (Rack Units) | 2U |
| Color | Black |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Included Accessories | Rack mounting rails, rack mounting ears |
| Rack Mounting Kit | Included |
| Features | Metal cabinet, built-in battery charger, hot-swappable batteries, Enhanced Battery Management (EBM) |
| Compliant Standards | FCC Class B certified, UL, VCCI, RoHS, RCM |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Battery | |
| Quantity | 8 |
| Technology | Lead acid |
| Voltage Provided | 12 V |
| Capacity | 9 Ah |
| Recharge Time | 6 hours |
| Features | Sealed |
| Power Device | |
| Output Voltage | 48 V |
| Dimensions & Weight | |
| Width | 17 in |
| Depth | 19.7 in |
| Height | 3.4 in |
| Weight | 66.14 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 22 in |
| Shipping Depth | 24.4 in |
| Shipping Height | 10.8 in |
| Shipping Weight | 81.57 lbs |
| Compatibility Information | |
| Designed For | CyberPower Smart App Sinewave PR2200RTXL2UCN, PR3000RTXL2UCN |
