Network management device - 1GbE - Wi-Fi - 1U - rack-mountable
| Main Specifications | |
|---|---|

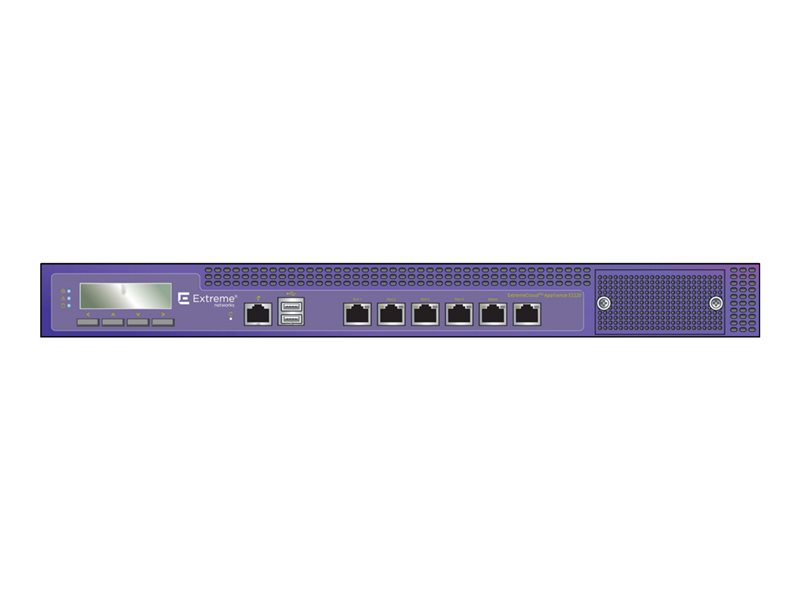

| Product Description | Extreme Networks ExtremeCloud E1120 - network management device - Wi-Fi |
| Device Type | Network management device |
| Form Factor | Rack-mountable - 1U |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Performance | Maximum throughput: 3730 Mbps |
| Capacity | Maximum number of access points: 250 ¦ Manageable access points: 125 ¦ Maximum number of switches: 100 ¦ Simultaneous users: 4000 |
| Included Accessories | 2 mounting brackets, 6 screws |
| Power | AC 120/230 V (50/60 Hz) |
| Dimensions (WxDxH) | 17 in x 12 in x 1.7 in |
| Weight | 9.48 lbs |
| General | |
| Device Type | Network management device |
| Height (Rack Units) | 1U |
| Width | 17 in |
| Depth | 12 in |
| Height | 1.7 in |
| Weight | 9.48 lbs |
| Expansion / Connectivity | |
| Interfaces | 4 x 1000Base-T - RJ-45 ¦ 2 x USB 2.0 - Type A ¦ 1 x console ¦ 1 x 1000Base-T (management) - RJ-45 |
| Miscellaneous | |
| Included Accessories | 2 mounting brackets, 6 screws |
| Cables Included | 1 x console cable |
| Compliant Standards | VCCI, BSMI, CB, IEC 60950-1, UL 60950-1 Second Edition, KCC, ANATEL, NRTL, GB 9254-2008, EN 61000-3-3:2008, EN 61000-3-2:2006+A2:2009, CNS13438:2006, EN 61000-4-11:2004, RCM, MSIP, ICES-003:2012 Class A, IEC 61000-4-2:2008, IEC 61000-4-5:2005, IEC 61000-4-6:2008, IEC 61000-4-11:2004, GB 17625.1-2012, CISPR 24:2010, EN 55024:2010, EN 61000-4-3:2010, FCC CFR47 Part 15 B Class A, GB 4943.1-2011, EN55022:2010 + AC:2011 Class A, EN 61000-4.4:2012, EN 61000-6-4:2007+A1:2011, IEC 61000-4-3:2010, IEC 61000-4-4:2012, EN 61000-4-2:2008, EN 61000-4-5:2005, CAN/CSA-C22.2 No. 60950-1-07 Second Edition, CISPR 22:2010 Class A, EN 61000-4-6:2008 |
| Networking | |
| Form Factor | Rack-mountable |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Network / Transport Protocol | ARP |
| Remote Management Protocol | SNMP 3, SNMP 2c |
| Performance | Maximum throughput: 3730 Mbps |
| Capacity | Maximum number of access points: 250 ¦ Manageable access points: 125 ¦ Maximum number of switches: 100 ¦ Simultaneous users: 4000 |
| Features | High Availability, Wi-Fi Multimedia (WMM) support, Quality of Service (QoS), reset button, Receive Side Scaling (RSS), CAPWAP support, Dynamic Radio Management (DRM), Captive Portal, proxy ARP, DSCP based ToS, RF quality indicator (RFQI) |
| Encryption Algorithm | MD5, AES, TLS, PEAP, TTLS, TKIP, WPA, WPA2, WEP, CCMP |
| Authentication Method | RADIUS, Active Directory, EAP-FAST, EAP-SIM, EAP-AKA |
| Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.11i, IEEE 802.11e, IEEE 802.11k, IEEE 802.11w, IEEE 802.11u |
| Power | |
| Power Device | Internal power supply |
| Installed Qty | 1 |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Provided | 150 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 90% (non-condensing) |
