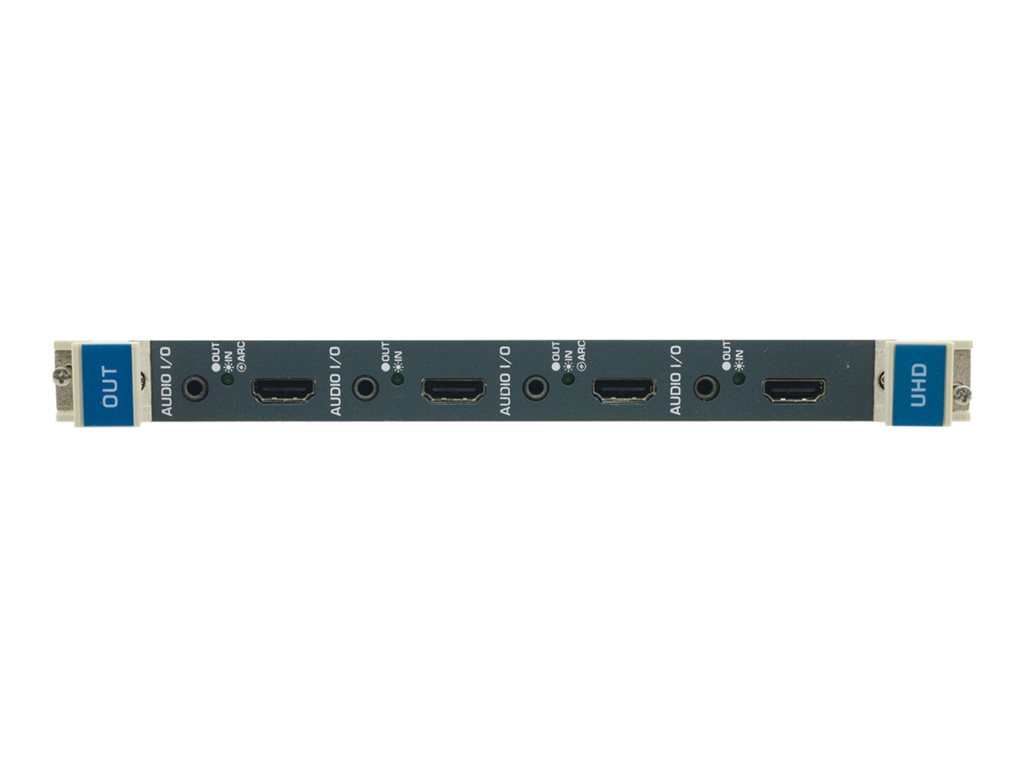

Expansion module - HDMI x 4 + audio x 4
| Main Specifications | |
|---|---|
| Product Description | Kramer UHDA-OUT4-F32 - expansion module - HDMI x 4 + audio x 4 |
| Device Type | Expansion module |
| Form Factor | Plug-in module |
| Ports | HDMI x 4 + audio x 4 |
| Dimensions (WxDxH) | 8.7 in x 7.4 in x 0.8 in |
| Weight | 10.58 oz |
| Performance | Maximum data rate: 8.91 Gbps ¦ Maximum data rate (per graphic channel): 2.97 Gbps |
| General | |
| Device Type | Expansion module |
| Form Factor | Plug-in module |
| Expansion / Connectivity | |
| Interfaces | 4 x HDMI output - 19 pin HDMI Type A - female ¦ 4 x audio - mini-phone 3.5 mm - female |
| Miscellaneous | |
| Compliant Standards | RoHS, WEEE |
| Networking | |
| Ports | HDMI x 4 + audio x 4 |
| Connectivity Technology | Wired |
| Performance | Maximum data rate: 8.91 Gbps ¦ Maximum data rate (per graphic channel): 2.97 Gbps |
| Features | 4K resolution support, HDMI ARC de-embedding, 3D support, 7.1 channel audio support, ARC, Dolby Digital Plus support, Dolby TrueHD support, DTS-HD support, x.v.Color support, audio embedding/de-embedding, 3D Pass-Through, EDID Management, HDCP compliant, HDTV Compatible, Kramer Equalization & re-Klocking Technology |
| Power | |
| Power Consumption Operational | 17 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 8.7 in |
| Depth | 7.4 in |
| Height | 0.8 in |
| Weight | 10.58 oz |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 9.8 in |
| Shipping Depth | 8.9 in |
| Shipping Height | 2.2 in |
| Shipping Weight | 17.64 oz |
