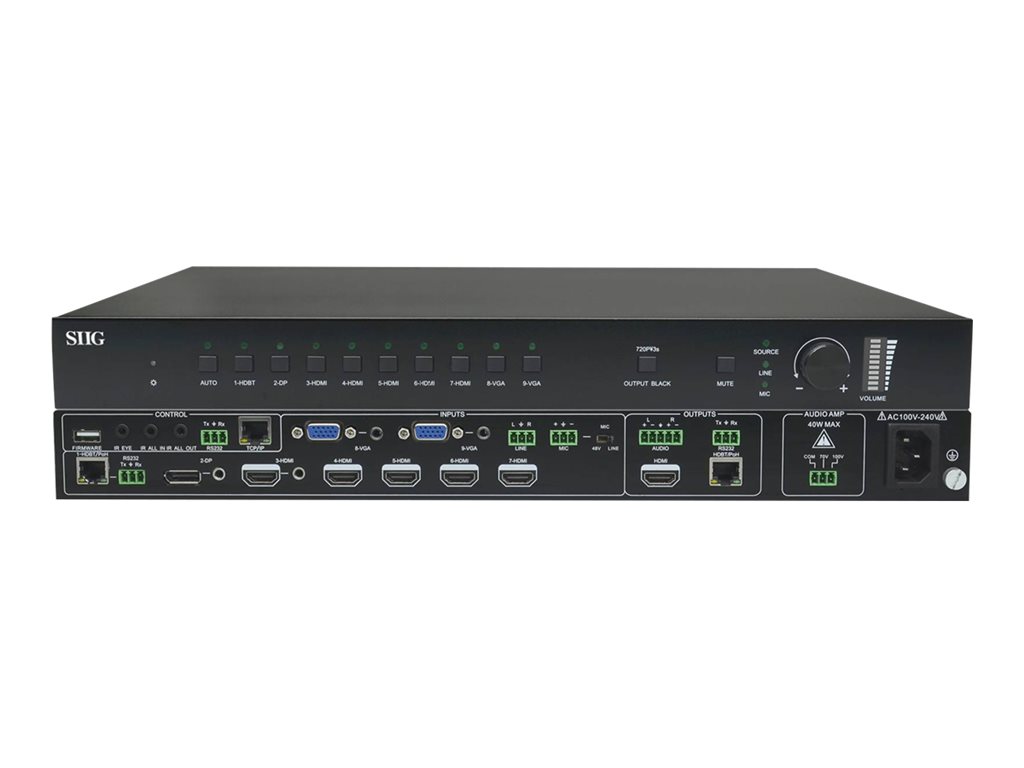

9x1 switcher / scaler / HDBaseT converter
| Main Specifications | |
|---|---|
| Product Description | SIIG 9x1 HDBaseT 4K Scaler Switcher 9x1 switcher / scaler / HDBaseT converter |
| Type | 9x1 switcher / scaler / HDBaseT converter |
| Dimensions (WxDxH) | 17.2 in - 10.9 in - 1.7 in |
| Weight | 6.99 lbs |
| Manufacturer Warranty | 3 years |
| General | |
| Type | 9x1 switcher / scaler / HDBaseT converter |
| Width | 17.2 in |
| Depth | 10.9 in |
| Height | 1.7 in |
| Weight | 6.99 lbs |
| Manufacturer Warranty | |
| Warranty | 3 years |
| Environmental Parameters | |
| Min Operating Temperature | 14 °F |
| Max Operating Temperature | 131 °F |
| Kit Content | |
| Kit Content | (2) x rack mount brackets ¦ (1) x serial cable ¦ (1) x IR transmitter |
| Terminals | |
| Terminals | (5) x HDMI input - 19 pin HDMI Type A ¦ (2) x VGA input - 15 pin HD D-Sub (HD-15) ¦ (1) x HDBaseT input - RJ-45 ¦ (1) x DisplayPort input - 20 pin DisplayPort ¦ (1) x HDBaseT output - RJ-45 ¦ (1) x HDMI output - 19 pin HDMI Type A ¦ (4) x audio line-in - mini-phone stereo 3.5 mm ¦ (1) x audio line-in - terminal block ¦ (1) x audio line-in / microphone - terminal block ¦ (1) x audio output - terminal block ¦ (1) x infrared input - mini-phone 3.5 mm ¦ (1) x infrared output - mini-phone 3.5 mm ¦ Serial - terminal block |
| Studio & Production Equipment | |
| Features | EDID support, HDCP 2.2 compliant, 4K60 4:2:0 signal support, Power Over HDBaseT (POH) suppport |
