2x1 switcher / scaler / HDBaseT converter
| Main Specifications | |
|---|---|
| Product Description | SIIG HDMI / VGA 2x1 HDBaseT 4K Scaler Switcher 2x1 switcher / scaler / HDBaseT converter |
| Type | 2x1 switcher / scaler / HDBaseT converter |
| Dimensions (WxDxH) | 7.7 in - 3.9 in - 0.9 in |
| Weight | 10.69 oz |
| Manufacturer Warranty | 3 years |
| General | |
| Type | 2x1 switcher / scaler / HDBaseT converter |
| Width | 7.7 in |
| Depth | 3.9 in |
| Height | 0.9 in |
| Weight | 10.69 oz |
| Manufacturer Warranty | |
| Warranty | 3 years |
| Power | |
| Power Consumption | 8 Watt |
| Low Voltage Power | DC 12 V |
| Environmental Parameters | |
| Min Operating Temperature | 14 °F |
| Max Operating Temperature | 104 °F |
| Kit Content | |
| Kit Content | (1) x power adapter ¦ (2) x rack mount brackets ¦ (1) x serial cable |
| Terminals | |

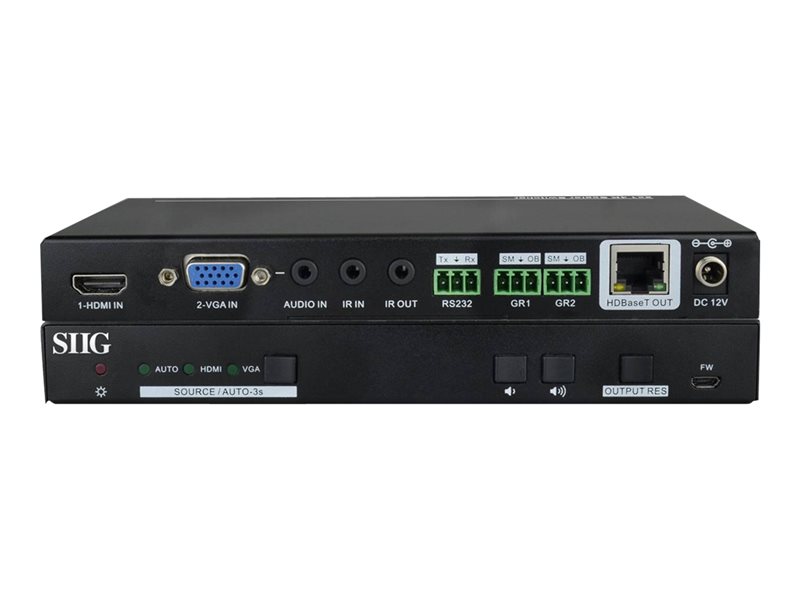

| Terminals | (1) x HDMI input - 19 pin HDMI Type A ¦ (1) x VGA input - 15 pin HD D-Sub (HD-15) ¦ (1) x audio line-in - mini-phone stereo 3.5 mm ¦ (1) x HDBaseT output - RJ-45 ¦ (1) x serial - terminal block - RS-232 ¦ (1) x infrared input - mini-phone 3.5 mm ¦ (1) x infrared output - mini-phone 3.5 mm |
| Studio & Production Equipment | |
| Features | EDID support, HDCP 2.2 compliant, 4K60 4:2:0 signal support, Power Over HDBaseT (POH) suppport |
