A/V switcher / HDBaseT transmitting system
| Main Specifications | |
|---|---|

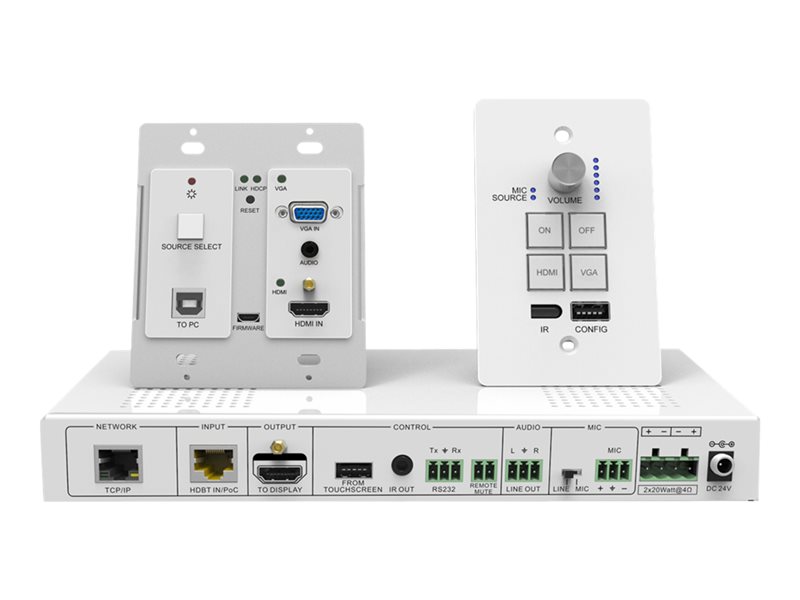

| Product Description | SIIG Wallplate HDMI/VGA HDBaseT Kit A/V switcher / HDBaseT transmitting system |
| Type | A/V switcher / HDBaseT transmitting system |
| Manufacturer Warranty | 3 years |
| General | |
| Type | A/V switcher / HDBaseT transmitting system |
| Manufacturer Warranty | |
| Warranty | 3 years |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 10 - 90% |
| Kit Content | |
| Kit Content | (1) x audio/video switcher / over IP transmitter ¦ (1) x HDBaseT receiver ¦ (1) x control panel |
| Terminals | |
| Terminals | (1) x VGA input - 15 pin HD D-Sub (HD-15) ¦ (1) x HDMI input - 19 pin HDMI Type A ¦ (1) x audio line-in - mini-phone stereo 3.5 mm ¦ (1) x HDBaseT output - RJ-45 ¦ (1) x USB - 4 pin USB type B ¦ (1) x HDBaseT input - RJ-45 ¦ (1) x network - RJ-45 ¦ (1) x DisplayPort output - 20 pin DisplayPort ¦ (1) x infrared output - mini-phone 3.5 mm ¦ (1) x audio line-out - terminal block - stereo ¦ (1) x audio line-in / microphone - terminal block - stereo ¦ (1) x speakers output - terminal block - stereo |
| Studio & Production Equipment | |
| Features | EDID support, built-in 2 x 20 watts audio amplifier, 1080p60 support, HDCP 1.4 compliant |
