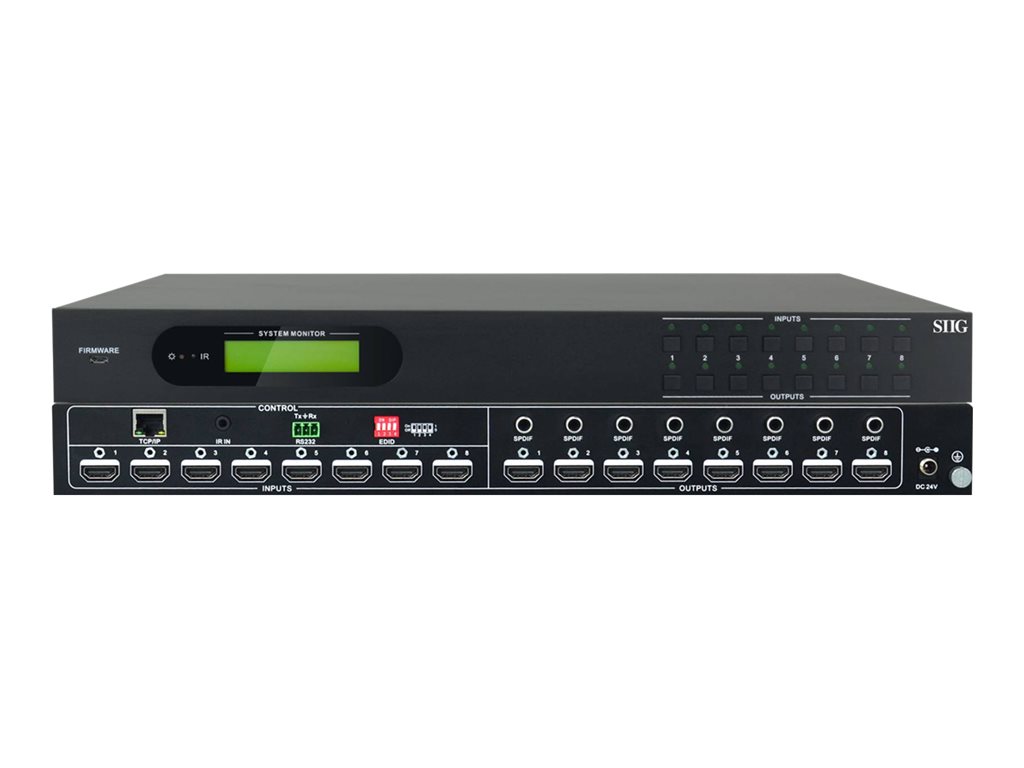

8x8 matrix switcher / audio disembedder
| Main Specifications | |
|---|---|
| Product Description | SIIG CE-H23X11-S1 8x8 matrix switcher / audio disembedder |
| Type | 8x8 matrix switcher / audio disembedder |
| Dimensions (WxDxH) | 17.2 in - 9.3 in - 1.7 in |
| Weight | 4.01 lbs |
| Manufacturer Warranty | 3 years |
| General | |
| Type | 8x8 matrix switcher / audio disembedder |
| Width | 17.2 in |
| Depth | 9.3 in |
| Height | 1.7 in |
| Weight | 4.01 lbs |
| Manufacturer Warranty | |
| Warranty | 3 years |
| Power | |
| Low Voltage Power | DC 24 V |
| Environmental Parameters | |
| Min Operating Temperature | 14 °F |
| Max Operating Temperature | 131 °F |
| Humidity Range Operating | 10 - 90% |
| Kit Content | |
| Kit Content | (1) x power adapter ¦ (1) x IR remote control ¦ (1) x IR receiver ¦ (1) x serial cable ¦ (2) x rack mount brackets |
| Terminals | |
| Terminals | (8) x HDMI input ¦ (4) x HDMI output ¦ (8) x SPDIF output - RCA ¦ (1) x network - RJ-45 ¦ (1) x serial - terminal block - RS-232 ¦ (1) x infrared input - mini-phone 3.5 mm |
| Studio & Production Equipment | |
| Features | EDID support, HDCP 2.2 compliant, built-in LCD, HDR (High Dynamic Range) support, 4K60 4:4:4 signal support |
