Mini PC Core i3 5005U - RAM 4 GB - HDD 1 TB - HD Graphics 5500 - Gigabit Ethernet - monitor: none
| Main Specifications | |
|---|---|
| Product Description | Intel Next Unit of Computing Kit NUC5i3RYHSN - mini PC Core i3 5005U 2 GHz - 4 GB - HDD 1 TB |
| Type | Personal computer - mini PC |
| Processor | Intel Core i3 (5th Gen) 5005U / 2 GHz (Dual-Core) |
| Cache Memory | 3 MB |
| Cache Per Processor | 3 MB |
| RAM | 4 GB (installed) / 16 GB (max) - DDR3 SDRAM |
| Storage Controller | SATA (SATA 6Gb/s) |
| Hard Drive | HDD 1 TB - SATA 6Gb/s |
| Optical Storage | No optical drive |
| Graphics Controller | Intel HD Graphics 5500 |
| Audio Output | 7.1 channel surround |
| Networking | 1GbE, 802.11a, 802.11b/g/n, Wi-Fi 5, Bluetooth 4.2 |
| Power | DC 12 - 19 V |
| Dimensions (WxDxH) | 4.5 in x 4.4 in x 1.9 in |
| General | |
| Type | Personal computer |
| Product Form Factor | Mini PC |
| Built-in Devices | Infrared receiver |
| Expansion / Connectivity | |
| Bays | 1 (total) / 0 (free) x internal 2.5" |
| Slots | 1 (total) / 1 (free) x M.2 Card - 2242/2260/2280 |

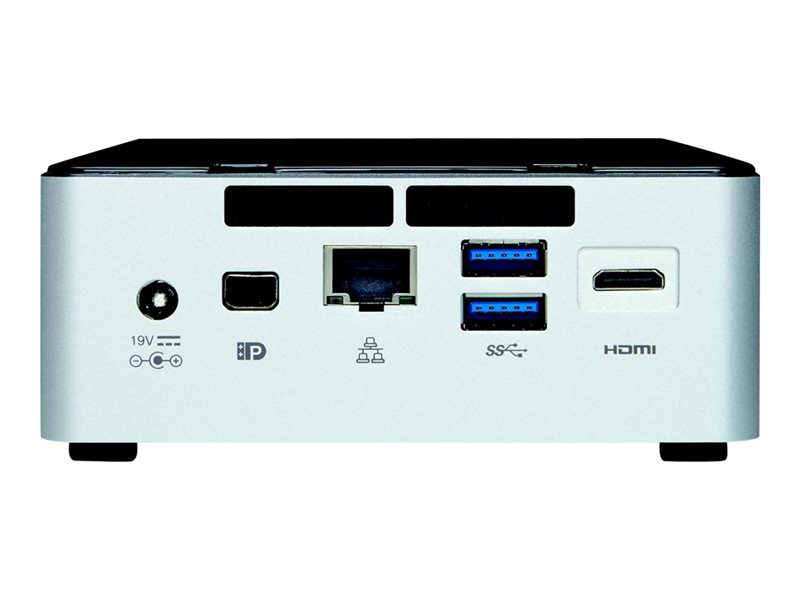

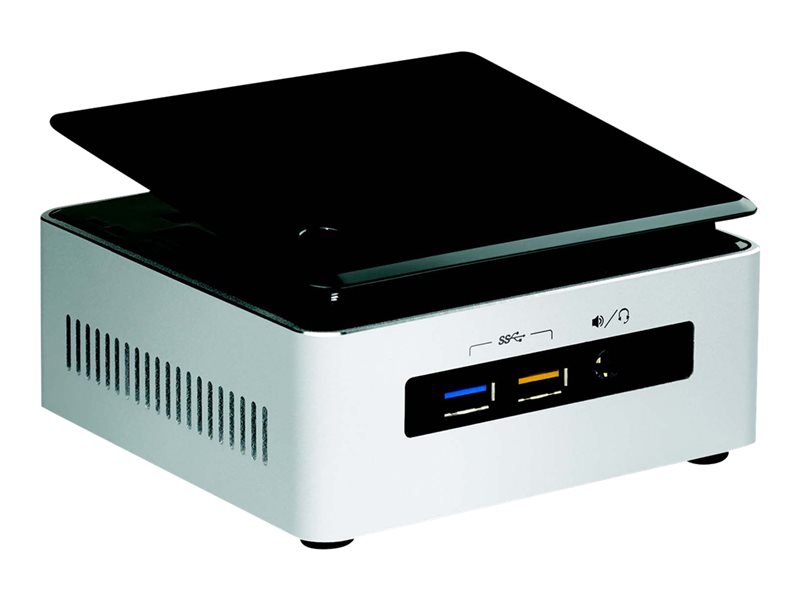

| Interfaces | 4 x USB 3.1 Gen 1 - Type A (2 front, 2 rear) (one of them is charging) ¦ 1 x Mini-HDMI ¦ 1 x Mini DisplayPort ¦ 1 x LAN (Gigabit Ethernet) - RJ-45 ¦ 1 x headphones/microphone - mini-jack (1 in front) |
| Miscellaneous | |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |
| Compliant Standards | EN55022, ICES-003, EN55024, CISPR 22, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, WEEE, FCC CFR47 Part 15 B, VCCI V-3, Directive 2002/96/EC, VCCI V-4, Directive 2011/65/EU, KN22, KN24, China RoHS, CNS 13438, FCC CFR47 Part 15 A, CAN/CSA-C22.2 No. 60950-1 |
| RAM | |
| Installed Size | 4 GB (installed) / 16 GB (max) |
| Technology | DDR3 SDRAM |
| Rated Memory Speed | 1600 MHz |
| Form Factor | SO-DIMM 204-pin |
| Slots | 2 (total) / 0 (empty) |
| Features | Dual channel memory architecture |
| Configuration Features | 2 x 2 GB |
| Networking | |
| Wireless LAN Supported | Yes |
| Wireless NIC | Intel Dual Band Wireless-AC 7265 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 4.2 |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 4.2 |
| Power | |
| Device Type | Power adapter |
| Voltage Required | DC 12 - 19 V |
| Power Provided | 65 watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Storage Controller | |
| Type | 2 x SATA |
| Controller Interface Type | SATA 6Gb/s |
| Cache Memory | |
| Installed Size | 3 MB |
| Cache Per Processor | 3 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | Intel HD Graphics 5500 |
| Video Interfaces | HDMI, DisplayPort |
| Audio Output | |
| Sound Output Mode | 7.1 channel surround |
| Compliant Standards | High Definition Audio |
| Hard Drive | |
| Type | HDD |
| Capacity | 1 x 1 TB |
| Interface Type | SATA 6Gb/s |
| Dimensions & Weight | |
| Width | 4.5 in |
| Depth | 4.4 in |
| Height | 1.9 in |
| Processor / Chipset | |
| CPU | Intel Core i3 (5th Gen) 5005U |
| Clock Speed | 2 GHz |
| Number of Cores | Dual-Core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| CPU Upgradability | Not upgradable |
