Network surveillance camera - dome - outdoor, indoor - vandal / weatherproof - color (Day&Night) - 2 MP - 1920 x 1080 - fixed iris - vari-focal - audio - LAN 10/100 - H.264, HEVC, H.265 - DC 12 V / AC 24 V / PoE
| Main Specifications | |
|---|---|

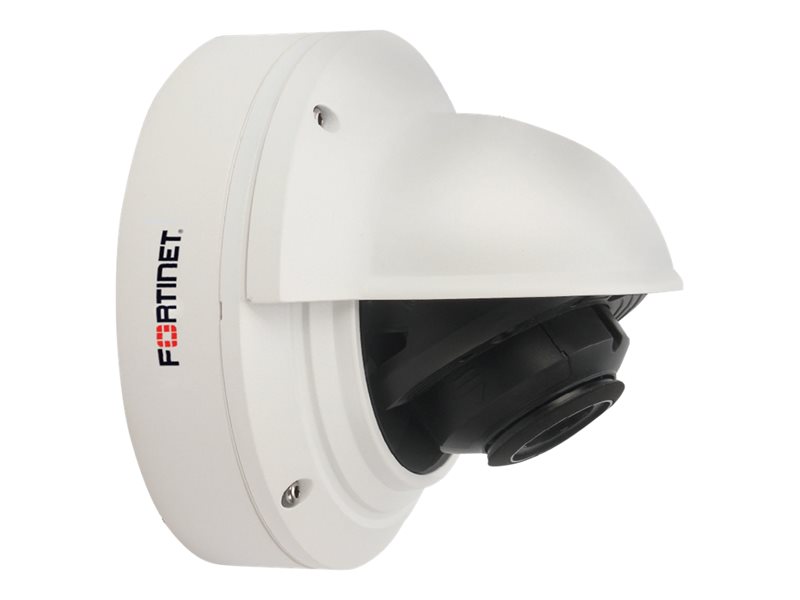

| Product Description | Fortinet FortiCam FD20B - network surveillance camera - dome |
| Device Type | Network surveillance camera - fixed - dome - outdoor, indoor - vandal / weatherproof |
| Audio | Yes: two-way audio capability |
| Camera Mount Type | Wall mount, ceiling mount |
| Dimensions (WxDxH) | 4.5 in x 4.5 in x 6.3 in |
| Weight | 34.04 oz |
| Connectivity Technology | Wired |
| Camera | Color - Day&Night |
| Optical Zoom | 4 x |
| Max Resolution | 1920 x 1080 |
| Frame Rate (max) | 25 frames per second |
| Optical Sensor Type | CMOS - 1/2.8" - 2 MP |
| Minimum Illumination | 0.01 lux - color - F1.4 ¦ 0.001 lux - B&W - F1.4 |
| Focal Length Control | Vari-focal |
| Focal Length | 2.8 mm - 12 mm |
| Lens Iris | F/1.4 - fixed iris |
| Interfaces | Ethernet 10Base-T/100Base-TX |
| Voltage | DC 12 V / AC 24 V / PoE |
| Features | Wide Dynamic Range (WDR), ONVIF V2.2 support |
| Environmental Parameters (operating) | 14 °F - 122 °F; 0 - 85% (non-condensing) relative humidity |
| General | |
| Device Type | Network surveillance camera |
| Audio Support | Yes: two-way audio capability |
| Form Factor | Dome |
| Camera Mount Type | Wall mount, ceiling mount |
| Connectivity Technology | Wired |
| Width | 4.5 in |
| Depth | 4.5 in |
| Height | 6.3 in |
| Weight | 34.04 oz |
| Expansion / Connectivity | |
| Ports | LAN/power - RJ-45 ¦ Audio line out ¦ Audio line in |
| Miscellaneous | |
| Compliant Standards | FCC Class B certified, IK10, IP66, IEEE 802.3af |
| Power | |
| Power Requirements | DC 12 V / AC 24 V / PoE |
| Power Device | 9 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 14 °F |
| Max Operating Temperature | 122 °F |
| Relative Humidity (operating) | 0 - 85% (non-condensing) |
| Camera | |
| Type | Color - Day&Night - fixed - outdoor, indoor - vandal / weatherproof |
| Digital Video Format | H.264, HEVC, H.265 |
| Max Digital Video Resolution | 1920 x 1080 |
| Minimum Illumination | 0.01 lux - color - F1.4 ¦ 0.001 lux - B&W - F1.4 |
| Infrared LEDs | Yes |
| Infrared Distance | 98 ft |
| Video Capture | 1920 x 1080 @ 25 fps ¦ 1280 x 720 @ 25 fps |
| Features | Wide Dynamic Range (WDR), ONVIF V2.2 support |
| Lens Construction | |
| Type | Vari-focal |
| Optical Zoom | 4 x |
| Focal Length | 2.8 mm - 12 mm |
| Lens Iris | F/1.4 fixed iris |
| Horizontal Field of View (degree) | 33 - 108 |
| Vertical Field of View (degree) | 18 - 56 |
| Image Sensor | |
| Type | 2 MP CMOS 1/2.8" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | RTSP |
