Video intercom system - wired (LAN 10/100) - 1 camera(s) - PS CMOS
| Main Specifications | |
|---|---|

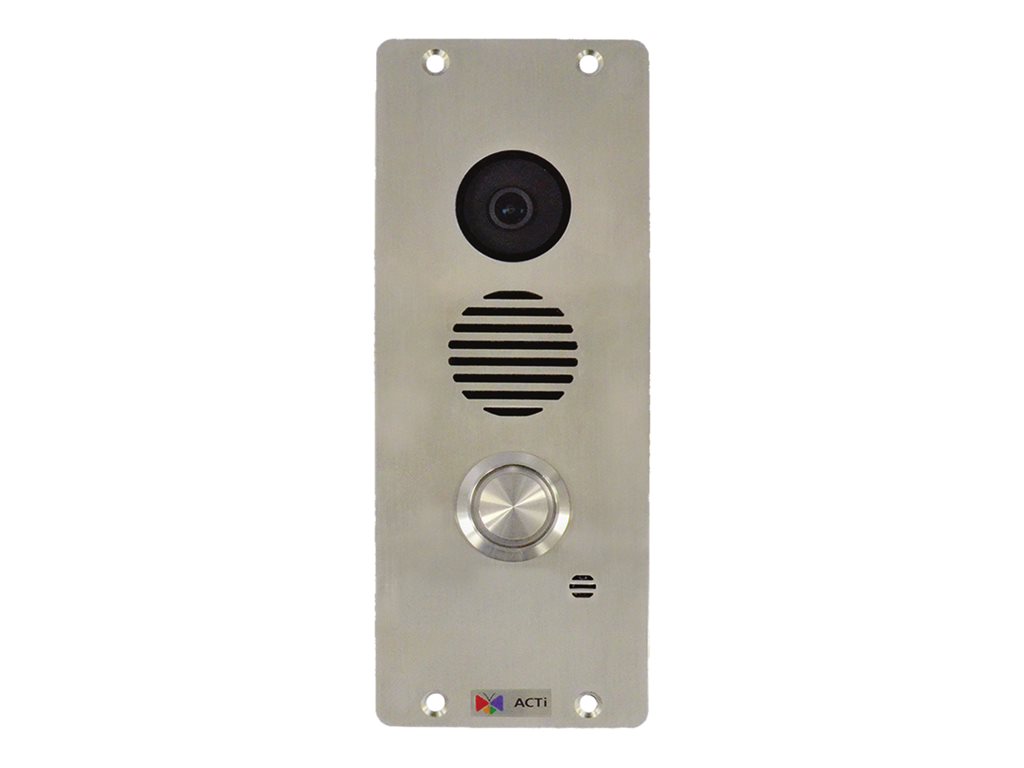

| Product Description | ACTi Q970 - video intercom system - wired (LAN 10/100) |
| System | Video intercom system - wired - Ethernet 10Base-T/100Base-TX |
| Video Server Frame Rate | 30 fps |
| Camera | 1 cameras - outdoor |
| Lens Mount | Board mount |
| Dimensions (WxDxH) | 3.2 in x 2.8 in x 8.3 in |
| Manufacturer Warranty | 3 years |
| General | |
| System | Video intercom system - wired |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Features | Built-in microphone, built-in speaker, e-mail notifications, ONVIF (Profile S), surface-mountable, doorbell button, IP address filtering, snapshot to FTP |
| Warranty | 3 years |
| Connections | |
| Network Port | 10/100Base-T (PoE Class 3) |
| Dimensions & Weight | |
| Width | 3.2 in |
| Depth | 2.8 in |
| Height | 8.3 in |
| Security DVR | |
| Frame Rate (Record) | 30 fps |
| Image Resolution | 1280x720, 1920x1080, 640x480, 800x600 |
| Compression Format | MJPEG, G.711, H.264 |
| Features | SD/SDHC/SDXC card slot |
| Video Server | |
| Frame Rate | 30 fps |
| Features | Two-way audio support, Wide Dynamic Range (WDR), privacy mask, triple video stream support, Superior Low Light Sensitivity (SLLS), 2D digital noise reduction, flickerless |
| Cameras | |
| Quantity | 1 cameras |
| Camera Type | Outdoor |
| Sensor | PS CMOS - 1/2.9" - 2.19 Megapixel |
| Field of View | 87.5° |
| Horizontal Resolution (TV Lines) | 1100 |
| Scanning System | Progressive |
| Signal-To-Noise Ratio | 52 dB |
| White Balance | Auto |
| Gain Control | Auto |
| Focal Length | 3.6 mm |
| Lens Mount | Board mount |
| Lens Iris | Fixed iris |
| Voltage | DC 12 V / PoE Class 3 |
| Power Consumption | 12.95 Watt |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 131 °F |
| Compliant Standards | IP66, IK10 |
