Network surveillance camera - PTZ - outdoor - vandal / weatherproof - color (Day&Night) - 3.2 MP - 2048 x 1536 - 720p, 1080p - board mount - motorized - 1450 TVL - audio - MJPEG, H.264, H.265 - AC 24 V / High PoE
| Main Specifications | |
|---|---|

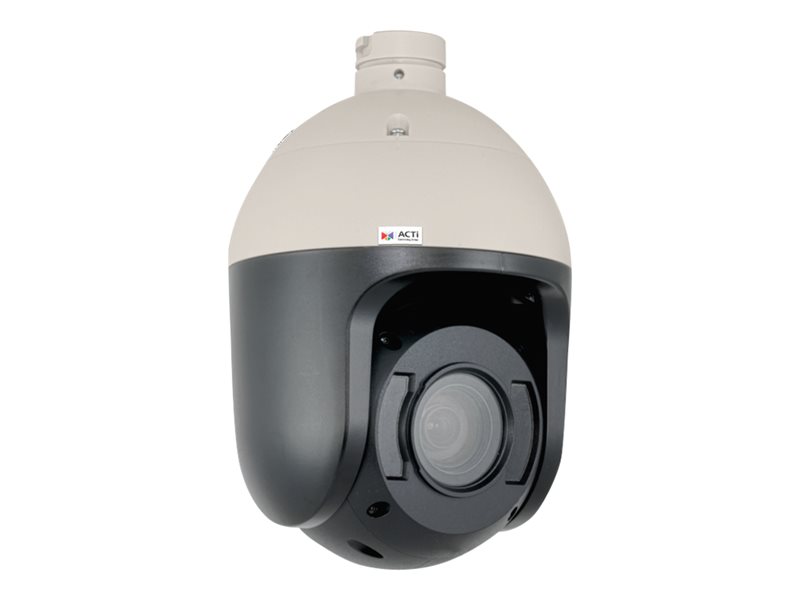

| Product Description | ACTi B915 - network surveillance camera |
| Device Type | Network surveillance camera - pan / tilt / zoom - outdoor - vandal / weatherproof |
| Audio | Yes: two-way audio capability |
| Dimensions (WxDxH) | 6.7 in x 6.7 in x 10.2 in |
| Connectivity Technology | Wired |
| Camera | Color - Day&Night - 1450 TVL |
| Optical Zoom | 36 x |
| Max Resolution | 2048 x 1536 |
| Frame Rate (max) | 60 frames per second |
| Motion Detection | Yes |
| Video Modes | 720p, 1080p |
| Optical Sensor Type | PS CMOS - 1/2.8" - 3.2 MP |
| Minimum Illumination | 0.1 lux - color - F1.55 - 30 IRE ¦ 0 lux - B&W - F1.55 - infrared LEDs on |
| Focal Length Control | Motorized zoom |
| Focal Length | 4.6 mm - 165.6 mm |
| Lens Mounting | Board mount |
| Focus Adjustment | Automatic |
| Lens Iris | F/1.55-5.0 (DC) |
| Panning Range (degree) | 360 |
| Tilting Range (degree) | -20 to +200 |
| Voltage | AC 24 V / High PoE |
| Features | Sharpness control, white balance, saturation control, brightness control, contrast control, automatic electronic shutter, heater, face detection, built-in cooling fan, infrared cut filter, Privacy Mask Function, Digital Image Stabilization (DIS), text stamp, smoke detector, tamper-detection, password protection, dehumidifier, triple video stream, Superior Low Light Sensitivity (SLLS), shock detection, flickerless, adaptive IR auto adjustment, Variable Bitrate (VBR), Constant Bitrate (CBR), Defog, auto gain control, ONVIF (Profile S) support, ONVIF (Profile G) support, 2D Digital Noise Reduction Technology, people counting, Heat Map, Line Crossing Detection, Directional Motion Detection, IP address filtering, 3D digital noise reduction (DNR), Extreme WDR, firmware upgradable, sound detection, object line counting, object based motion detection, object enter area detection, missing object detection, unattended object detection, Automatic License Plate Recognition, Dwell Time, People Queue Detection |
| Manufacturer Warranty | 3-year warranty |
| Environmental Parameters (operating) | -40 °F - 131 °F |
| General | |
| Device Type | Network surveillance camera |
| Audio Support | Yes: two-way audio capability |
| Audio Formats | G.711 |
| Connectivity Technology | Wired |
| Width | 6.7 in |
| Depth | 6.7 in |
| Height | 10.2 in |
| Expansion / Connectivity | |
| Ports | LAN/power - RJ-45 ¦ Audio line in - 3.5 mm jack ¦ Audio line out - 3.5 mm jack |
| Supported Memory Cards | microSDHC Card, microSDXC Card |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Included Accessories | PoE injector |
| Compliant Standards | UL, FCC, NEMA Type 4X, IK10, IP66 |
| Power | |
| Power Requirements | AC 24 V / High PoE |
| Power Device | Power adapter 62 Watt |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 131 °F |
| Camera | |
| Type | Color - Day&Night - pan / tilt / zoom - outdoor - vandal / weatherproof |
| Digital Video Format | MJPEG, H.264, H.265 |
| Horizontal Resolution (TV Lines) | 1450 |
| Max Digital Video Resolution | 2048 x 1536 |
| Motion Detection | Yes |
| Video Modes | 720p, 1080p |
| Exposure Range | 1/5 sec - 1/64000 sec |
| Minimum Illumination | 0.1 lux - color - F1.55 - 30 IRE ¦ 0 lux - B&W - F1.55 - infrared LEDs on |
| Infrared LEDs | Yes |
| Infrared Distance | 492 ft |
| Video Capture | 1920 x 1080 @ 60 fps ¦ 1280 x 720 @ 60 fps ¦ 2048 x 1536 @ 30 fps ¦ 1280 x 960 @ 30 fps ¦ 800 x 600 @ 30 fps ¦ 640 x 480 @ 30 fps ¦ 320 x 240 @ 30 fps |
| Features | Sharpness control, white balance, saturation control, brightness control, contrast control, automatic electronic shutter, heater, face detection, built-in cooling fan, infrared cut filter, Privacy Mask Function, Digital Image Stabilization (DIS), text stamp, smoke detector, tamper-detection, password protection, dehumidifier, triple video stream, Superior Low Light Sensitivity (SLLS), shock detection, flickerless, adaptive IR auto adjustment, Variable Bitrate (VBR), Constant Bitrate (CBR), Defog, auto gain control, ONVIF (Profile S) support, ONVIF (Profile G) support, 2D Digital Noise Reduction Technology, people counting, Heat Map, Line Crossing Detection, Directional Motion Detection, IP address filtering, 3D digital noise reduction (DNR), Extreme WDR, firmware upgradable, sound detection, object line counting, object based motion detection, object enter area detection, missing object detection, unattended object detection, Automatic License Plate Recognition, Dwell Time, People Queue Detection |
| Lens Construction | |
| Type | Board mount - motorized zoom |
| Optical Zoom | 36 x |
| Focal Length | 4.6 mm - 165.6 mm |
| Lens Iris | F/1.55-5.0 (DC) |
| Focus Adjustment | Automatic |
| Horizontal Field of View (degree) | 2.35 - 57.6 |
| Vertical Field of View (degree) | 1.78 - 44.9 |
| Image Sensor | |
| Type | 3.2 MP PS CMOS 1/2.8" |
| Effective Pixels | 2065 x 1553 |
| Interfaces | |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP, RTSP, RTP, HTTPS, UPnP, IPv4, IPv6, Bonjour, RTCP, PPPoE, IGMP, QOS |
| Alarm Inputs Qty | 4 |
| Alarm Outputs Qty | 2 |
| Panning | |
| Range (degree) | 360 |
| Speed (degree/sec) | Up to 300 |
| Tilting | |
| Range (degree) | -20 to +200 |
| Speed (degree/sec) | Up to 150 |
