Switch - managed - 48 x 10/100/1000Base-T + 4 x 1 Gigabit / 10 Gigabit SFP+ - back to front airflow - rack-mountable
| Main Specifications | |
|---|---|

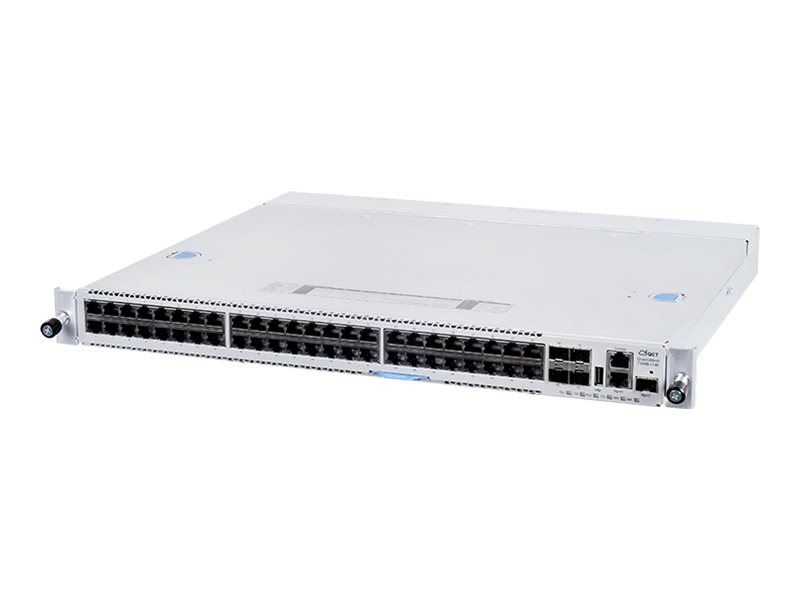

| Product Description | QCT QuantaMesh BMS T1048-LY4R - switch - 48 ports - managed - rack-mountable |
| Device Type | Switch - 48 ports - managed |
| Enclosure Type | Back to front airflow rack-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000Base-T + 4 x 1 Gigabit / 10 Gigabit SFP+ |
| Performance | Switching capacity: 176 Gbps ¦ Forwarding performance: 131 Mpps |
| MAC Address Table Size | 16K entries |
| Remote Management Protocol | SNMP 1, SNMP 2, SNMP 3, IPMI 1.5, IPMI 2.0, HTTPS, SMASH CLP |
| Features | WDT, event log, Open Network Install Environment |
| Power | AC 100-240 V (50/60 Hz) |
| Dimensions (WxDxH) | 17.3 in x 15.5 in x 1.7 in |
| Weight | 13.32 lbs |
| General | |
| Device Type | Switch - 48 ports - managed |
| Enclosure Type | Back to front airflow rack-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000Base-T + 4 x 1 Gigabit / 10 Gigabit SFP+ |
| Performance | Switching capacity: 176 Gbps ¦ Forwarding performance: 131 Mpps |
| MAC Address Table Size | 16K entries |
| Remote Management Protocol | SNMP 1, SNMP 2, SNMP 3, IPMI 1.5, IPMI 2.0, HTTPS, SMASH CLP |
| Features | WDT, event log, Open Network Install Environment |
| Processor | X Intel Atom |
| RAM | 8 GB |
| Expansion / Connectivity | |
| Interfaces | 48 x 10/100/1000Base-T RJ-45 ¦ 4 x Gigabit / 10Gbit LAN SFP+ ¦ 1 x 10/100/1000Base-T RJ-45 management ¦ 1 x 1000Base-X SFP management ¦ 1 x console RJ-45 ¦ 1 x USB 2.0 |
| Expansion Slots | microSD |
| Miscellaneous | |
| Included Accessories | 8 GB microSD Card |
| Rack Mounting Kit | Included |
| Compliant Standards | UL, cUL, CB, FCC |
| Power | |
| Power Device | Internal power supply |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Redundancy Scheme | 1+1 |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 68 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 0 - 90% RH |
| Dimensions & Weight | |
| Width | 17.3 in |
| Depth | 15.5 in |
| Height | 1.7 in |
| Weight | 13.32 lbs |
