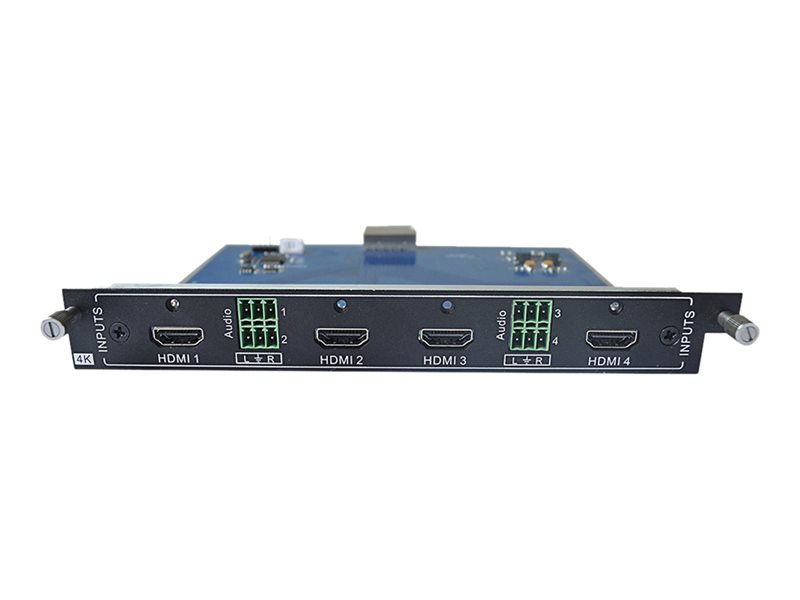

Expansion module - HDMI x 4 + audio x 4
| Main Specifications | |
|---|---|
| Product Description | KanexPro 4-Input HDMI card for Modular matrix with 4K - expansion module - HDMI x 4 + audio x 4 |
| Device Type | Expansion module |
| Form Factor | Plug-in card |
| Ports | HDMI x 4 + audio x 4 |
| Data Link Protocol | HDMI |
| Data Transfer Rate | 10.2 Gbps |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Expansion module |
| Form Factor | Plug-in card |
| Expansion / Connectivity | |
| Interfaces | 4 x HDMI input - 19 pin HDMI Type A - female ¦ 4 x audio line-in - 3 pin Phoenix |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | Plug and Play, DDC |
| Networking | |
| Ports | HDMI x 4 + audio x 4 |
| Connectivity Technology | Wired |
| Data Link Protocol | HDMI |
| Data Transfer Rate | 10.2 Gbps |
| Features | 4K resolution support, 1080p resolution support, 3D support, 48-bit Deep Color support, 7.1 channel audio support, 2K resolution support, HDCP compliant, EDID Management, Lip Sync pass-through, x.v.Color support, Dolby Digital support, Dolby TrueHD support, DTS-HD support, 24-bit Deep Color support, 30-bit Deep Color support, 36-bit Deep Color support |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 20 - 90% (non-condensing) |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 15.87 oz |
