A/V switcher
| Main Specifications | |
|---|---|

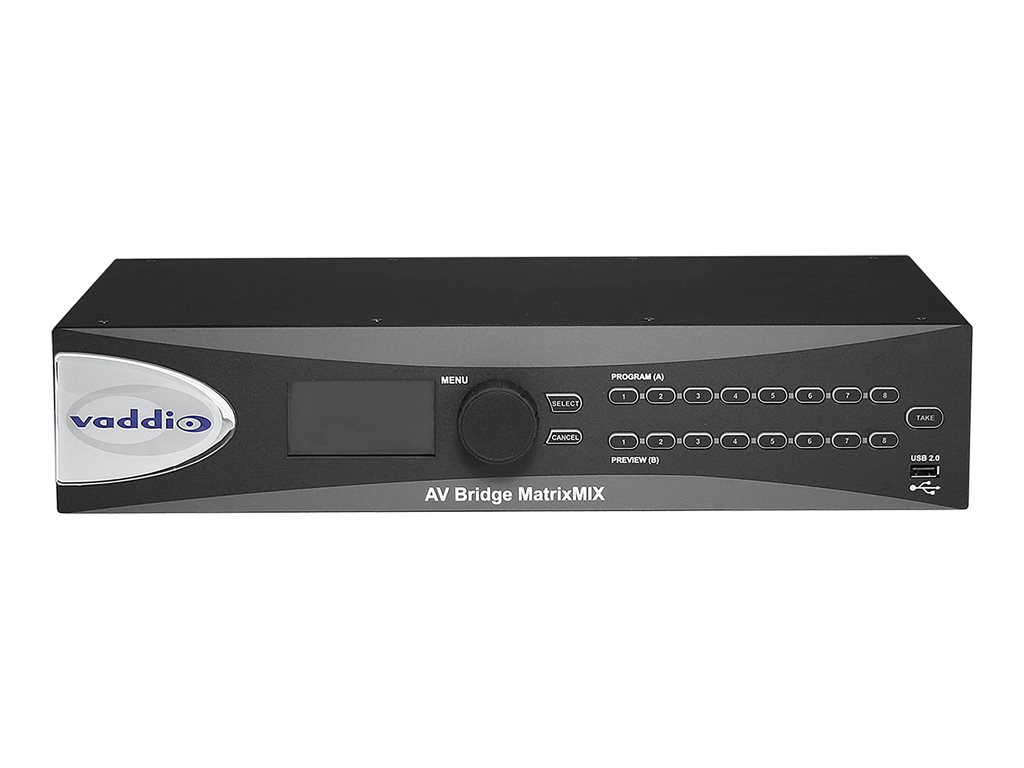

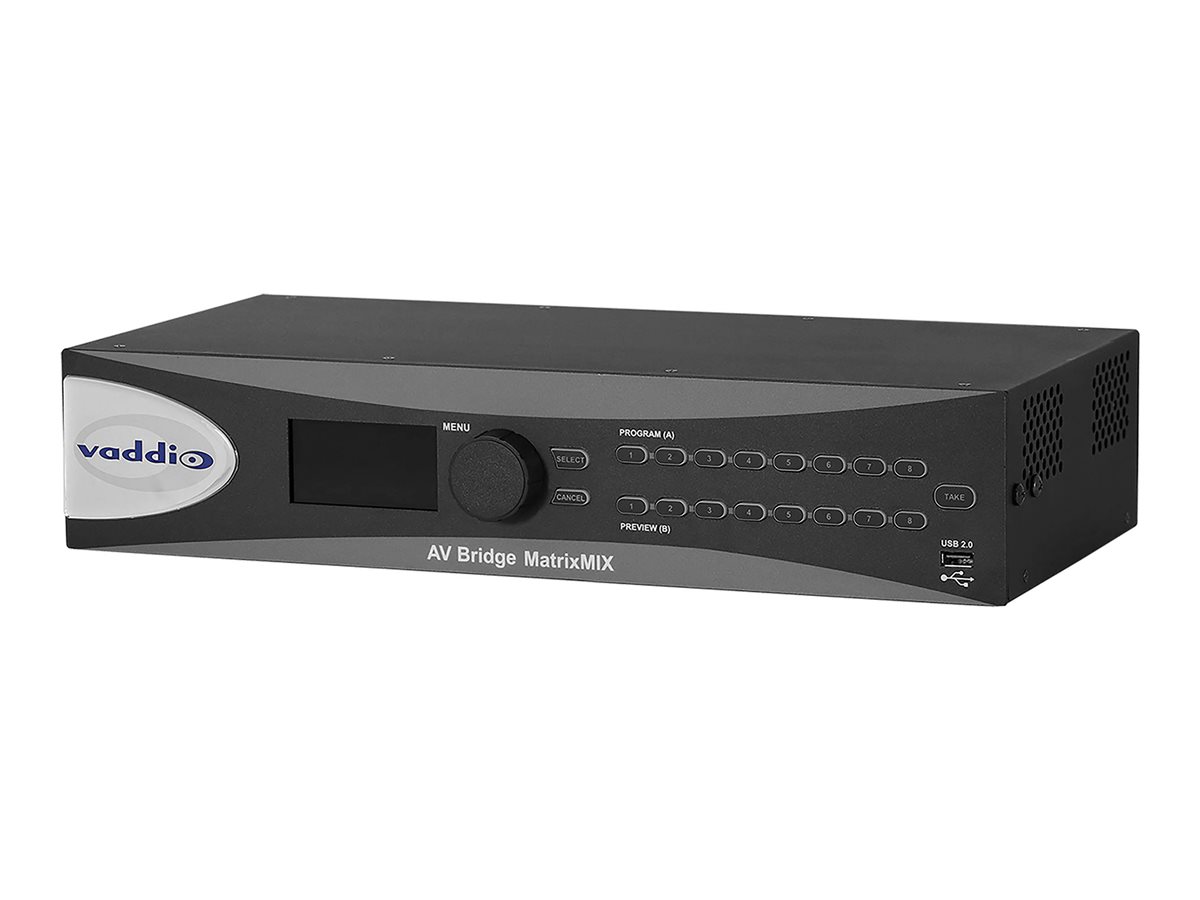

| Product Description | Vaddio AV Bridge MatrixMIX A/V switcher - TAA Compliant |
| Type | A/V switcher |
| TAA Compliant | Yes |
| Country Kits | North America |
| Dimensions (WxDxH) | 19 in - 9.2 in - 3.5 in |
| Weight | 9.15 lbs |
| Manufacturer Warranty | 3 years |
| General | |
| Type | A/V switcher |
| Country Kits | North America |
| Width | 19 in |
| Depth | 9.2 in |
| Height | 3.5 in |
| Weight | 9.15 lbs |
| Manufacturer Warranty | |
| Warranty | 3 years |
| Miscellaneous | |
| TAA Compliant | Yes |
| Power | |
| Low Voltage Power | DC 12 V |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 15 - 80% (non-condensing) |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 28 in |
| Shipping Depth | 14 in |
| Shipping Height | 10 in |
| Shipping Weight | 11 lbs |
| Kit Content | |
| Kit Content | (1) x power adapter ¦ (1) x USB-B to USB-A cable - 1.83 m ¦ (4) x 3-position Phoenix-style connectors ¦ (1) x 12-position Phoenix-style connector ¦ (2) x rack mount ears ¦ (1) x power cable |
| Terminals | |

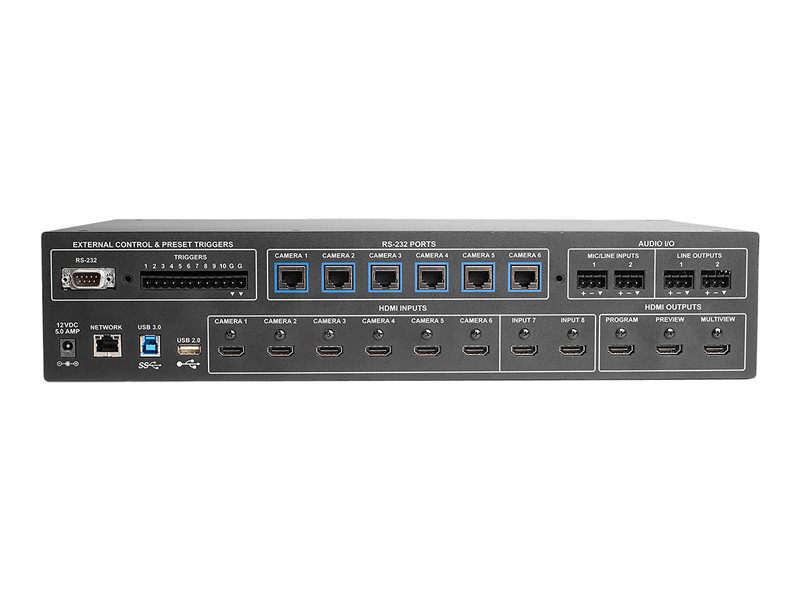

| Terminals | (2) x USB 2.0 - 4 pin USB type A ¦ (1) x USB 3.0 - 9 pin USB Type B ¦ (1) x network - RJ-45 ¦ (6) x serial - RJ-45 - RS-232 ¦ (8) x HDMI input - 19 pin HDMI Type A ¦ (3) x HDMI output - 19 pin HDMI Type A ¦ (2) x audio line-in / microphone - terminal block ¦ (2) x audio line-out - terminal block ¦ (10) x trigger - terminal block ¦ (1) x serial - 9 pin D-Sub (DB-9) - RS-232 |
| Studio & Production Equipment | |
| Features | HDCP compliant, picture-in-picture support, H.264 codec support, USB video/audio streaming, AutoMix support, multiview support, RTSP support, 2U rack-mountable, 20 - 20000 MHz frequency range, 48 kHz sampling rate, 1080p30 support, web control, phantom power |
