Video/audio switch - desktop
| Main Specifications | |
|---|---|

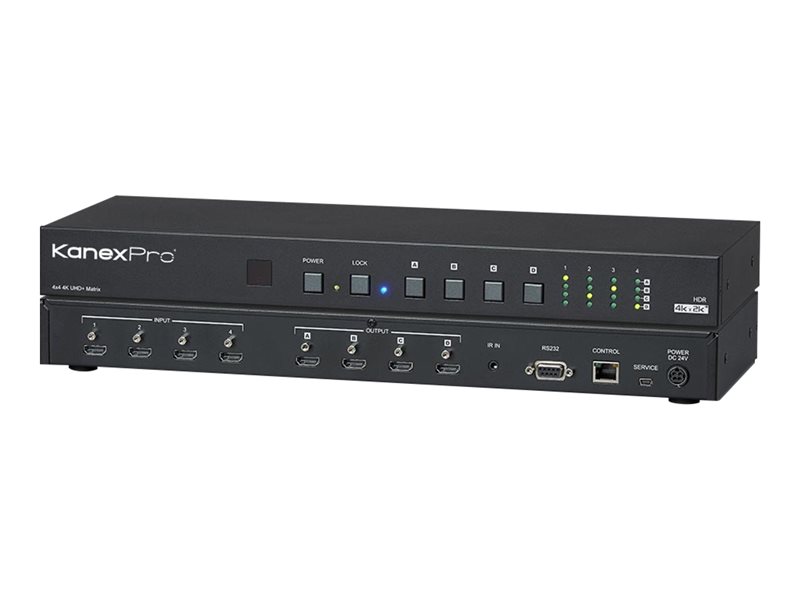

| Product Description | KanexPro HDMX44-18G 4x4 HDMI 2.0 Matrix Switcher with 4K/60Hz - video/audio switch |
| Device Type | Video/audio switch |
| Subtype | HDMI |
| Performance | Bandwidth: 18 Gbps |
| Features | 4K resolution support, 8KV ESD Protector (air-gap discharge), 4KV ESD Protector (contact discharge), metal housing, HDCP compliant, EDID Management, 48-bit Deep Color support, LPCM 7.1 support, firmware upgradable |
| Compliant Standards | HDCP 2.2, HDCP 1.4 |
| Dimensions (WxDxH) | 17.2 in x 6.3 in x 1.7 in |
| Weight | 4.56 lbs |
| Color | Black |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Video/audio switch |
| Enclosure Type | Desktop |
| Subtype | HDMI |
| Performance | Bandwidth: 18 Gbps |
| Max Resolution | 4096 x 2160 @ 60 Hz |
| Features | 4K resolution support, 8KV ESD Protector (air-gap discharge), 4KV ESD Protector (contact discharge), metal housing, HDCP compliant, EDID Management, 48-bit Deep Color support, LPCM 7.1 support, firmware upgradable |
| Compliant Standards | HDCP 2.2, HDCP 1.4 |
| Expansion / Connectivity | |
| Interfaces | 4 x HDMI input Type A ¦ 4 x HDMI output Type A ¦ 1 x mini-USB ¦ 1 x IrDA input ¦ 1 x serial (RS-232) ¦ 1 x management (LAN) RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years |
| Miscellaneous | |
| Color | Black |
| Power | |
| Power Device | External power adapter |
| Power Provided | 24 V - 2.7 A |
| Power Consumption Operational | 21 watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 20 - 90% (non-condensing) |
| Min Storage Temperature | -4 °F |
| Max Storage Temperature | 140 °F |
| Dimensions & Weight | |
| Width | 17.2 in |
| Depth | 6.3 in |
| Height | 1.7 in |
| Weight | 4.56 lbs |
