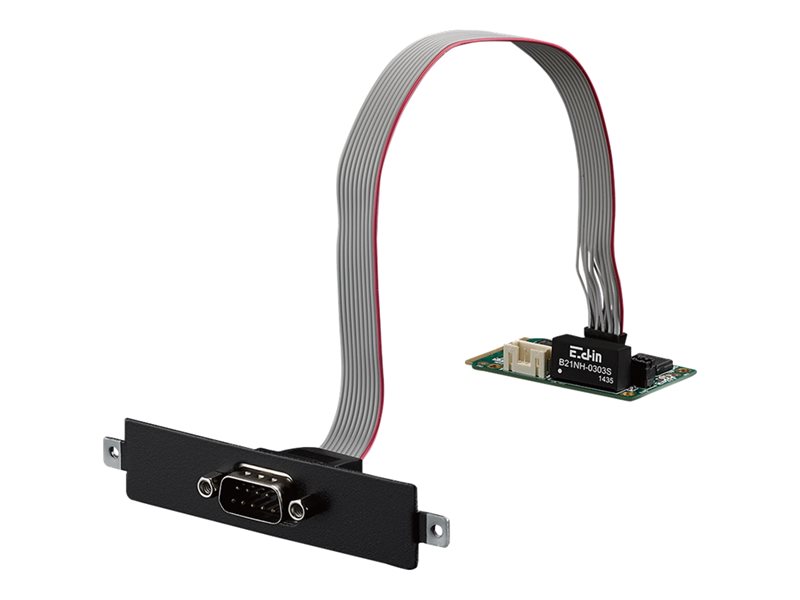

Serial adapter - USB - serial x 1
| Main Specifications | |
|---|---|
| Product Description | Advantech MOS-2220-Z1101E - serial adapter - USB - serial x 1 |
| Device Type | Serial adapter |
| Form Factor | Internal |
| Interface (Bus) Type | USB |
| Ports | Serial x 1 |
| Dimensions (WxDxH) | 2 in x 1.2 in x 0.5 in |
| Data Link Protocol | Serial |
| System Requirements | Microsoft Windows 2000/XP/Vista/7/8 (32 bit), Microsoft Windows 2000/XP/Vista/7/8 (64 bits), Linux 2.6.32 or later, Microsoft Windows CE 5.0, Microsoft Windows CE 6.0 |
| General | |
| Device Type | Serial adapter |
| Form Factor | Internal |
| Interface (Bus) Type | USB |
| Expansion / Connectivity | |
| Interfaces | 1 x serial - 9 pin D-Sub (DB-9) |
| Miscellaneous | |
| Compliant Standards | RoHS, FCC |
| Networking | |
| Ports | Serial x 1 |
| Data Link Protocol | Serial |
| Status Indicators | Power, link/activity |
| Software / System Requirements | |
| OS Required | Microsoft Windows 2000/XP/Vista/7/8 (32 bit), Microsoft Windows 2000/XP/Vista/7/8 (64 bits), Linux 2.6.32 or later, Microsoft Windows CE 5.0, Microsoft Windows CE 6.0 |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 185 °F |
| Dimensions & Weight | |
| Width | 2 in |
| Depth | 1.2 in |
| Height | 0.5 in |
