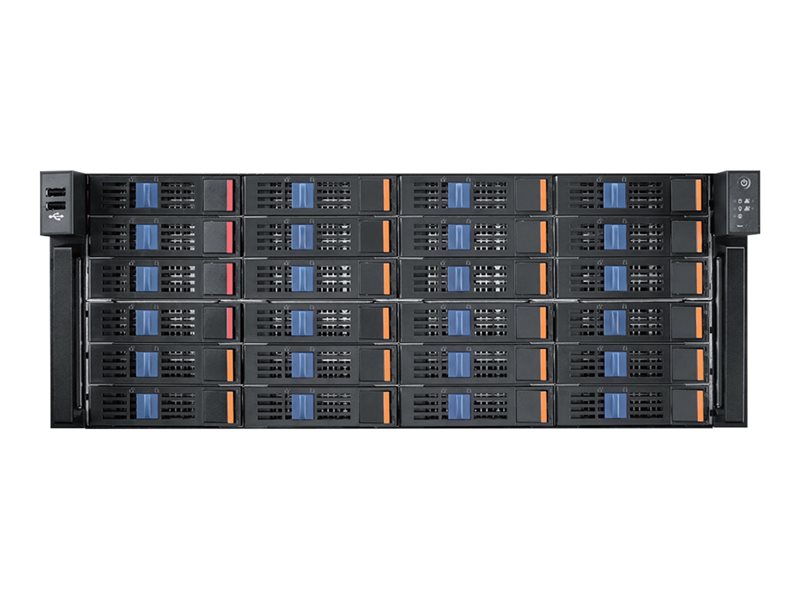

Rack-mountable - 4U - extended ATX 800 Watt
| Main Specifications | |
|---|---|
| Product Description | Advantech HPC-8424 - rack-mountable - 4U - extended ATX |
| Product Type | System cabinet |
| Form Factor | Rack-mountable - 4U |
| I/O Connectors | 2 x USB 2.0 |
| Supported Motherboards | ATX, microATX, Extended ATX |
| Power Device | Power supply 800 Watt |
| Dimensions (WxDxH) | 17.2 in x 24.4 in x 6.9 in |
| Weight | 68.34 lbs |
| General | |
| Form Factor | Rack-mountable - 4U |
| Max Mainboard Size | Extended ATX |
| Supported Motherboards | ATX, microATX, Extended ATX |
| Front Accessible Bays Qty | 24 |
| Hot-Swap Bays Qty | 2 |
| Cooling System | 80 mm fan x 4 / Pulse-width modulation (PWM) support |
| Expansion / Connectivity | |
| Expansion Bays | 24 (total) / 24 (free) x front accessible - 2.5" / 3.5" shared ¦ 2 (total) / 2 (free) x rear accessible - 2.5" |
| Expansion Slots | 6 |
| Interfaces | 2 x USB 2.0 |
| Miscellaneous | |
| Compliant Standards | FCC |
| Power | |
| Power Device | Power supply |
| Power Provided | 800 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 10 - 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 17.2 in |
| Depth | 24.4 in |
| Height | 6.9 in |
| Weight | 68.34 lbs |
