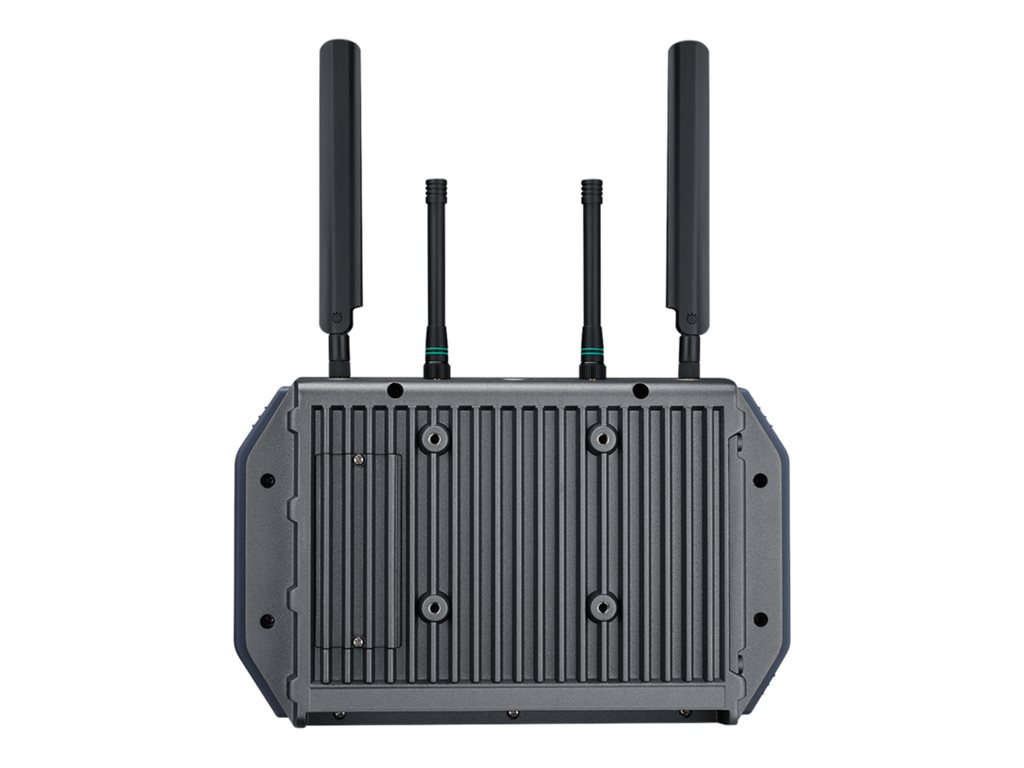

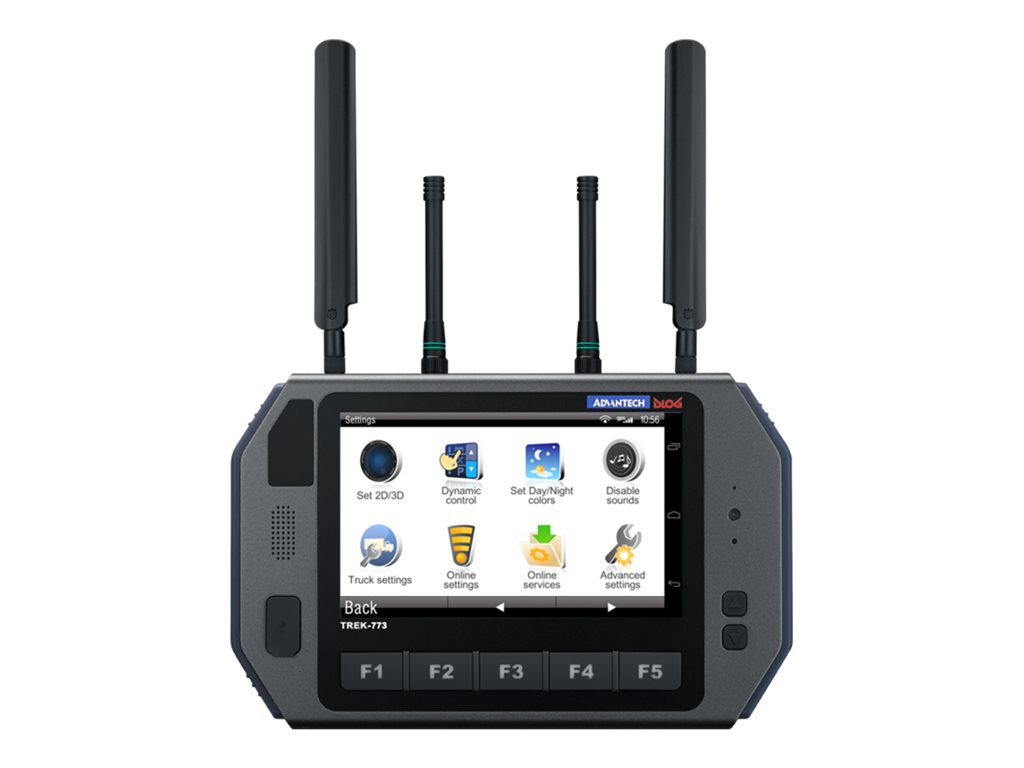

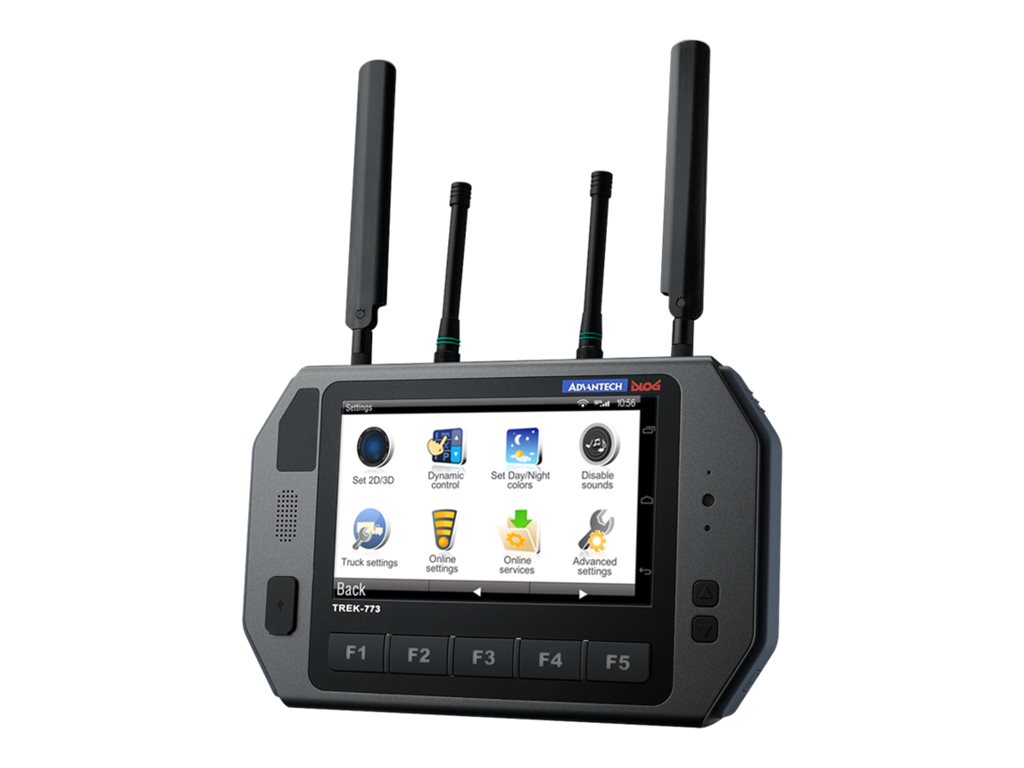

Rugged - tablet - Intel Atom - E3827 - 2 GB RAM - 7" touchscreen 800 x 480 - Gigabit Ethernet - NFC
| Main Specifications | |
|---|---|
| Product Description | Advantech DLoG TREK-773 - 7" - Intel Atom - E3827 - 2 GB RAM |
| Product Type | Tablet - no keyboard - rugged |
| Processor | Intel Atom E3827 / 1.75 GHz |
| Memory | 2 GB DDR3L |
| Display | 7" touchscreen 800 x 480 / WVGA |
| Input Device | 5 programmable buttons |
| Networking | NFC, Gigabit Ethernet |
| Features | Ambient light sensor, G-sensor |
| Dockable | Yes |
| Dimensions (WxDxH) | 10.1 in x 6.3 in x 2.2 in |
| Weight | 4.85 lbs |
| General | |
| Product Type | Tablet - no keyboard - rugged |
| Memory | |
| RAM | 2 GB |
| Max RAM Supported | 4 GB |
| Technology | DDR3L SDRAM |
| Speed | 1333 MHz |
| Miscellaneous | |
| Integrated Options | Ambient light sensor, G-sensor |
| Dockable | Yes |
| Features | Wake on ring |
| Included Accessories | Power adapter |
| Compliant Standards | CB, CCC, FCC, ISO 14443 type A, MIL-STD 810G, ISO 14443 type B, ISO 15693, E Mark, IP54, IK06, SAE J1455, EN 50155, ISO 7637-2, cUL+UL, SAE J1113, EN 60721-3, J1939, ISO 15765 |
| Environmental Parameters | |
| Min Operating Temperature | -22 °F |
| Max Operating Temperature | 140 °F |
| Shock Tolerance (operating) | 100 g @ 6 ms |
| Display | |
| Type | 7" |
| Touchscreen | Yes |
| Resolution | 800 x 480 (WVGA) |
| Widescreen | Yes |
| Image Brightness | 1000 cd/m² |
| Features | Resistive touch screen |
| Communications | |
| Wireless | NFC |
| Network Interface | Gigabit Ethernet |
| Dimensions & Weight | |
| Dimensions (WxDxH) | 10.1 in x 6.3 in x 2.2 in |
| Weight | 4.85 lbs |
| Processor / Chipset | |
| CPU | Intel Atom E3827 / 1.75 GHz |
| Number of Cores | Dual-Core |
| Input | |
| Type | 5 programmable buttons |
| Features | Green LED backlighting |
| Connections & Expansion | |
| Interfaces Details | LAN ¦ Serial (RS-232) (docking and charging) ¦ USB 3.0 |
| Memory Card Reader | Yes (SD Card, CompactFlash) |
