For Vaddio HDBaseT Cameras - video/audio/serial/power/data extender - HDBaseT - up to 328 ft
| Main Specifications | |
|---|---|
| Product Description | Vaddio OneLINK AV Bridge For HDBaseT Conference Cameras - Streaming Audio and Video - for Vaddio HDBaseT Cameras - video/audio/serial/power/data extender - HDBaseT |
| Device Type | Video/audio/serial/power/data extender |
| Form Factor | External |
| Localization | North America |
| Data Link Protocol | HDBaseT |
| Remote Management Protocol | Telnet, HTTP |
| Max Transfer Distance | 328 ft |
| Dimensions (WxDxH) | 8.4 in x 6 in x 1.7 in |
| Weight | 28.22 oz |
| Designed For | Vaddio DocCAM 20 HDBT; RoboSHOT 12 HDBT, 20 UHD, 30 HDBT |
| General | |
| Device Type | Video/audio/serial/power/data extender |
| Form Factor | External |
| Localization | North America |
| Expansion / Connectivity | |

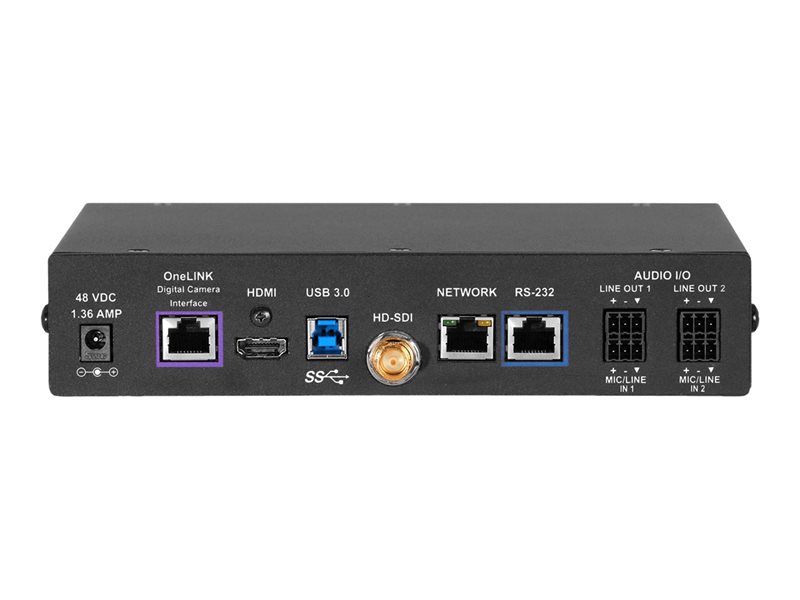

| Interfaces | 1 x HDMI (output) - 19 pin HDMI Type A ¦ 1 x RS-232 - RJ-45 ¦ 1 x HDBaseT - RJ-45 ¦ 1 x USB 3.0 - Type B ¦ 1 x HD-SDI output ¦ 2 x audio (output) - 3 pin terminal block ¦ 2 x audio (input) - 3 pin terminal block |
| Miscellaneous | |
| Included Accessories | 4 x 3-position 3.5 mm Phoenix connectors |
| Cables Included | 1 x SuperSpeed USB cable - 6 ft ¦ 1 x serial adapter |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | HDBaseT |
| Remote Management Protocol | Telnet, HTTP |
| Max Resolution | 1080p @ 60 Hz |
| Max Transfer Distance | 328 ft |
| Status Indicators | Link/activity, USB, connection status |
| Features | Manageable, reset button, Full HD (1920 x 1080) streaming video support, echo cancellation, built-in H.264 encoder |
| Power | |
| Power Device | External power adapter |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 15 - 80% (non-condensing) |
| Dimensions & Weight | |
| Width | 8.4 in |
| Depth | 6 in |
| Height | 1.7 in |
| Weight | 28.22 oz |
| Compatibility Information | |
| Designed For | Vaddio DocCAM 20 HDBT ¦ Vaddio RoboSHOT 12 HDBT, 20 UHD, 30 HDBT |
