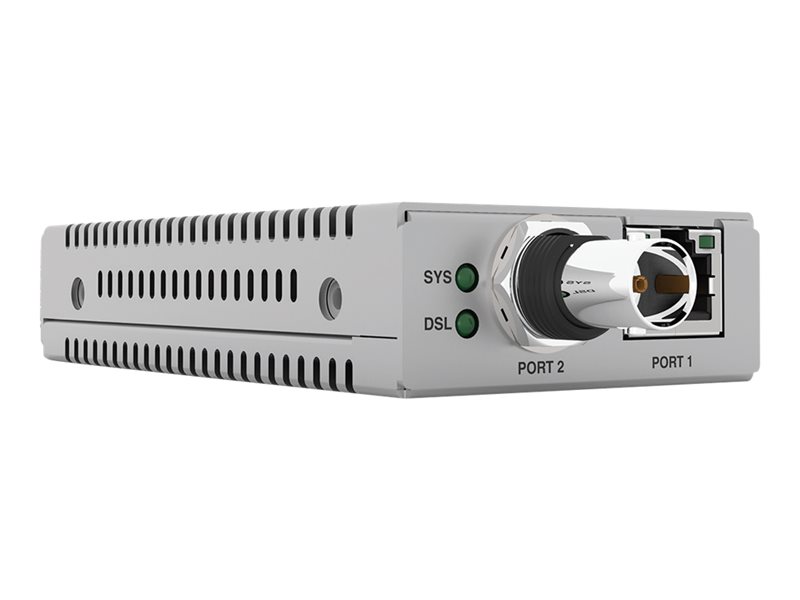

Network extender - Ethernet over VDSL2, 1GbE - 1000Base-T, 100Base-TX, 10Base-T - RJ-45 / BNC - up to 1.9 miles
| Main Specifications | |
|---|---|
| Product Description | Allied Telesis AT MMC6006 - network extender - 10Mb LAN, 100Mb LAN, Ethernet over VDSL2, 1GbE |
| Device Type | Network extender - RJ-45 / BNC |
| Form Factor | External |
| Cabling Type | 1000Base-T, 100Base-TX, 10Base-T |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, Ethernet over VDSL2, 1GbE |
| Max Transfer Distance | 1.9 miles |
| Power | AC 120/230 V |
| Dimensions (WxDxH) | 2 in x 3.9 in x 0.8 in |
| Weight | 7.05 oz |
| General | |
| Device Type | Network extender |
| Form Factor | External |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 1000Base-T - RJ-45 female ¦ 1 x VDSL2 - BNC female ¦ 1 x management |
| Miscellaneous | |
| Compliant Standards | UL 1950, CSA, EN55022 Class B, EN 60950, TUV, EN50082-1 |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 1000Base-T, 100Base-TX, 10Base-T |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, Ethernet over VDSL2, 1GbE |
| Max Transfer Distance | 1.9 miles |
| Status Indicators | Status, link/activity, port duplex mode, system, VDSL |
| Features | Full duplex mode, half duplex mode, auto-uplink (auto MDI/MDI-X) |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 2 watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 2 in |
| Depth | 3.9 in |
| Height | 0.8 in |
| Weight | 7.05 oz |
