Switch - L3 - rack-mountable
| Main Specifications | |
|---|---|

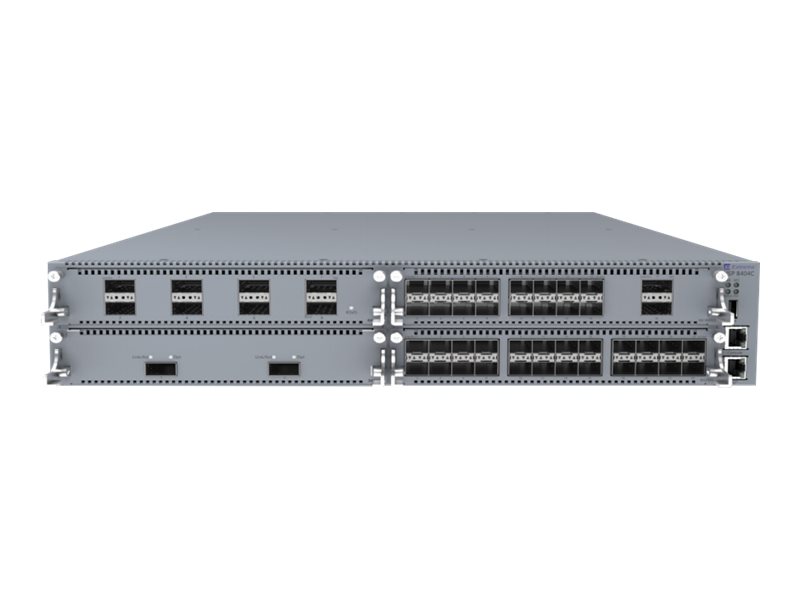

| Product Description | Extreme Networks Virtual Services Platform 8404C - switch - rack-mountable |
| Device Type | Switch - L3 |
| Enclosure Type | Rack-mountable |
| Performance | Switching fabric bandwidth: 2.56 Tbps ¦ Forwarding performance: 1.428 Mpps ¦ Latency: 480 ns |
| Capacity | Virtual interfaces (VLANs): 4059 ¦ ARP entries: 32000 ¦ Multiple Spanning Tree Protocol instances: 12 ¦ IP router interfaces: 506 ¦ IPv4 routes (static): 5000 ¦ RIP routes: 15488 ¦ OSPF instances: 500 ¦ OSPF routes: 15488 ¦ OSPF Areas: 80 ¦ BGP peers: 12 ¦ BGP routes: 15488 ¦ ECMP groups: 1000 ¦ IPv6 routes: 8000 ¦ IPv6 routes (static): 1000 ¦ IPv4 routes: 15488 ¦ ACL entries (ingress): 256 ¦ ACL entries (egress): 126 |
| MAC Address Table Size | 224000 entries |
| Jumbo Frame Support | 9600 bytes |
| Routing Protocol | Static IP routing, RIP, OSPF, VRRP, ECMP, IGMP, PIM-SM, BGP, PIM-SSM, IS-IS, OSPFv3 |
| Features | Full duplex mode, ARP support, VLAN support, STP support, IPv4 support, IPv6 support, VRF, MSTP support, QoS, fan tray, NAT support, PAT support, DCB, FCoE forwarding, LACP, port mirroring, SPB, VTEP support, 4 fans |
| Compliant Standards | IEEE 802.1Q, IEEE 802.1aq |
| Power | AC 120/230 V (50/60 Hz) |
| Power Redundancy | Optional |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Switch - L3 |
| Enclosure Type | Rack-mountable |
| Performance | Switching fabric bandwidth: 2.56 Tbps ¦ Forwarding performance: 1.428 Mpps ¦ Latency: 480 ns |
| Capacity | Virtual interfaces (VLANs): 4059 ¦ ARP entries: 32000 ¦ Multiple Spanning Tree Protocol instances: 12 ¦ IP router interfaces: 506 ¦ IPv4 routes (static): 5000 ¦ RIP routes: 15488 ¦ OSPF instances: 500 ¦ OSPF routes: 15488 ¦ OSPF Areas: 80 ¦ BGP peers: 12 ¦ BGP routes: 15488 ¦ ECMP groups: 1000 ¦ IPv6 routes: 8000 ¦ IPv6 routes (static): 1000 ¦ IPv4 routes: 15488 ¦ ACL entries (ingress): 256 ¦ ACL entries (egress): 126 |
| MAC Address Table Size | 224000 entries |
| Jumbo Frame Support | 9600 bytes |
| Routing Protocol | Static IP routing, RIP, OSPF, VRRP, ECMP, IGMP, PIM-SM, BGP, PIM-SSM, IS-IS, OSPFv3 |
| Features | Full duplex mode, ARP support, VLAN support, STP support, IPv4 support, IPv6 support, VRF, MSTP support, QoS, fan tray, NAT support, PAT support, DCB, FCoE forwarding, LACP, port mirroring, SPB, VTEP support, 4 fans |
| Compliant Standards | IEEE 802.1Q, IEEE 802.1aq |
| Expansion / Connectivity | |
| Expansion Slots | 4 (total) / 4 (free) x expansion slot |
| Installed Modules Qty (Max) | 0 (installed) / 4 (max) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Rack Mounting Kit | Optional |
| Compliant Standards | HIPAA |
| Power | |
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 1 |
| Max Supported Qty | 2 |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| Power Provided | 800 watt |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Software / System Requirements | |
| Software Included | Base Software License |
