Video extender - up to 12.4 miles
| Main Specifications | |
|---|---|

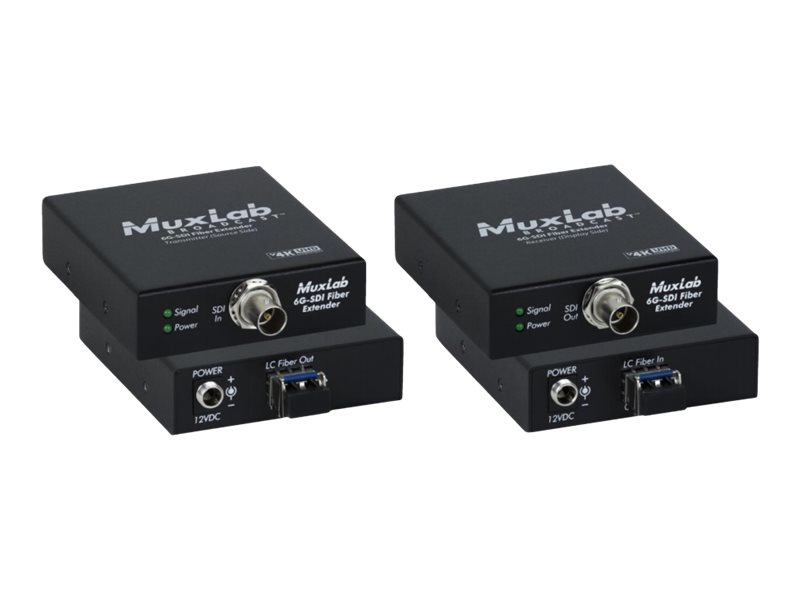

| Product Description | MuxLab 6G-SDI Fiber Extender Kit, Transmitter and Receiver - video extender |
| Device Type | Video extender |
| Form Factor | External |
| Max Transfer Distance | 12.4 miles |
| Power | AC 120/230 V |
| Dimensions (WxDxH) | 3 in x 3 in x 1 in |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Video extender |
| Form Factor | External |
| Expansion / Connectivity | |
| Interfaces | 1 x 6G-SDI - BNC |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Compliant Standards | FCC, RoHS, UL 94 V-0 |
| Networking | |
| Connectivity Technology | Wired |
| Max Transfer Distance | 12.4 miles |
| Power | |
| Power Device | External power adapter |
| Installed Qty | 2 |
| Voltage Required | AC 120/230 V |
| Power Consumption Operational | 1.25 watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 3 in |
| Depth | 3 in |
| Height | 1 in |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 9.8 in |
| Shipping Depth | 9.1 in |
| Shipping Height | 3.9 in |
