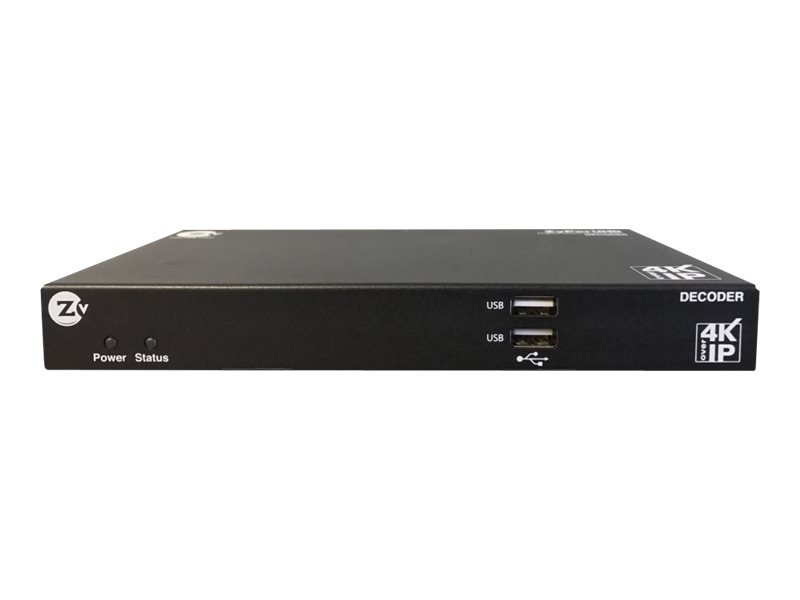

Audio/video over IP decoder
| Main Specifications | |
|---|---|
| Product Description | ZeeVee ZyPerUHD Decoder audio/video over IP decoder |
| Type | Audio/video over IP decoder |
| Dimensions (WxDxH) | 7.9 in - 4.7 in - 1 in |
| Weight | 26.1 oz |
| Manufacturer Warranty | 2 years |
| General | |
| Type | Audio/video over IP decoder |
| Width | 7.9 in |
| Depth | 4.7 in |
| Height | 1 in |
| Weight | 26.1 oz |
| Manufacturer Warranty | |
| Warranty | 2 years |
| Power | |
| Power Consumption | 6 Watt |
| Low Voltage Power | DC 12 V |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Kit Content | |
| Kit Content | (1) x power adapter ¦ (1) x IR receiver ¦ (1) x IR transmitter ¦ Rack mount brackets |
| Terminals | |

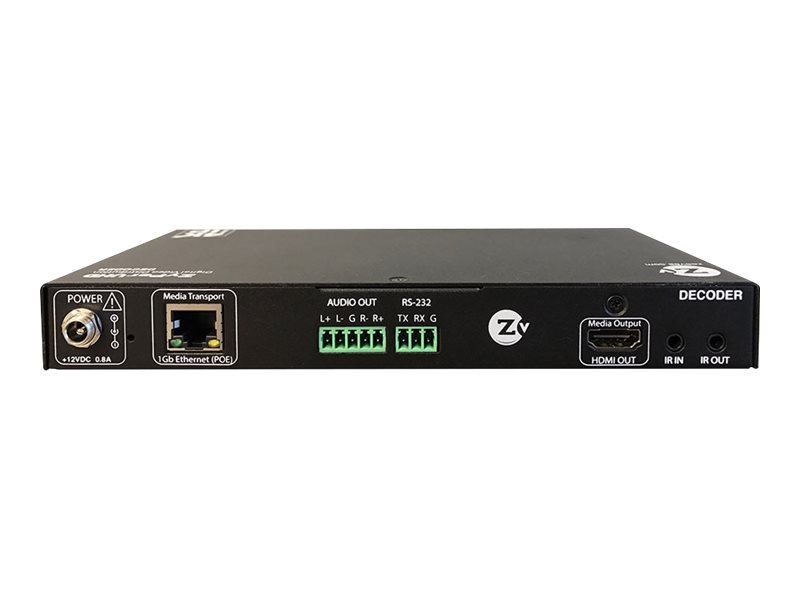

| Terminals | (1) x HDMI output - 19 pin HDMI Type A - with loop through ¦ (1) x network - RJ-45 ¦ (1) x balanced audio output - 5 pin Phoenix type ¦ (1) x serial - 3 pin Phoenix type - RS-232 ¦ (2) x USB 2.0 - 4 pin USB type A ¦ (1) x infrared input - mini-phone 3.5 mm ¦ (1) x infrared output - mini-phone 3.5 mm |
| Studio & Production Equipment | |
| Features | 4K resolution support, Power Over Ethernet support, HDCP 2.2 compliant, HDR (High Dynamic Range) support, JPEG 2000 codec support |
