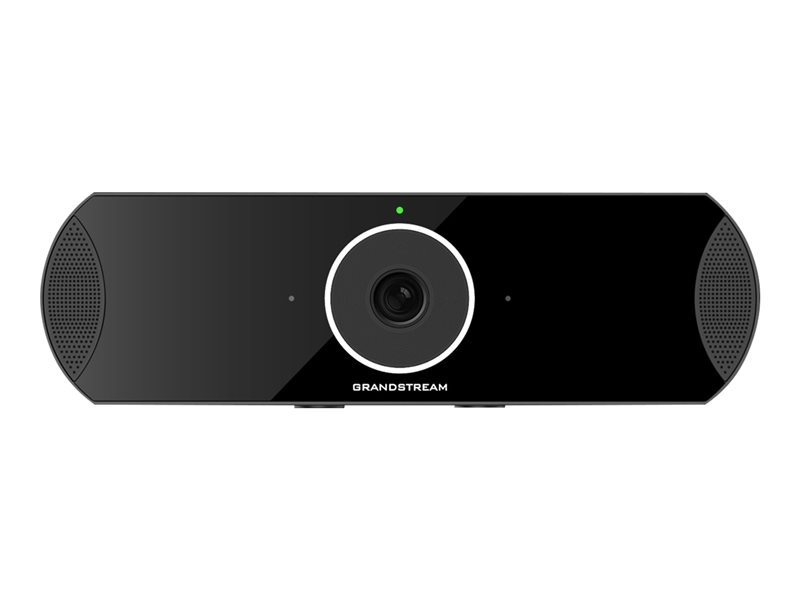

Video conferencing device - power adapter included
| Main Specifications | |
|---|---|
| Product Description | Grandstream GVC3210 - video conferencing device - power adapter included |
| Device Type | Video conferencing device |
| VoIP Protocols | SIP |
| Codec | H.264, G.722, iLBC, G.722.1, G.722.1c, Opus, G.729A/B, G.711?/a |
| Dimensions (WxDxH) | 10.6 in x 1.8 in x 3.1 in |
| Video Input | Digital video camera |
| Video Output | Codec board - 1920 x 1080 |
| Audio Input | 4-microphone array |
| Input Device | Remote control (wireless) |
| Networking | Network adapter - Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 4.0 EDR |
| Power | AC 120/230 V (50/60 Hz) |
| General | |
| Device Type | Video conferencing device |
| VoIP Protocols | SIP |
| Voice Codecs | G.722, iLBC, G.722.1, G.722.1c, Opus, G.729A/B, G.711?/a |
| Video Codecs | H.264 |
| Quality of Service | IEEE 802.1Q (VLAN), Differentiated Services (DiffServ), IEEE 802.1p |
| Security | 256-bit AES |
| Network Protocols | HTTP, HTTPS |
| Width | 10.6 in |
| Depth | 1.8 in |
| Height | 3.1 in |
| Built-in Devices | Microphone, camera, microSD card reader |
| Expansion / Connectivity | |
| Interfaces | 1 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 2 x audio / video - HDMI output - 19 pin HDMI Type A ¦ 1 x audio / video - HDMI input - 19 pin HDMI Type A ¦ 2 x USB |
| Miscellaneous | |
| Cables Included | 1 x HDMI cable - 5 ft ¦ 1 x HDMI cable - 16.4 ft ¦ 1 x network cable - 5 ft |
| Mounting Kit | Included |
| Compliant Standards | EN 61000-3-2, EN 61000-3-3, EN55024, UL 60950, FCC Part 15 B, FCC Part 15 C, RoHS, EN 60950-1, AS/NZS 4268, FCC Part 15 E, ANATEL, AS/NZS 60950, EN 62311, EN 300 328, EN 301 489-1, EN 62479, EN 301 893, EN 55032, EN 301 489-17, AS/NZS CISPR 32 |
| Networking | |
| Type | Network adapter |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 4.0 EDR |
| Network / Transport Protocol | TCP/IP, UDP/IP, NTP, ICMP/IP, PPPoE, ARP, DHCP, DNS, RTP, RTCP, HTTP, HTTPs |
| Features | LDAP support, DiffServ support, Quality of Service (QoS), SSH support, LLDP-MED |
| Compliant Standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x |
| Power | |
| Power Device | Power adapter - external |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Audio Input | |
| Type | 4-microphone array - integrated |
| Input Device | |
| Type | Remote control |
| Connectivity Technology | Wireless |
| Video Input | |
| Type | Digital video camera (color) - integrated |
| Digital Video Capture Resolution | 2160p |
| Digital Zoom | 3 |
| Features | ePTZ |
| Video Output | |
| Type | Codec board |
| Max External Resolution | 1920 x 1080 |
| Supported Display Graphics | XGA (1024x768), SVGA (800x600), SXGA (1280x1024), HDTV (1920x1080), HD (1280 x 720) |
| Digital Video Standard | High-Definition Multimedia Interface (HDMI) |
