SSD - 250 GB - internal - 2.5" - SATA 6Gb/s
| Main Specifications | |
|---|---|

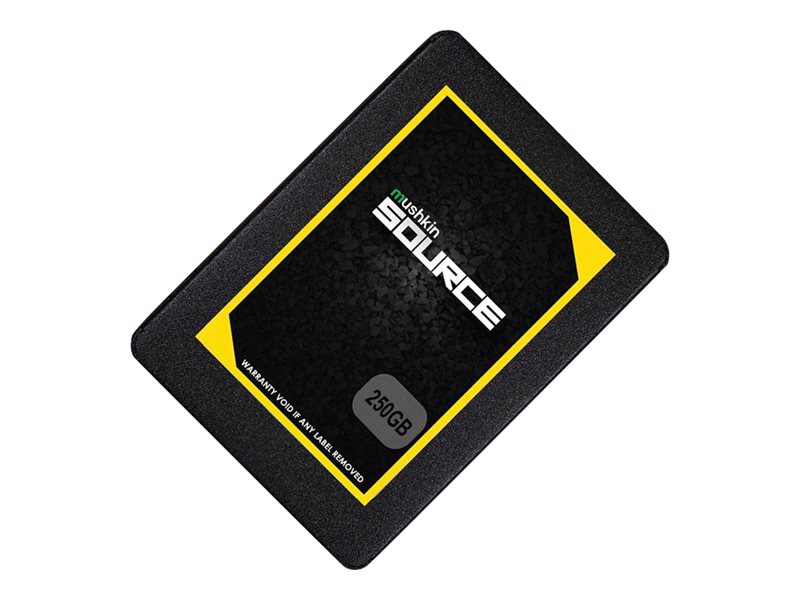

| Product Description | Mushkin Source - SSD - 250 GB - SATA 6Gb/s |
| Type | Solid state drive - internal |
| Capacity | 250 GB |
| NAND Flash Memory Type | 3D triple-level cell (TLC) |
| Form Factor | 2.5" |
| Interface | SATA 6Gb/s |
| Data Transfer Rate | 600 MBps |
| Features | Silicon Motion SM2258XT controller, StaticDataRefresh Technology, SLC cache, ECC Recovery LDPC, Secure Erase function, TRIM support, 3D NAND Technology, upgradable firmware, temperature sensor, shock-resistant, Global Wear Leveling, S.M.A.R.T. |
| Dimensions (WxDxH) | 2.7 in x 4 in x 0.3 in |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Solid state drive - internal |
| Capacity | 250 GB |
| NAND Flash Memory Type | 3D triple-level cell (TLC) |
| Form Factor | 2.5" |
| Interface | SATA 6Gb/s |
| Features | Silicon Motion SM2258XT controller, StaticDataRefresh Technology, SLC cache, ECC Recovery LDPC, Secure Erase function, TRIM support, 3D NAND Technology, upgradable firmware, temperature sensor, shock-resistant, Global Wear Leveling, S.M.A.R.T. |
| Width | 2.7 in |
| Depth | 4 in |
| Height | 0.3 in |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | FCC, RoHS |
| Power | |
| Power Consumption | 0.08 watt (idle) ¦ 2 watt (active) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 158 °F |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 185 °F |
| Shock Tolerance (operating) | 1500 g |
| Performance | |
| Drive Transfer Rate | 600 MBps (external) |
| Internal Data Rate | 560 MBps (read) / 515 MBps (write) |
| 4KB Random Read | 54000 IOPS |
| 4KB Random Write | 81000 IOPS |
| Seek Time | 0.1 ms (max) |
| Reliability | |
| MTBF | 1,500,000 hours |
| Expansion & Connectivity | |
| Interfaces | 1 x SATA 6 Gb/s - 7 pin Serial ATA |
| Compatible Bay | 2.5" |
