NVR - quadplex - 16 channels - 2 x 4 TB - networked - rack-mountable (option)
| Main Specifications | |
|---|---|

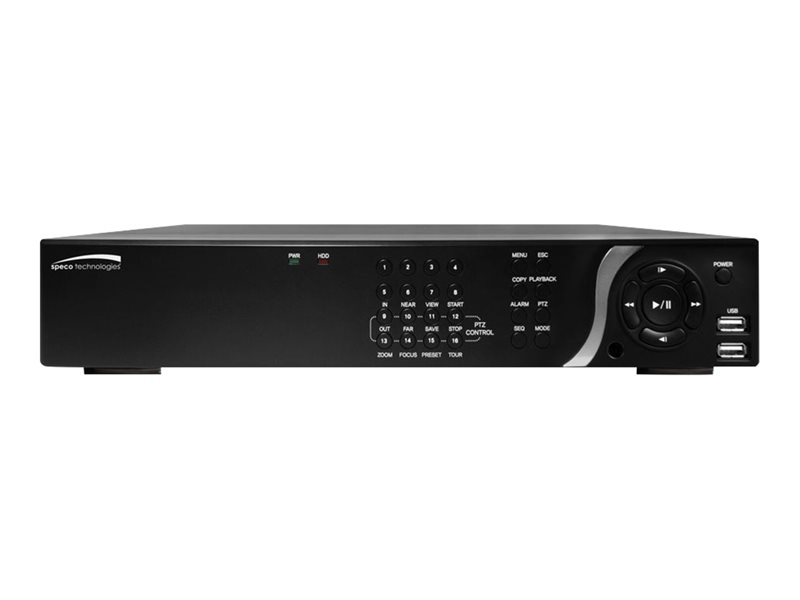

| Product Description | Speco N16NSF - standalone NVR - 16 channels |
| Device Type | NVR - quadplex - 16 channels - networked - rack-mountable (option) |
| IP Cameras Supported | 16 |
| Frame Rate | 480 fps |
| Compression Format | H.264 |
| Image Resolution | 1280x720, 1920x1080 |
| Hard Drive | 2 x 4 TB |
| Hard Drive(s) Supported | Quantity: 2 |
| Voltage | 120 / 230 V |
| Dimensions (WxDxH) | 15 in x 13.4 in x 2.8 in |
| Weight | 11.99 lbs |
| Manufacturer Warranty | 5 years |
| General | |
| Device Type | NVR - rack-mountable (option) |
| Video Channels | 16 |
| IP Cameras Supported | 16 |
| Audio Channels | 4 |
| Image Resolution | 1280x720, 1920x1080 |
| Compression Format | H.264 |
| Warranty | 5 years |
| Networking | |
| DDNS Support | Yes |
| Network Interfaces | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Features | Firmware upgradable, ONVIF support, power over Ethernet (PoE) |
| Power | |
| Voltage | 120 / 230 V |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 104 °F |
| Hard Drive | |
| Quantity Installed | 2 |
| Quantity Supported | 2 |
| Capacity | 4 TB |
| Interface | Serial ATA |
| Connections | |
| Video Output Ports | HDMI x 1, BNC x 1, VGA x 1 |
| Audio Input Ports | RCA x 4 |
| Audio Output Ports | RCA x 1 |
| Alarm Ports | Alarm output x 1, alarm input x 16 |
| Camera Control Interface (PTZ) | RS-485 |
| Network Port | 10/100/1000Base-T |
| Other Ports | USB x 3, eSATA x 1, RJ-45 x 16 (POE) |
| Dimensions & Weight | |
| Width | 15 in |
| Depth | 13.4 in |
| Height | 2.8 in |
| Weight | 11.99 lbs |
| Security DVR | |
| Frame Rate (Record) | 480 fps |
| Display Modes | 16 split screens, 4 split screens, 9 split screens, full screen |
| Playback Search | Date/time, event |
| Record Events | Continuous, scheduled, motion detection, manual |
| Networked | Yes |
| Features | Pan/Tilt/Zoom support, Digital Deterrent |
