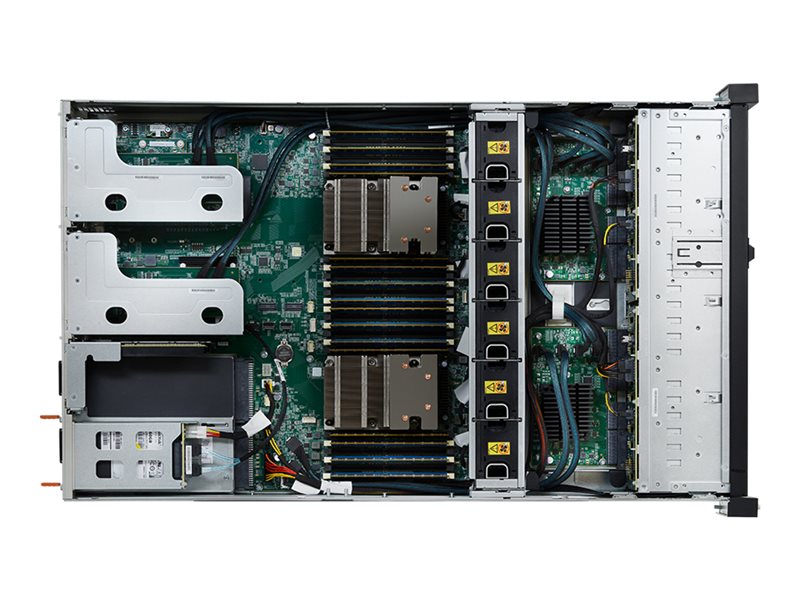

NAS server - 24 bays - 38.4 TB - PCI Express 3.0 x4 - SSD 1.6 TB x 24 + SSD 512 GB x 2 - RAM 256 GB - 10 Gigabit Ethernet - 2U
| Main Specifications | |
|---|---|
| Product Description | WD Ultrastar Serv24 SVR2U24-24 SS2U24PUR-1019 - NAS server - 38.4 TB |
| Device Type | NAS server |
| Host Connectivity | 10 Gigabit Ethernet |
| Enclosure Type | 2U |
| Total Storage Capacity | 38.4 TB |
| Installed Devices / Modules Qty | 24 (installed) / 24 (max) |
| Dimensions (WxDxH) | 17.6 in x 29.9 in x 3.4 in |
| Weight | 54.89 lbs () |
| Processor | 1 x Intel Xeon 5120 1.86 GHz (Dual-Core) |
| Storage Controller | PCI Express PCI Express 3.0 x4 |
| Hard Drive | 24 x 1.6 TB PCI Express 3.0 x4 - Secure Erase function, NVM Express (NVMe) - HGST |
| Hard Drive (2nd) | 2 x 512 GB |
| Networking | 10GbE |
| RAM | 256 GB |
| Power | AC 230 V |
| Power Redundancy | Yes |
| General | |
| Device Type | NAS server |
| Host Connectivity | 10 Gigabit Ethernet |
| Enclosure Type | 2U |
| Total Storage Capacity | 38.4 TB |
| Installed Devices / Modules Qty | 24 (installed) / 24 (max) |
| Width | 17.6 in |
| Depth | 29.9 in |
| Height | 3.4 in |
| Weight | 54.89 lbs () |
| Expansion / Connectivity | |
| Expansion Bays | 24 (total) / 0 (free) x internal - 2.5" |
| Expansion Slots | 2 x PCI Express 3.0 x16 ¦ 1 x PCI Express 3.0 x8 |

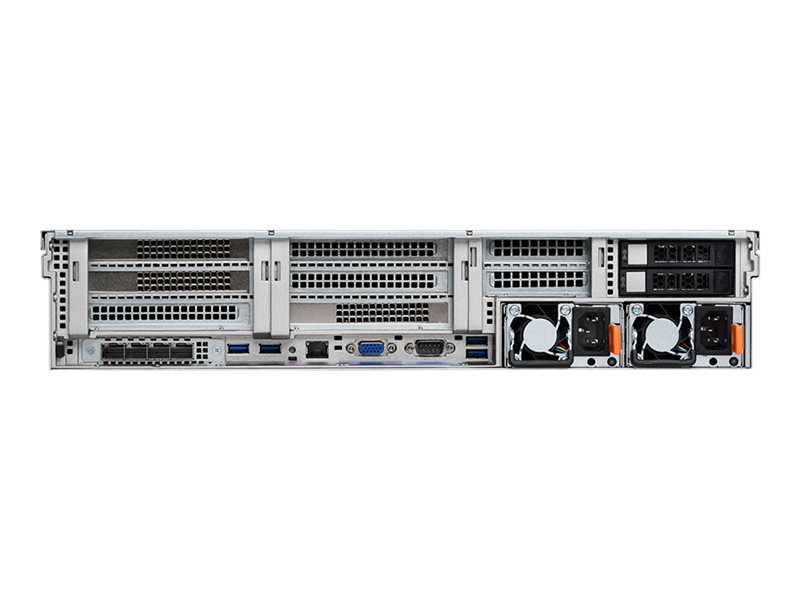

| Interfaces | 2 x Ethernet 10Gb ¦ 1 x Ethernet 1000 (management) - RJ-45 ¦ 2 x USB 3.0 ¦ 1 x VGA ¦ 1 x serial - DB-9 |
| Networking | |
| Data Link Protocol | 10GbE |
| Remote Management Protocol | IPMI 2.0 |

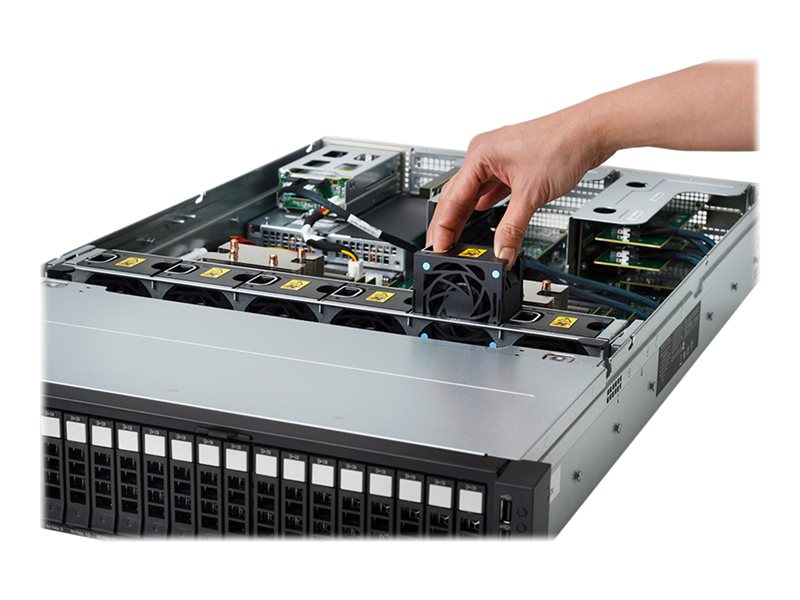

| Features | Hot swappable 5+1 60mm fans |
| Compliant Standards | OCP 2.0 |
| Power | |
| Power Device | Hot-plug |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Voltage Required | AC 230 V |
| Power Provided | 1200 watt |
| 80 PLUS Certification | 80 PLUS Platinum |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 5 - 85% |
| Storage Controller | |
| Type | PCI Express |
| Interface Type | PCI Express 3.0 x4 |
| Hard Drive | |

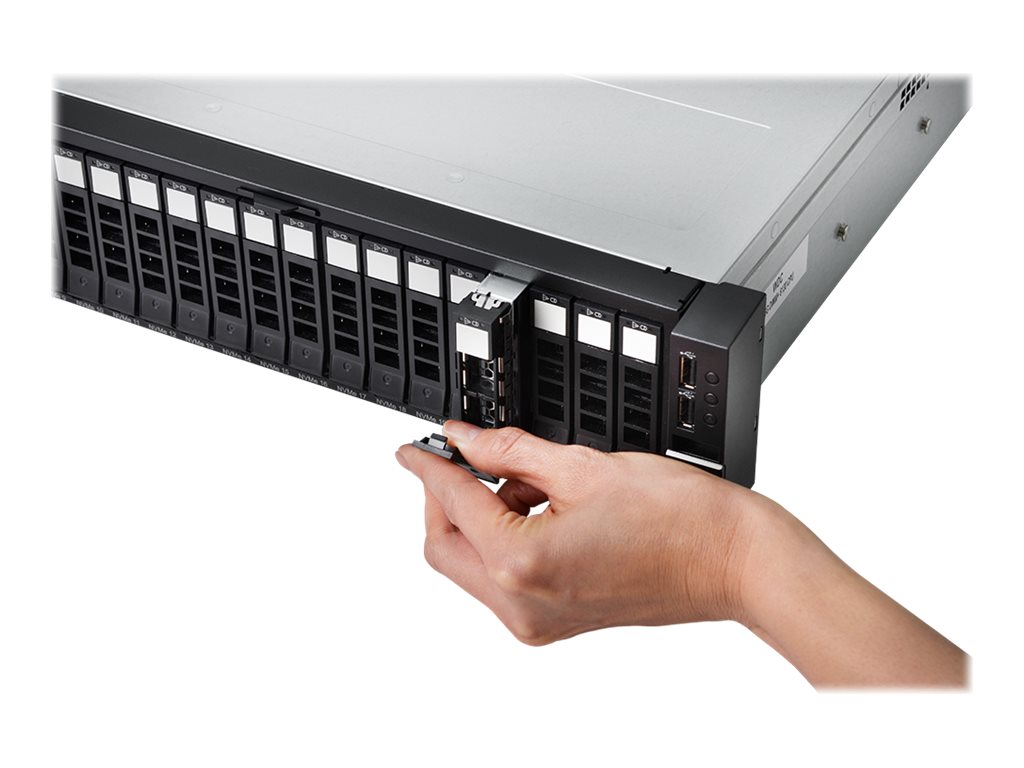

| Type | SSD - hot-swap - 2.5" |
| Capacity | 24 x 1.6 TB |
| Interface Type | PCI Express 3.0 x4 |
| Features | Secure Erase function, NVM Express (NVMe) |
| Manufacturer | HGST |
| Drive Writes Per Day (DWPD) | 1.7 |
| Processor / Memory | |
| Processors Installed | 1 x Intel Xeon 5120 1.86 GHz |
| Number of Cores | Dual-Core |
| RAM | 256 GB DDR4 |
| Hard Drive (2nd) | |
| Type | SSD |
| Capacity | 2 x 512 GB |
