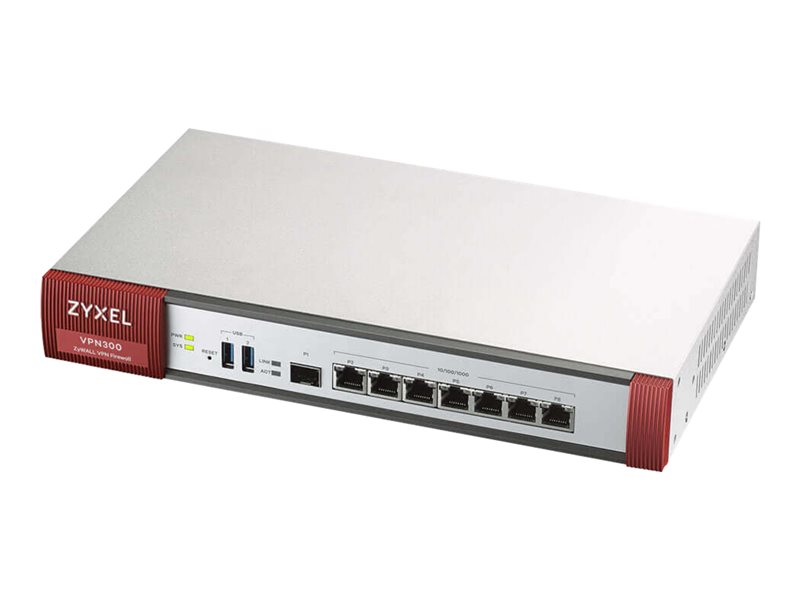

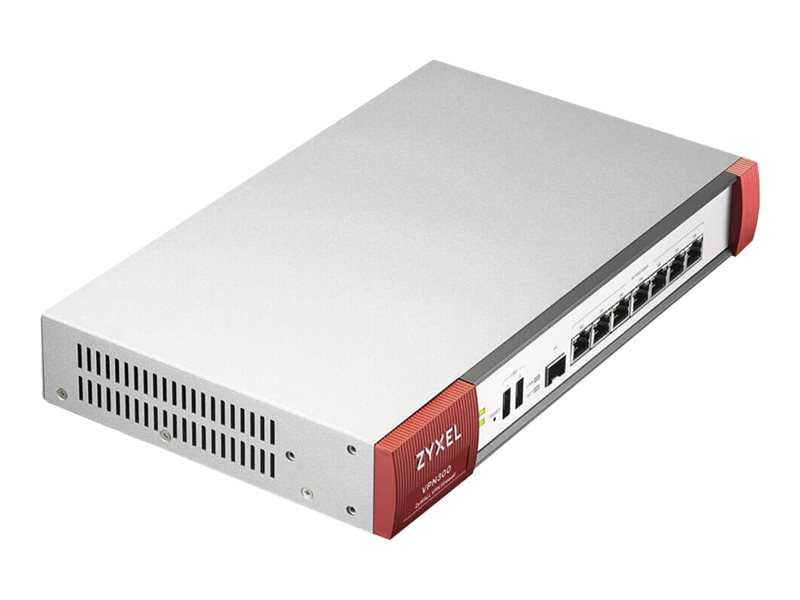

Security appliance - with 1 year content filter + 1 year Geo Enforcer + Hotspot Management - 1GbE - rack-mountable
| Main Specifications | |
|---|---|
| Product Description | Zyxel ZyWALL VPN300 - security appliance - with 1 year content filter + 1 year Geo Enforcer + Hotspot Management |
| Device Type | Security appliance |
| Bundled Services | 1 year content filter + 1 year Geo Enforcer + Hotspot Management |
| Form Factor | Rack-mountable |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Performance | Firewall throughput: 2.6 Gbps ¦ VPN throughput: 1 Gbps ¦ Syslog: 4 |
| Capacity | Concurrent TCP sessions: 2000000 ¦ IPSec VPN tunnels: 300 ¦ Concurrent SSL VPN users: 300 ¦ Concurrent logins: 800 ¦ Virtual interfaces (VLANs): 64 |
| Included Accessories | Rack mount kit |
| Dimensions (WxDxH) | 11.8 in x 7.4 in x 1.7 in |
| Weight | 3.64 lbs |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Device Type | Security appliance |
| Bundled Services | 1 year content filter + 1 year Geo Enforcer + Hotspot Management |
| Width | 11.8 in |
| Depth | 7.4 in |
| Height | 1.7 in |
| Weight | 3.64 lbs |
| Expansion / Connectivity | |

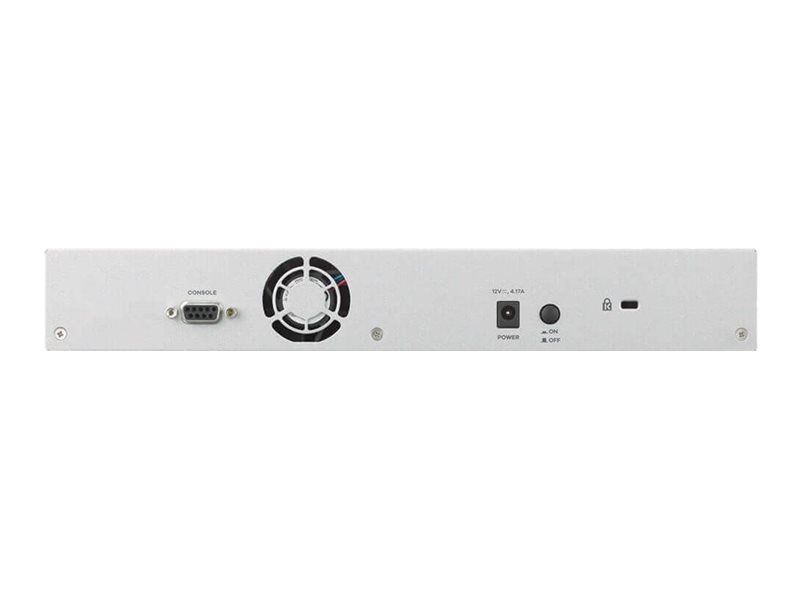

| Interfaces | 7 x 1000Base-TX - RJ-45 (WAN / LAN) ¦ 1 x - SFP (mini-GBIC) ¦ 2 x USB 3.0 - Type A ¦ 1 x console - DB-9 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Included Accessories | Rack mount kit |
| MTBF | 529,688.2 hours |
| Compliant Standards | UL, BSMI, ICSA Firewall certified, IC, EMC Class B, RCM, FCC Part 15 Class B, IEEE 802.1Q |
| Networking | |
| Form Factor | Rack-mountable |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Network / Transport Protocol | L2TP, IPSec, PPPoE, SMTP, FTP, DNS, POP3, IMAP4, DHCPv6 |
| Routing Protocol | OSPF, RIP, BGP, GRE |
| Remote Management Protocol | SNMP 1, Telnet, SNMP 3, SNMP 2c, SSH |
| Performance | Firewall throughput: 2.6 Gbps ¦ VPN throughput: 1 Gbps ¦ Syslog: 4 |
| Capacity | Concurrent TCP sessions: 2000000 ¦ IPSec VPN tunnels: 300 ¦ Concurrent SSL VPN users: 300 ¦ Concurrent logins: 800 ¦ Virtual interfaces (VLANs): 64 |
| Status Indicators | Power, system, link/activity |
| Features | PAT support, SNAT support, VLAN support, Syslog support, Stateful Packet Inspection (SPI), content filtering, ALG support, E-mail alert, High Availability, DDos attack prevention, tunneling, Wi-Fi Multimedia (WMM) support, Dead Peer Detection (DPD), Multiple SSID support, IP-MAC binding, CAPWAP support, dual firmware images, static routing, 802.1x authentication, Single Sign-On (SSO) support, Internet Control Message Protocol (ICMP), Dynamic Channel Selection (DCS), Perfect Forward Secrecy (PFS), L2TP over IPSec, traffic monitoring |
| Encryption Algorithm | DES, MD5, AES, IKE, SSL, SHA-1, PKI, IKEv2, SHA-2 |
| Authentication Method | X.509 certificates, Extensible Authentication Protocol (EAP), XAUTH authentication |
| Compliant Standards | IEEE 802.1Q, X.509 |
| Power | |
| Power Device | External power adapter |
| Power Consumption Operational | 24.1 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 13.8 in |
| Shipping Depth | 6 in |
| Shipping Height | 9.6 in |
| Shipping Weight | 6.24 lbs |
