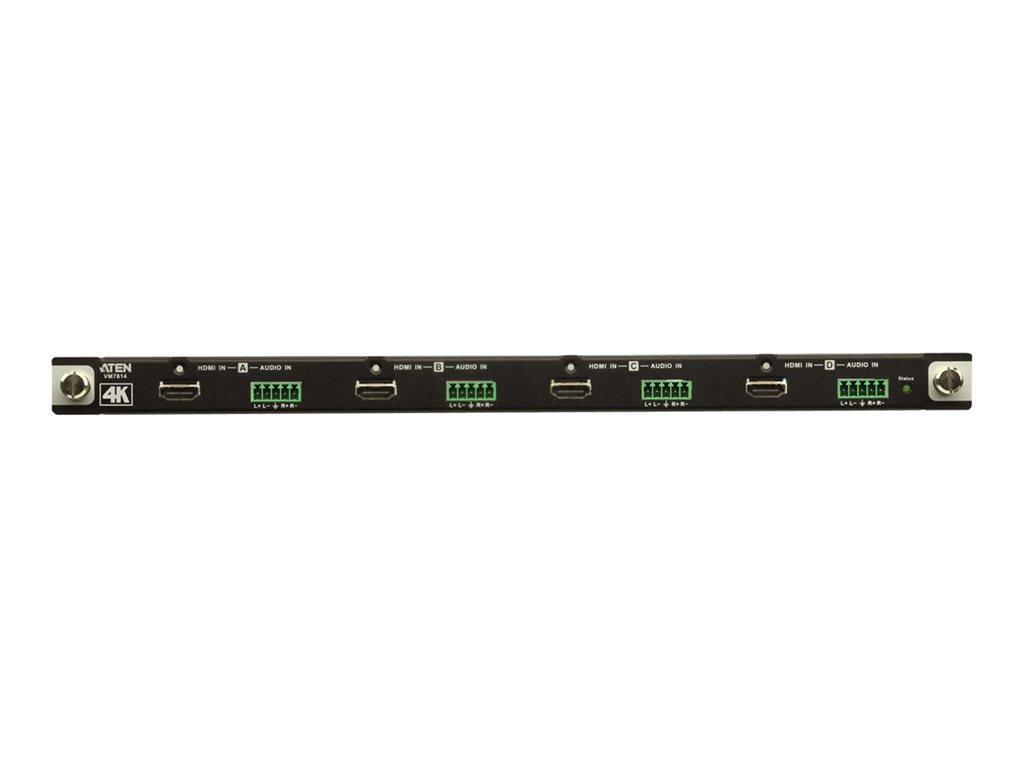

Expansion module - HDMI x 4 - for VanCryst VM1600A, VM3200, VM3250
| Main Specifications | |
|---|---|
| Product Description | ATEN VanCryst VM7814 4K HDMI Input Board - expansion module - HDMI x 4 |
| Device Type | Expansion module |
| Form Factor | Plug-in module |
| Ports | HDMI x 4 |
| Dimensions (WxDxH) | 13.9 in x 9.4 in x 0.9 in |
| Weight | 19.75 oz |
| Data Link Protocol | HDMI |
| Data Transfer Rate | 10.2 Gbps |
| Performance | Maximum data rate: 10.2 Gbps ¦ Maximum data rate (per lane): 3.4 Gbps ¦ Pixel clock: 340 MHz |
| Compliant Standards | HDCP 2.2 |
| Manufacturer Warranty | 3-year warranty |
| Designed For | VanCryst VM1600A, VM3200, VM3250 |
| General | |
| Device Type | Expansion module |
| Form Factor | Plug-in module |
| Expansion / Connectivity | |
| Interfaces | 4 x HDMI input - 19 pin HDMI Type A ¦ 4 x audio line-in - 5 pin terminal block |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Included Accessories | 4 x terminal blocks, 4 x HDMI LockPro |
| Compliant Standards | RoHS, CEC |
| Networking | |
| Ports | HDMI x 4 |
| Connectivity Technology | Wired |
| Data Link Protocol | HDMI |
| Data Transfer Rate | 10.2 Gbps |
| Performance | Maximum data rate: 10.2 Gbps ¦ Maximum data rate (per lane): 3.4 Gbps ¦ Pixel clock: 340 MHz |
| Status Indicators | Port status, status |
| Features | HDCP compliant, 4K resolution support, 3D support, EDID Expert, Full HD (1920 x 1080) streaming video support, HD (1280 x 720) streaming video support, cable test |
| Compliant Standards | HDCP 2.2 |
| Power | |
| Power Consumption Operational | 4.45 watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 80% (non-condensing) |
| Dimensions & Weight | |
| Width | 13.9 in |
| Depth | 9.4 in |
| Height | 0.9 in |
| Weight | 19.75 oz |
| Compatibility Information | |
| Designed For | ATEN VanCryst VM1600A, VM3200, VM3250 |
