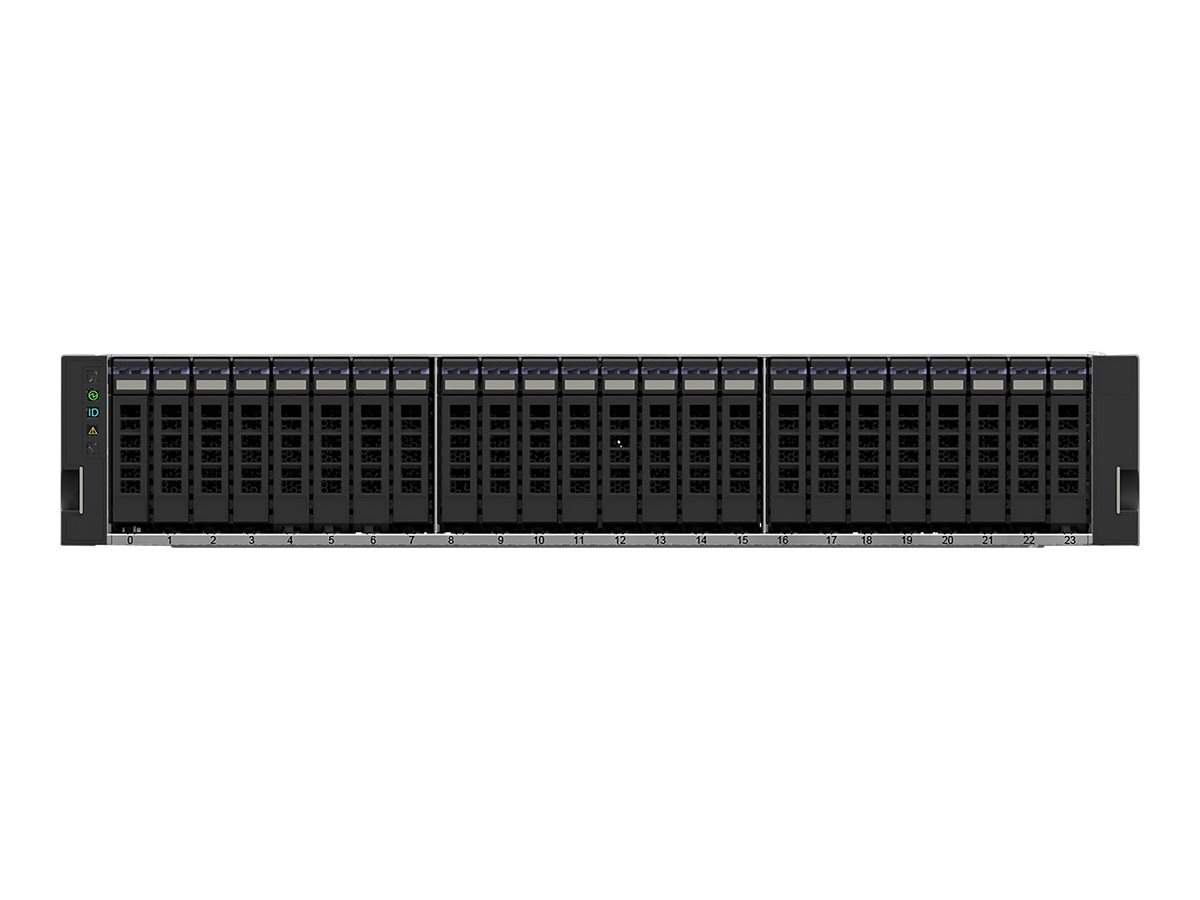

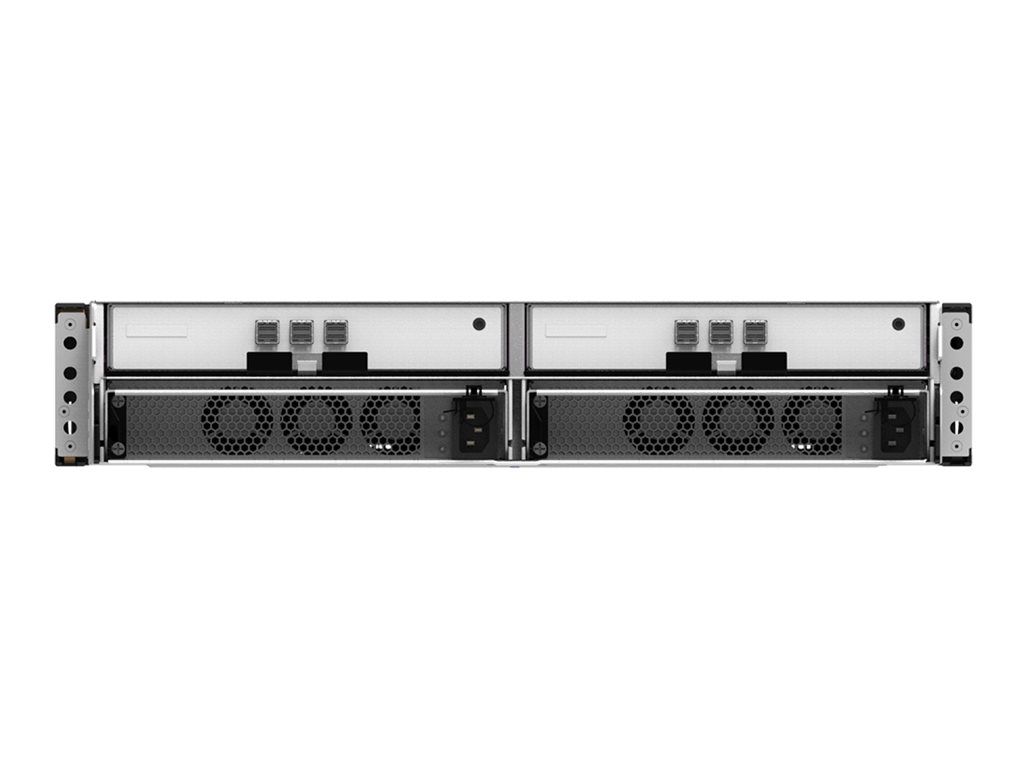

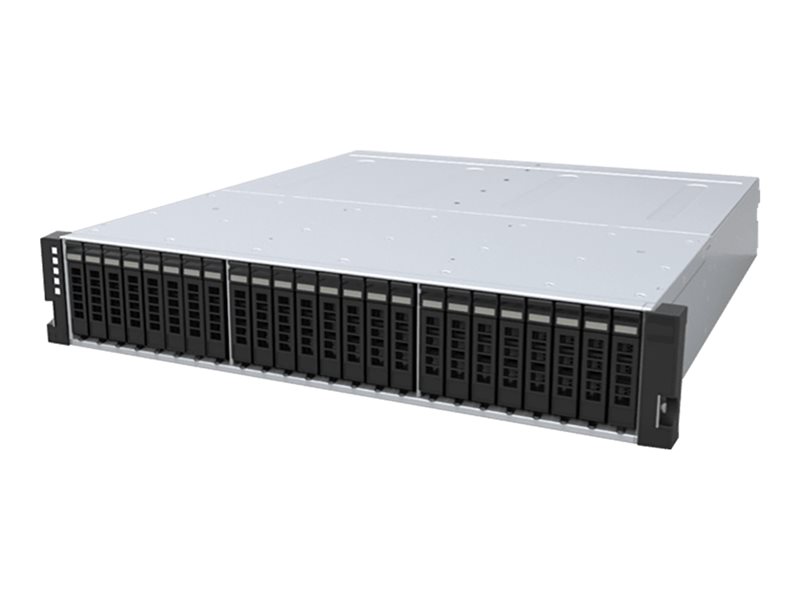

Storage enclosure - 24 bays (SAS-3) - SSD 11.52 TB - rack-mountable - 2U
| Main Specifications | |
|---|---|
| Product Description | WD 2U24 Flash Storage Platform SE2U24-24 2U24-1033 - storage enclosure |
| Device Type | Storage enclosure |
| Enclosure Type | Rack-mountable - 2U |
| Installed Devices / Modules Qty | 24 (max) |
| Supported Drives | SAS-3 |
| Hard Drive | 11.52 TB SSD SAS 12Gb/s - hot-swap - Secure Erase function |
| Power | AC 120/230 V - 50/60 Hz |
| Dimensions (WxDxH) | 17.6 in x 21.1 in x 3.4 in |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Device Type | Storage enclosure |
| Enclosure Type | Rack-mountable - 2U |
| Expansion / Connectivity | |
| Expansion Bays | 24 hot-swap - 2.5" |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Features | SCSI Enclosure Services (SES) |
| Processor | |
| CPU | No CPU |
| Power | |
| Power Device | 2 x internal power supply - hot-plug |
| Power Redundancy Scheme | 1+1 |
| Voltage Required | AC 120/230 V - 50/60 Hz |
| Power Provided | 600 watt |
| 80 PLUS Certification | 80 PLUS Gold |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 85% |
| Hard Drive | |
| Type | SSD - hot-swap |
| Capacity | 11.52 TB |
| Interface Type | SAS 12Gb/s |
| Drive Writes Per Day (DWPD) | 1 |
| Features | Secure Erase function |
| Dimensions & Weight | |
| Width | 17.6 in |
| Depth | 21.1 in |
| Height | 3.4 in |
| Chassis | |
| Supported Devices / Modules Qty | 24 |
| Supported Drives | SAS-3 |
