Network/power extender - 1GbE - 1000Base-T, 100Base-TX, 10Base-T - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | TRENDnet TI-EU120 - network/power extender - 1GbE, 100Mb LAN, 10Mb LAN - TAA Compliant |
| Device Type | Network/power extender |
| Form Factor | Wall mountable |
| Cabling Type | 1000Base-T, 100Base-TX, 10Base-T |
| Data Transfer Rate | 2 Gbps |
| Data Link Protocol | 1GbE, 100Mb LAN, 10Mb LAN |
| Power Over Ethernet (PoE) | UPOE |
| Dimensions (WxDxH) | 6.5 in x 4.4 in x 2.4 in |
| Weight | 29.42 oz |
| TAA Compliant | Yes |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Network/power extender |
| Form Factor | Wall mountable |
| Expansion / Connectivity | |

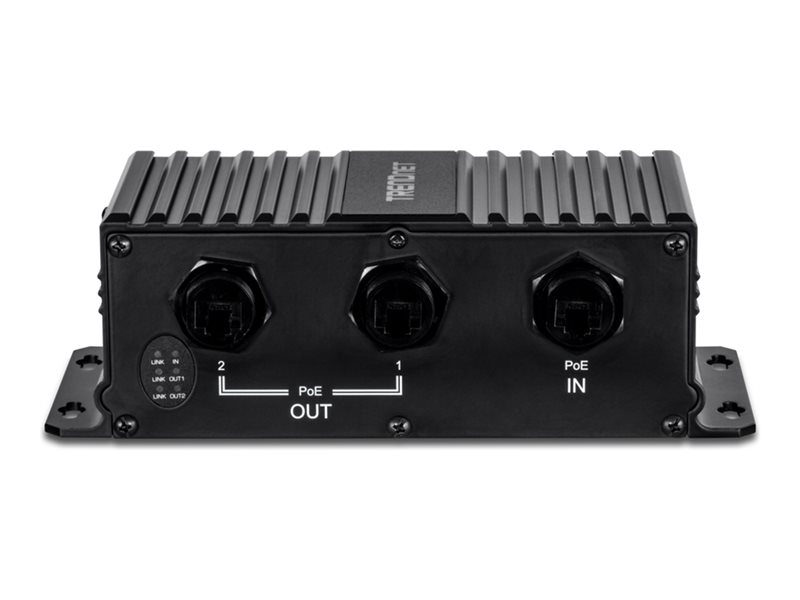

| Interfaces | 2 x Ethernet 1000Base-T (UPOE output) - RJ-45 female ¦ 1 x Ethernet 1000Base-T (UPOE input) - RJ-45 female |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Included Accessories | Wall mounting kit |
| Mounting Kit | Included |
| Compliant Standards | IP67, FCC, EN 60950-1, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6 |
| TAA Compliant | Yes |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 1000Base-T, 100Base-TX, 10Base-T |
| Data Link Protocol | 1GbE, 100Mb LAN, 10Mb LAN |
| Data Transfer Rate | 2 Gbps |
| MAC Address Table Size | 8K entries |
| Features | Daisy-chaining support, wall mountable, 1Mbit packet buffer, 10 KB Jumbo Frame, full duplex mode |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt (draft) |
| Power | |
| Power Over Ethernet (PoE) | UPOE |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 167 °F |
| Humidity Range Operating | 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 6.5 in |
| Depth | 4.4 in |
| Height | 2.4 in |
| Weight | 29.42 oz |
