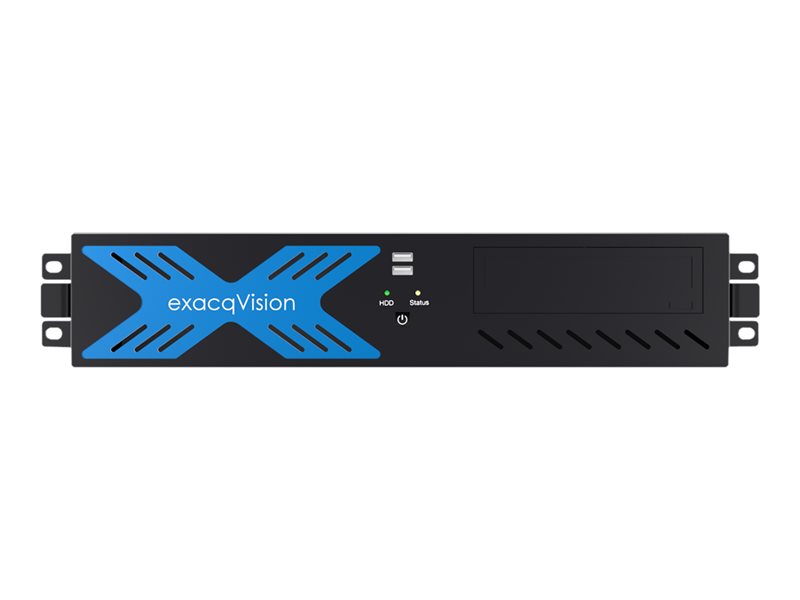

NVR - 64 channels 30 TB - networked - 2U - rack-mountable
| Main Specifications | |
|---|---|
| Product Description | exacqVision A-Series IP04-06T-R2A - standalone NVR - 64 channels |
| Device Type | NVR - 64 channels - networked - rack-mountable - 2U |
| IP Cameras Supported | 64 |
| Frame Rate | 700 fps, 1800 fps (playback) |
| Hard Drive | 30 TB |
| Hard Drive(s) Supported | Quantity: 3 |
| Optical Drive | DVD-RW |
| Voltage | 120 / 230 V |
| Dimensions (WxDxH) | 16.8 in x 21.5 in x 3.5 in |
| Weight | 27.12 lbs |
| Manufacturer Warranty | 3 years |
| General | |
| Device Type | NVR - rack-mountable - 2U |
| Video Channels | 64 |
| IP Cameras Supported | 64 |
| Package Content | Keyboard, mouse, NVR |
| OS Provided | Windows 10 |
| Software Included (Y) | 4 IP licenses, exacqVision Professional server |
| Compliant Standards | UL, FCC, cULus |
| Warranty | 3 years |
| Networking | |
| Network Interfaces | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Power | |
| Voltage | 120 / 230 V |
| Power Consumption | 160 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 40.1 °F |
| Max Operating Temperature | 95 °F |
| Hard Drive | |
| Quantity Supported | 3 |
| Capacity | 30 TB |
| Connections | |
| Video Output Ports | HDMI x 1, DVI-I x 1, DisplayPort x 1 |
| Network Port | 10/100/1000Base-T x 2 |
| Other Ports | USB 2.0 x 6, USB 3.0 x 2 |
| Dimensions & Weight | |
| Width | 16.8 in |
| Depth | 21.5 in |
| Height | 3.5 in |
| Weight | 27.12 lbs |
| Security DVR | |
| Frame Rate (Playback) | 700 fps, 1800 fps |
| Optical Drive | DVD-RW |
| Networked | Yes |
| Video Server | |
| CPU | Intel Core i3 |
| RAM | 4 GB |
| Features | 120GB SSD OS drive |
