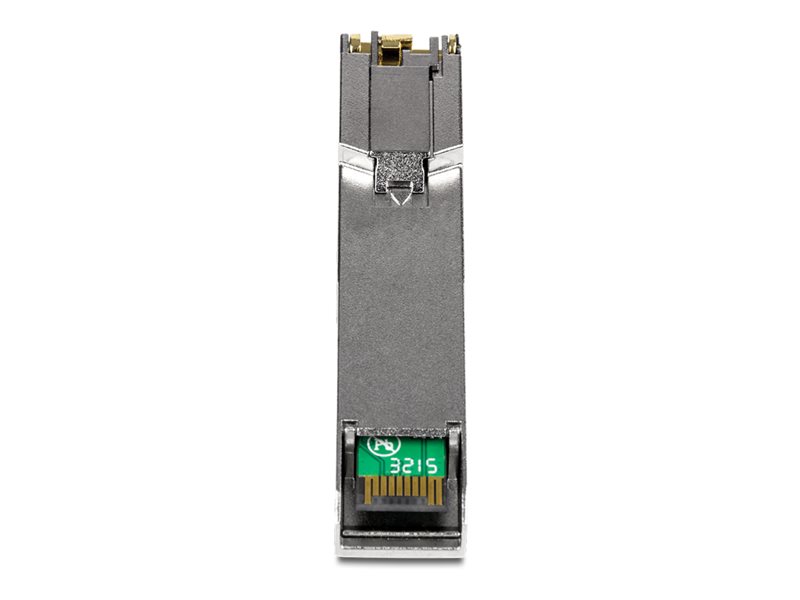

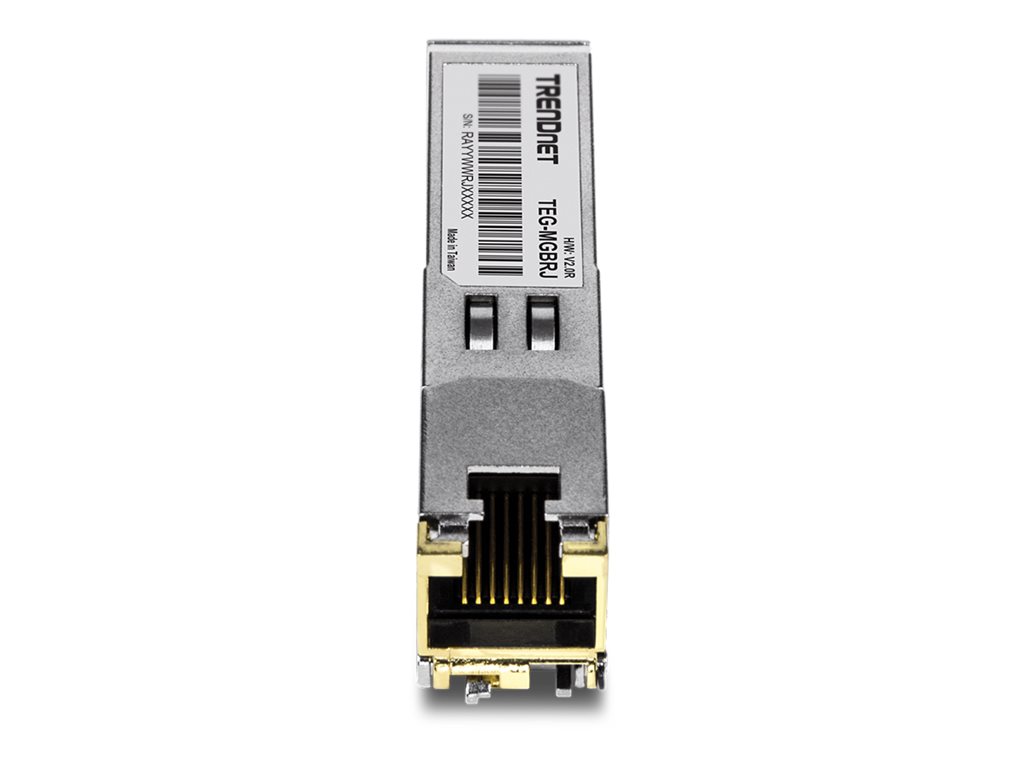

Version v1.0R - SFP (mini-GBIC) transceiver module - 1GbE - 1000Base-T - RJ-45 - up to 328 ft - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | TRENDnet TEG MGBRJ - Version v1.0R - SFP (mini-GBIC) transceiver module - 1GbE - TAA Compliant |
| Device Type | SFP (mini-GBIC) transceiver module - RJ-45 |
| Form Factor | Plug-in module |
| Cabling Type | 1000Base-T |
| Data Transfer Rate | 1.25 Gbps |
| Data Link Protocol | 1GbE |
| Max Transfer Distance | 328 ft |
| Dimensions (WxDxH) | 0.5 in x 2.7 in x 0.5 in |
| Weight | 0.78 oz |
| TAA Compliant | Yes |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | SFP (mini-GBIC) transceiver module |
| Form Factor | Plug-in module |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 1000Base-T - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | MSA, FCC |
| TAA Compliant | Yes |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 1000Base-T |
| Data Link Protocol | 1GbE |
| Data Transfer Rate | 1.25 Gbps |
| Max Transfer Distance | 328 ft |
| Features | Hot swap module replacement, metal housing |
| Compliant Standards | IEEE 802.3ab, IEEE 802.3, IEEE 802.3z |
| Power | |
| Power Consumption Operational | 1.5 watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 158 °F |
| Humidity Range Operating | 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 0.5 in |
| Depth | 2.7 in |
| Height | 0.5 in |
| Weight | 0.78 oz |
