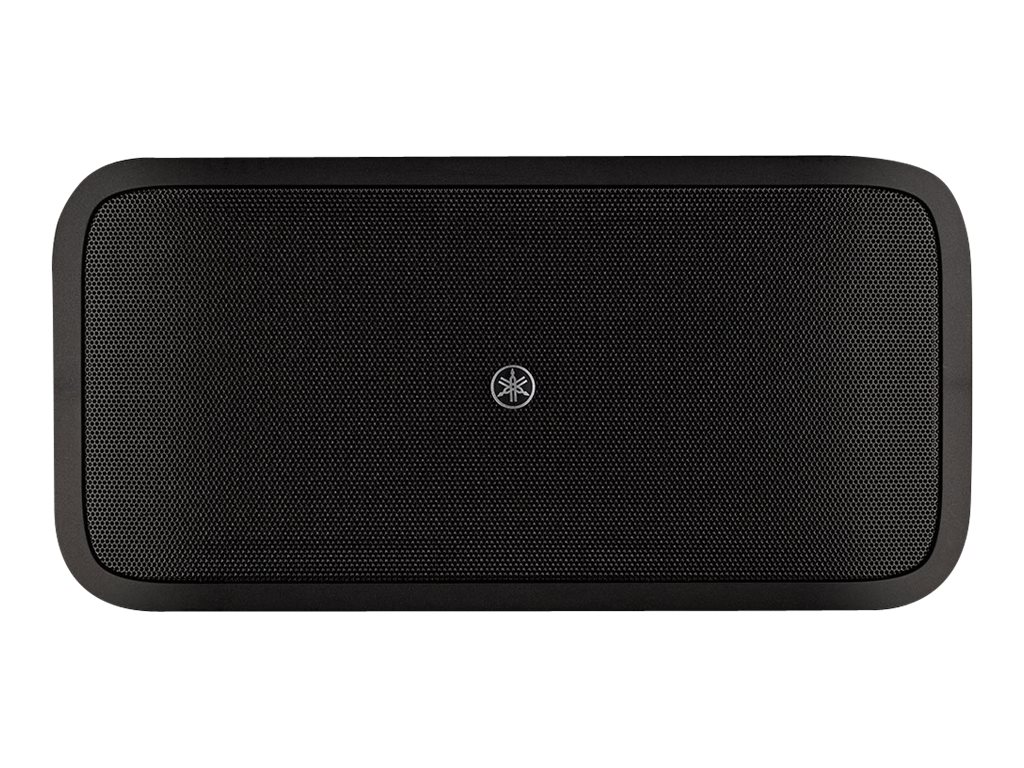

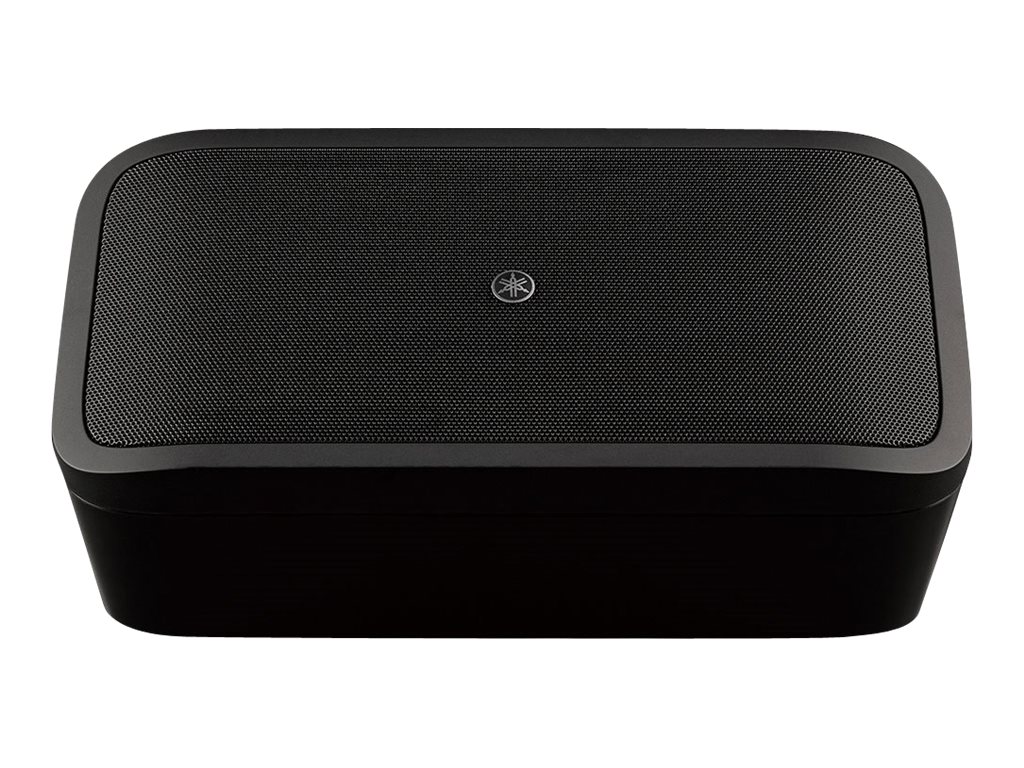

Subwoofer - for PA system - 20 Watt - black
| Main Specifications | |
|---|---|
| Product Description | Yamaha VXS series S VXS3SB - subwoofer - for PA system |
| Product Type | Subwoofer - for PA system |
| Protection | Output power limiting |
| Speaker Type | Passive |
| Continuous Power | 20 Watt |
| Peak Power | 80 Watt |
| Frequency Response | 65 - 180 Hz |
| Nominal Impedance | 8 Ohm |
| Integrated Transformer | 70V/100V or 8 Ohm operation |
| Speaker Details | Speaker - subwoofer - 20 Watt - 65 - 180 Hz - 8 Ohm - passive |
| Color | Black |
| Dimensions (WxDxH) | 12.7 in x 4.6 in x 6.4 in |
| Weight | 5.95 lbs |
| General | |
| Product Type | Subwoofer - for PA system |
| Features | SR-Bass (Swing Radiator Bass) |
| Protection | Output power limiting |
| Enclosure Color | Black |
| Enclosure Material | ABS plastic |
| Design Features | Paintable, paintable grille |
| Miscellaneous | |
| Included Accessories | Mounting hardware, mounting bracket, safety cable |
| Compliant Standards | NFPA 70, RoHS |
| Connections | |

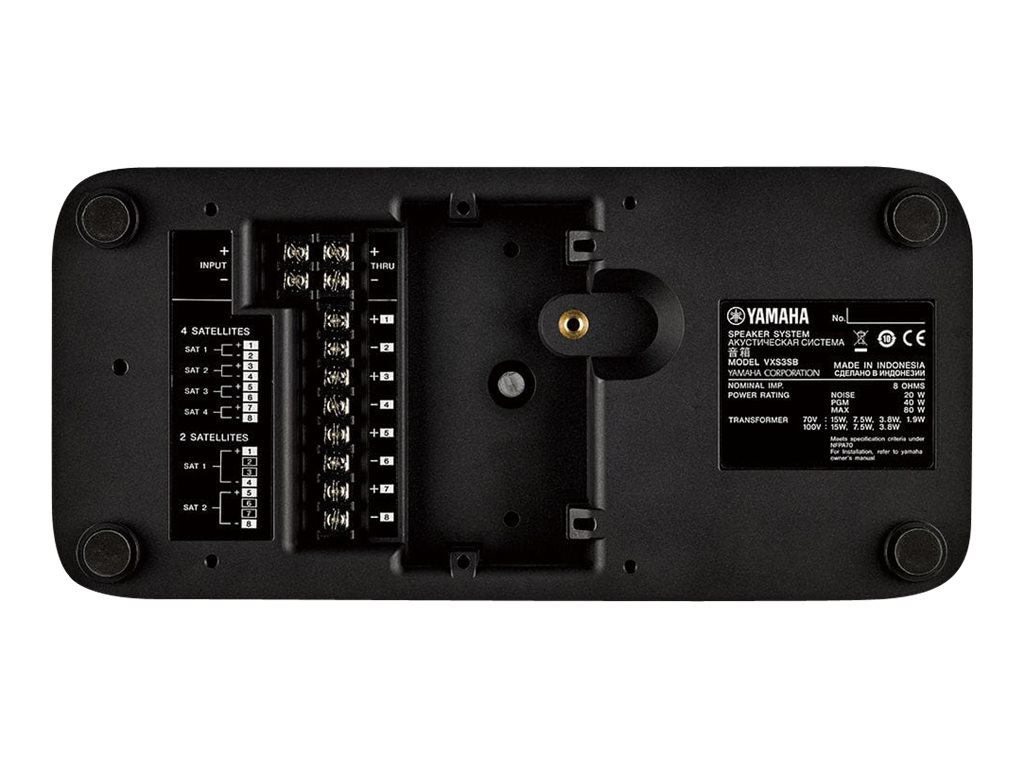

| Connector Type | Speakers input (terminal block) |
| Dimensions & Weight | |
| Width | 12.7 in |
| Depth | 4.6 in |
| Height | 6.4 in |
| Weight | 5.95 lbs |
| Speaker System | |
| Speaker Type | Passive |
| Continuous Power | 20 Watt |
| Peak Power | 80 Watt |
| Frequency Response | 65 - 180 Hz |
| Nominal Impedance | 8 Ohm |
| Max Output Level (Max SPL) | 98 dB |
| Sensitivity | 79 dB |
| Integrated Transformer | 70V/100V or 8 Ohm operation |
| Recommended Placing | Ceiling mountable, wall-mountable |
| Controls | Power selector |
| Speaker System Details | |
| Speaker Details | Speaker - subwoofer - 20 Watt - 65 - 180 Hz CFR - 8 Ohm - passive |
| Driver Details | Speaker: subwoofer driver - 3.5" |
