Speakers - for PA system - 20 Watt - white, RAL 9010
| Main Specifications | |
|---|---|
| Product Description | Yamaha VXC series F VXC3FW - speakers - for PA system |
| Product Type | Speakers - for PA system |
| System Components | 2 speakers |
| Enclosure Design | Bass reflex |
| Speaker Type | Passive |
| Continuous Power | 20 watt |
| Peak Power | 40 watt |
| Frequency Response | 71 - 20000 Hz |
| Nominal Impedance | 8 ohm |
| Integrated Transformer | 70V/100V or 8 Ohm operation |
| Color | White, RAL 9010 |
| Dimensions (WxDxH) | 4.4 in |
| Dimensions - Diameter | 11.2 in |
| Weight | 5.51 lbs |
| General | |
| Product Type | Speakers - for PA system |
| Enclosure Color | White, RAL 9010 |
| Enclosure Design | Bass reflex |
| Enclosure Material | ABS plastic |

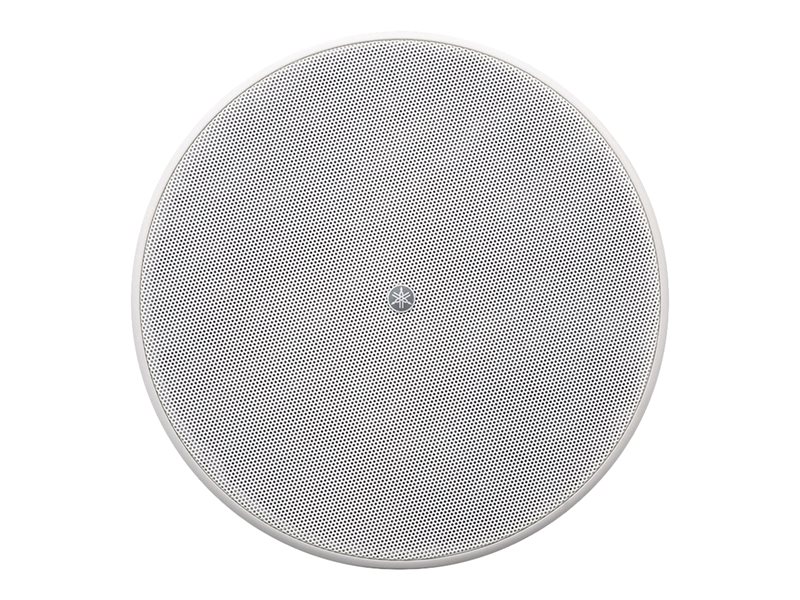

| Design Features | Paintable grille |
| Miscellaneous | |
| Included Accessories | O-ring, tile rails, magnetic speaker grilles, cutout templete |
| Compliant Standards | NFPA 70, RoHS, UL 94 V-0, EAC, UL 1480 |
| Connections | |

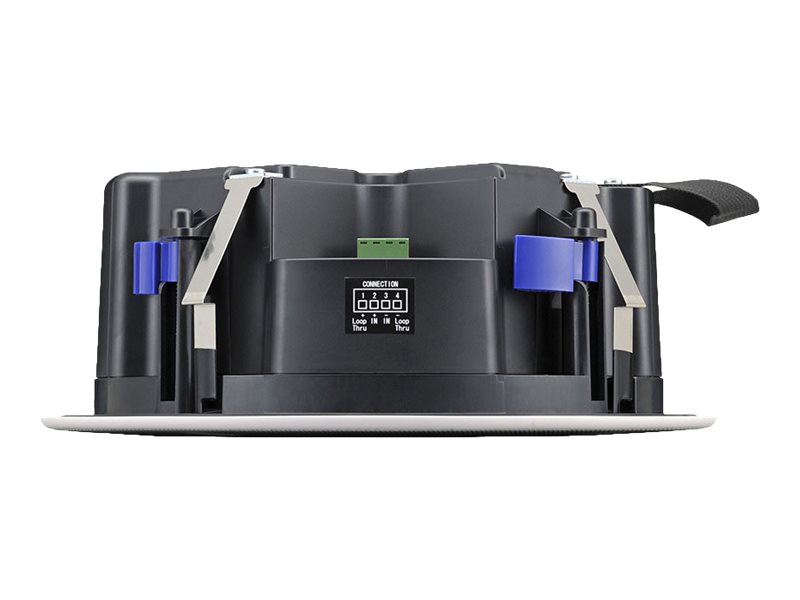

| Connector Type | Speakers input (Euroblock 4-pole) |
| Dimensions & Weight | |
| Diameter | 11.2 in |
| Depth | 4.4 in |
| Weight | 5.51 lbs |
| Speaker System | |
| System Components | 2 speakers |
| Speaker Type | Passive |
| Continuous Power | 20 watt |
| Peak Power | 40 watt |
| Frequency Response | 71 - 20000 Hz |
| Nominal Impedance | 8 ohm |
| Max Output Level (Max SPL) | 106 dB |
| Sensitivity | 87 dB |
| Integrated Transformer | 70V/100V or 8 Ohm operation |
| Coverage | 140° conical |
| Recommended Placing | In-ceiling mounted |
| Speaker System Details | |
| Driver Details | Speaker: full-range driver - 3.5" |
| Cutout & Mounting Dimensions | |
| Diameter | 9.7 in |
