Keyboard/mouse/USB/audio switch - 8 x USB + 8 x audio - desktop - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | Black Box Freedom II 8-Port KM Switch - keyboard/mouse/USB/audio switch - 8 ports - TAA Compliant |
| Device Type | Keyboard/mouse/USB/audio switch - 8 ports |
| Subtype | KVM |
| Ports | 8 x USB + 8 x audio |
| Features | Firmware upgradable, input selection buttons |
| Power | AC 120/230 V (50/60 Hz) |
| Dimensions (WxDxH) | 17 in x 6.2 in x 1.2 in |
| TAA Compliant | Yes |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Keyboard/mouse/USB/audio switch - 8 ports |
| Enclosure Type | Desktop |
| Subtype | KVM |
| Ports | 8 x USB + 8 x audio |
| Keyboard / Mouse Interface | USB |
| Features | Firmware upgradable, input selection buttons |
| Status Indicators | Status, select, USB |
| Expansion / Connectivity | |

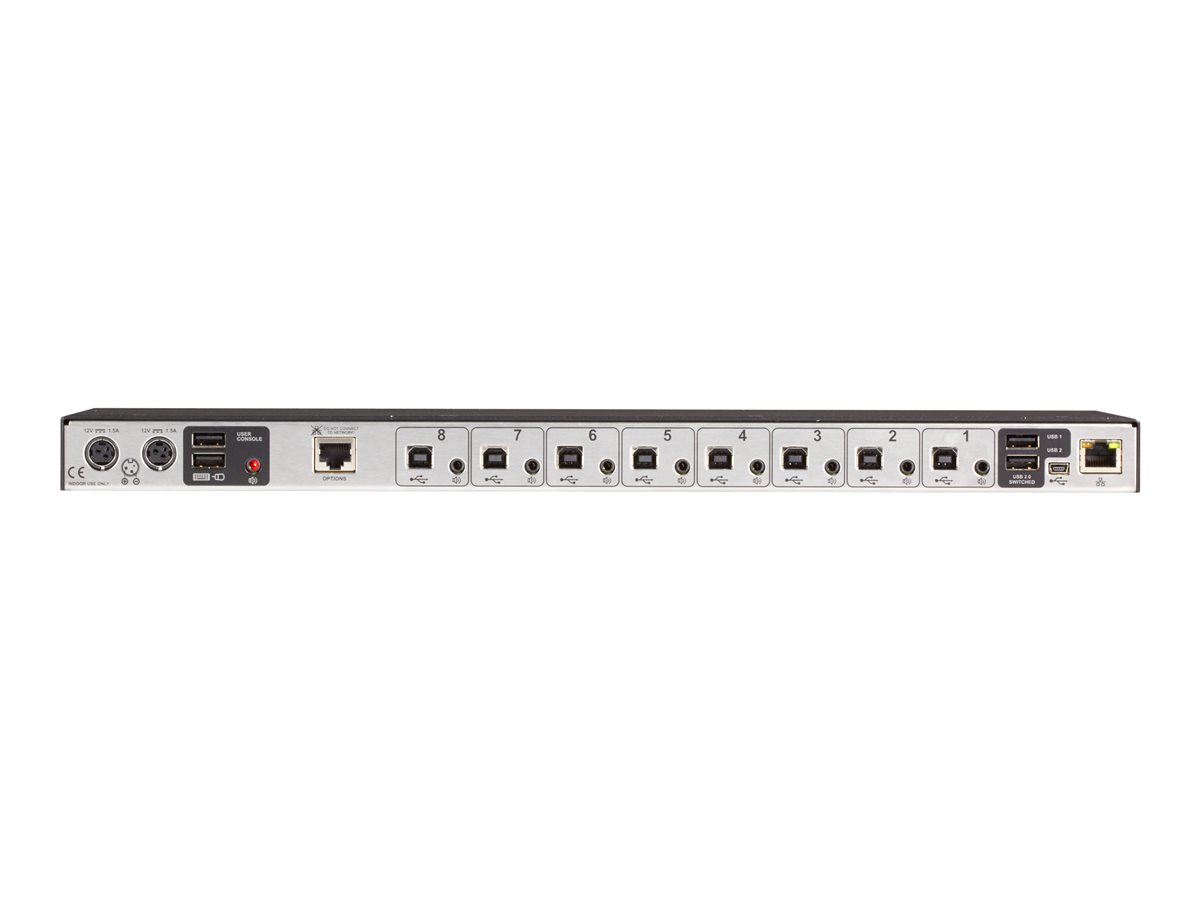

| Interfaces | 2 x keyboard (USB) / mouse (USB) Type A ¦ 2 x USB 2.0 output Type A ¦ 1 x mini-USB ¦ 8 x USB input Type B ¦ 8 x audio input mini-jack ¦ 1 x LAN RJ-45 ¦ 1 x audio output mini-jack ¦ 1 x RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Included Accessories | 4 self-adhesive rubber feet |
| Compliant Standards | FCC |
| TAA Compliant | Yes |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 18 watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Dimensions & Weight | |
| Width | 17 in |
| Depth | 6.2 in |
| Height | 1.2 in |
