System bus extender - DP - 65 Watt - for P/N: TB3DK2DPM2, TB3DOCK2DPPD, TB3DOCK2DPPU
| Main Specifications | |
|---|---|

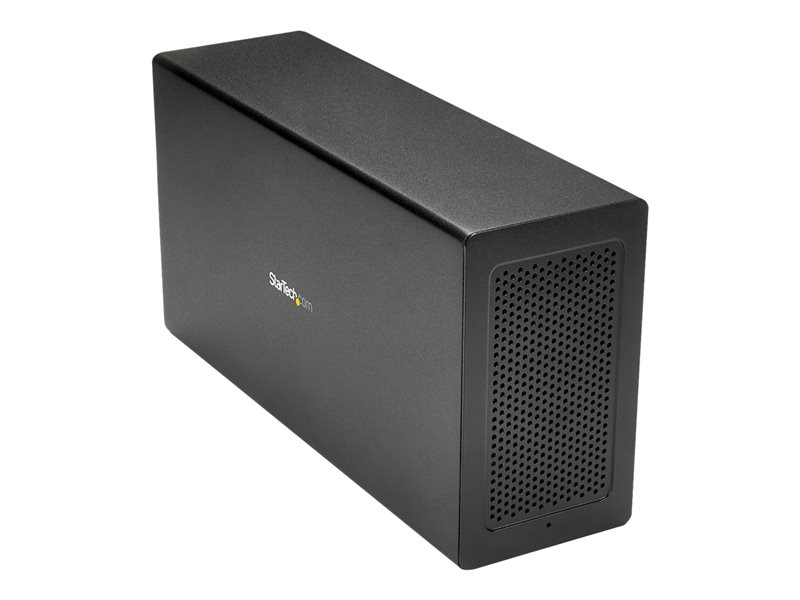

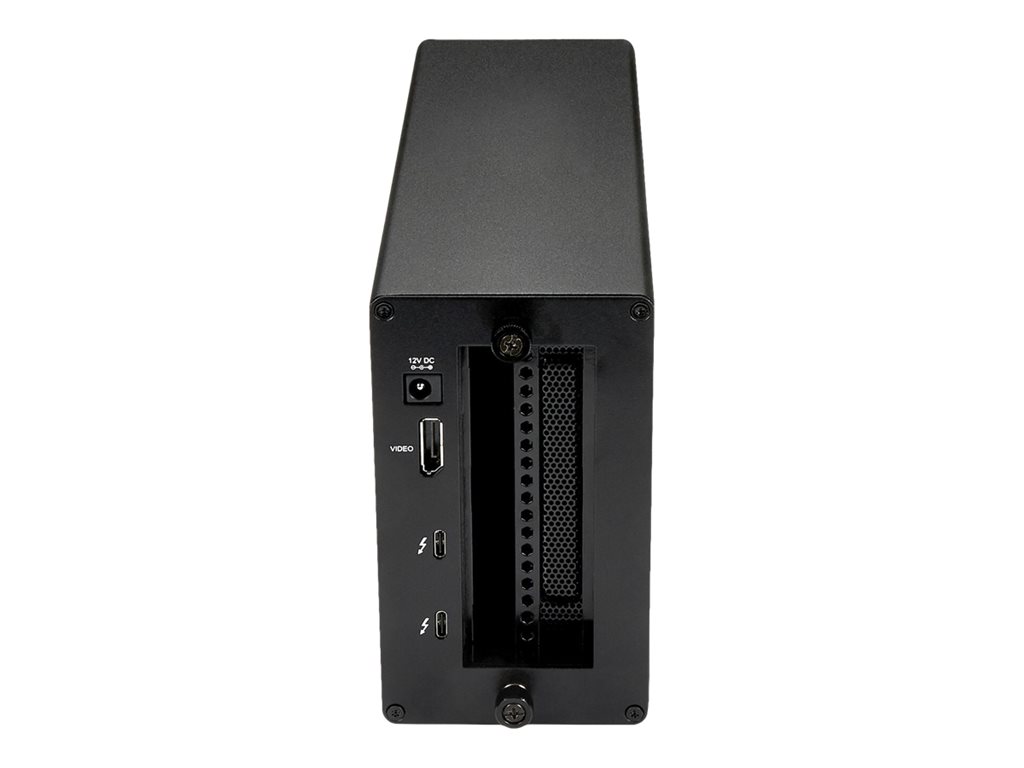

| Product Description | Startech Thunderbolt 3 PCIe Expansion Chassis, External Enclosure Box with 1x PCI-Express Slot, 5K/4K Output Via TB3/DP Ports, TAA - system bus extender - DP |
| Product Type | System bus extender |
| Video Interfaces | DP |
| Dimensions (WxDxH) | 10.7 in x 3.2 in x 5.5 in |
| Weight | 2.2 lbs |
| Color | Black |
| Power | Power adapter AC 100/240 V (50/60 Hz) 65 Watt Power Provided |
| Manufacturer Warranty | 2-year warranty |
| Designed For | P/N: TB3DK2DPM2, TB3DOCK2DPPD, TB3DOCK2DPPU |
| General | |
| Product Type | System bus extender |
| Width | 10.7 in |
| Depth | 3.2 in |
| Height | 5.5 in |
| Weight | 2.2 lbs |
| Enclosure Color | Black |
| Expansion / Connectivity | |

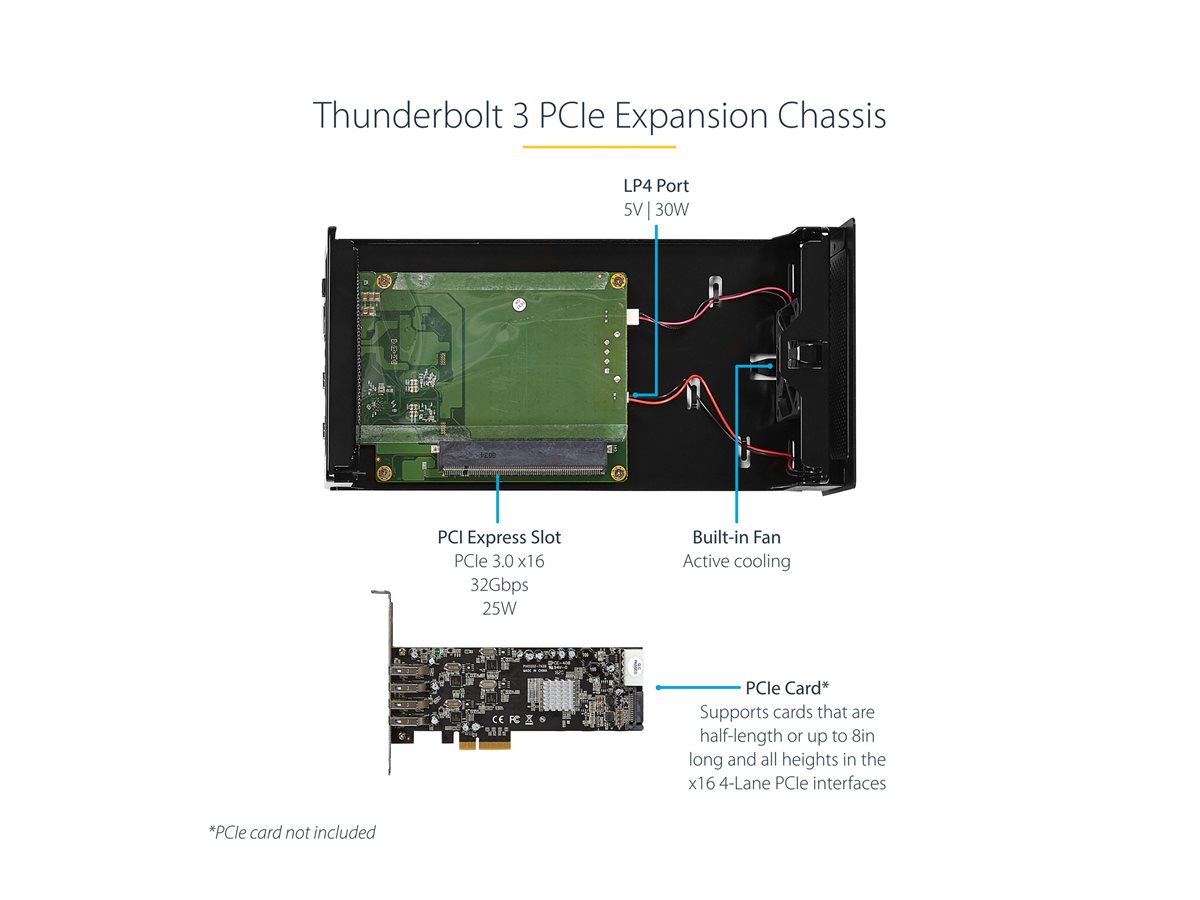

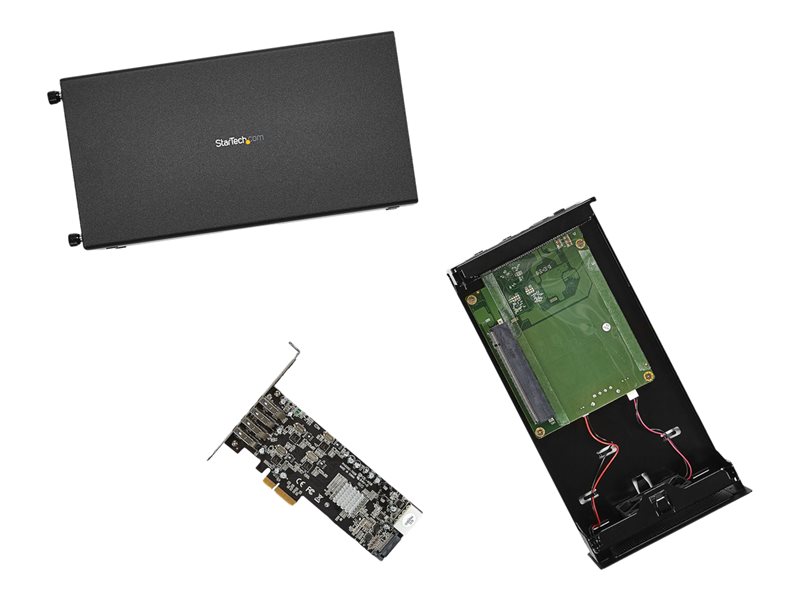

| Expansion Slots | 1 (total) / 1 (free) x PCI Express 3.0 x16 (x4 mode) |

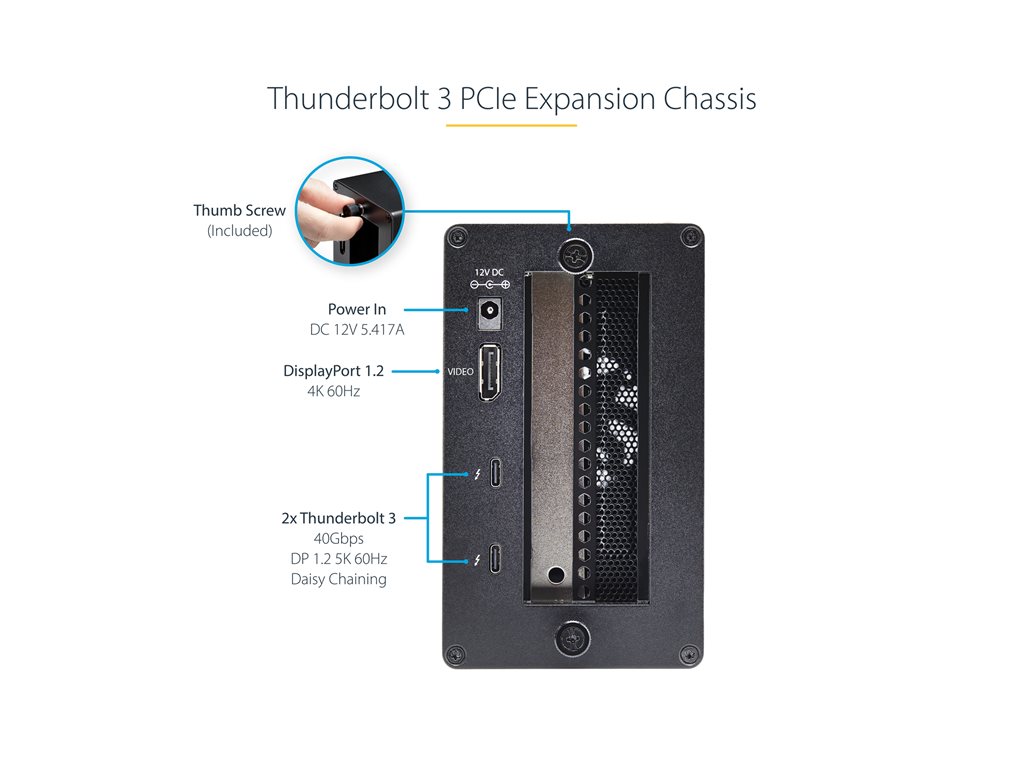

| Interfaces | 2 x Thunderbolt 3 - 24 pin USB-C ¦ 1 x display / video - DisplayPort - 20 pin DisplayPort |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |

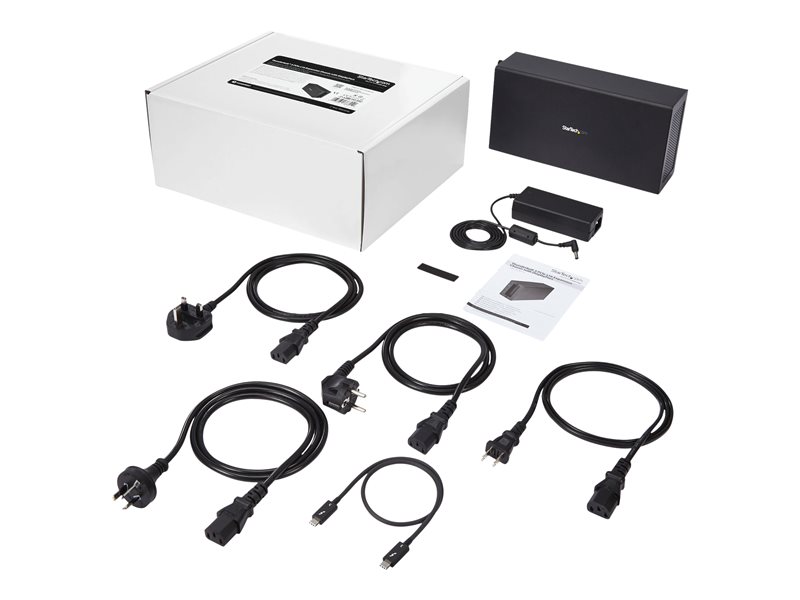

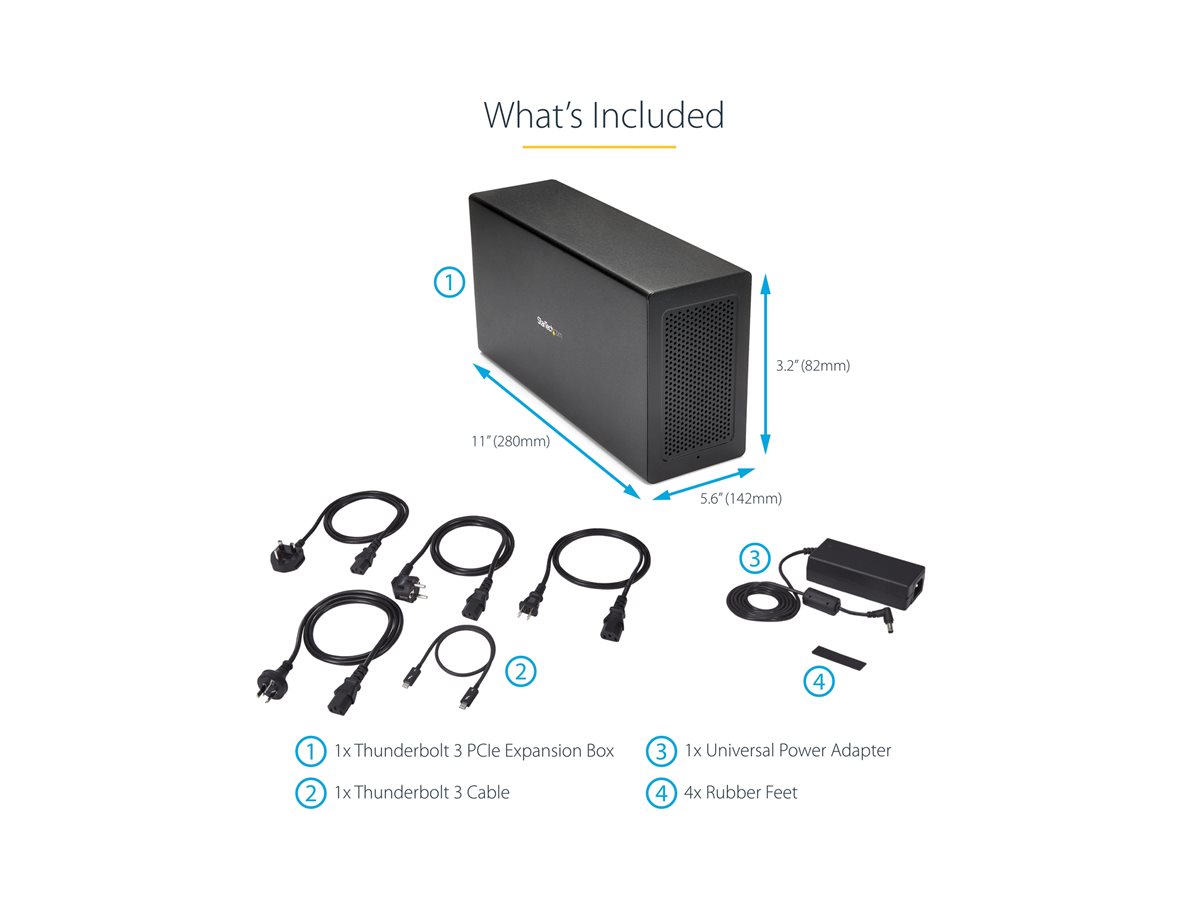

| Cables Included | 1 x Thunderbolt cable - external |
| Included Accessories | 4 x rubber feet |
| Features | LED indicator, built-in cooling fan |
| Compliant Standards | FCC, RoHS, WEEE |
| Power | |
| Power Device | Power adapter |
| Voltage Required | AC 100/240 V (50/60 Hz) |
| Power Provided | 65 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 95 °F |
| System Requirements | |
| OS Required | Apple macOS 10.12 - 10.15, Apple macOS 11.0, Microsoft Windows 7 / 8 / 8.1 / 10 / 11, Apple macOS 12.0, Apple macOS 13.0 |
| Compatibility Information | |
| Designed For | P/N: TB3DK2DPM2, TB3DOCK2DPPD, TB3DOCK2DPPU |
