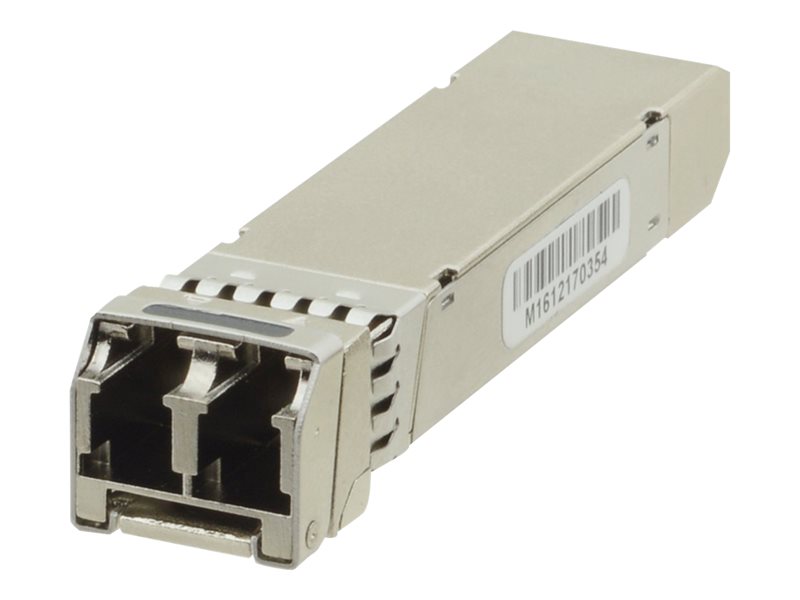

SFP+ transceiver module - LC multi-mode - up to 1.9 miles - 850 nm
| Main Specifications | |
|---|---|
| Product Description | Kramer OSP-MM1 - SFP+ transceiver module |
| Device Type | SFP+ transceiver module - LC multi-mode |
| Form Factor | Plug-in module |
| Data Transfer Rate | 10.2 Gbps |
| Optical Wave Length | 850 nm |
| Max Transfer Distance | 1.9 miles |
| Dimensions (WxDxH) | 0.5 in x 2.2 in x 0.3 in |
| Weight | 0.63 oz |
| General | |
| Device Type | SFP+ transceiver module |
| Form Factor | Plug-in module |
| Expansion / Connectivity | |
| Interfaces | 1 x - LC multi-mode female x 2 |
| Miscellaneous | |
| Compliant Standards | UL, cUL, EMC, OFNR, FDA, CDRH, Directive 2002/95/EC, ITU-T G.651.1, 21 CFR 1040, OM3, EN60950-2:2007, EN 55024:1998+A1:2001+A2:2003, EN 55022:2006+A1:2007 |
| Networking | |
| Connectivity Technology | Wired |
| Data Transfer Rate | 10.2 Gbps |
| Optical Wave Length | 850 nm |
| Max Transfer Distance | 1.9 miles |
| Compliant Standards | IEEE 802.3ae |
| Power | |
| Power Consumption Operational | 1 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 158 °F |
| Humidity Range Operating | 5 - 95% |
| Dimensions & Weight | |
| Width | 0.5 in |
| Depth | 2.2 in |
| Height | 0.3 in |
| Weight | 0.63 oz |
