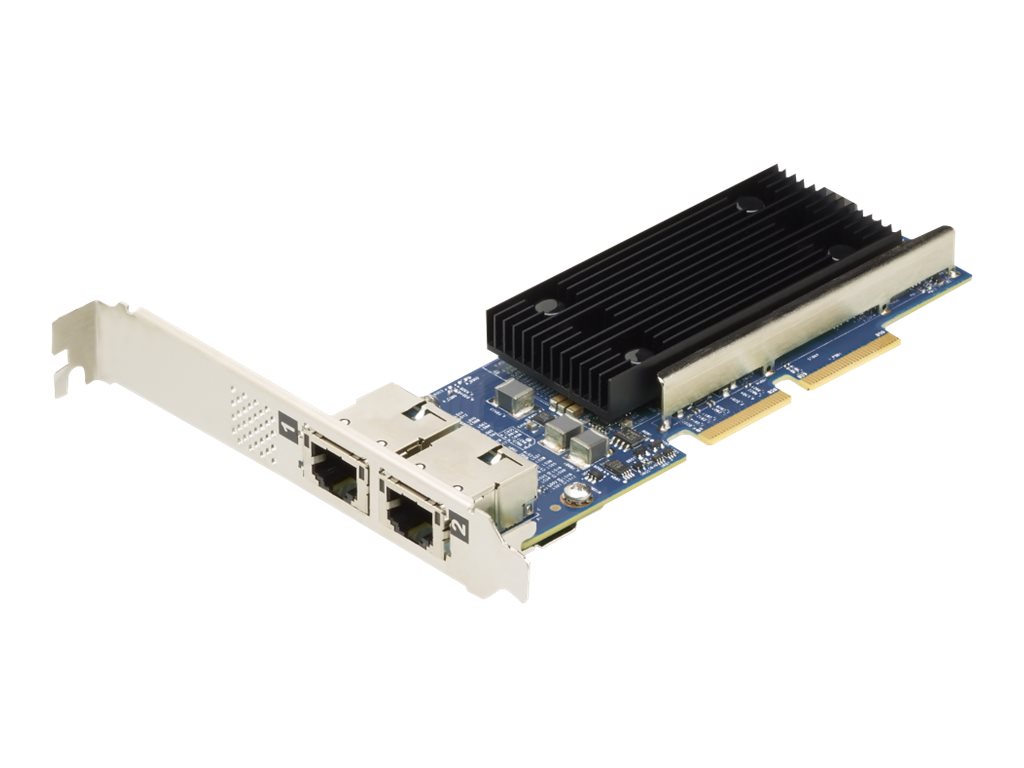

Network adapter - ML2 - 10Gb Ethernet x 2 - for ThinkAgile VX Certified Node 7Y94, 7Z12; ThinkAgile VX7820 Appliance; ThinkSystem SR950
| Main Specifications | |
|---|---|
| Product Description | Lenovo ThinkSystem Broadcom NX-E - network adapter - ML2 - 10Gb Ethernet x 2 |
| Device Type | Network adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | Mezzanine LAN-on-Motherboard Generation 2 (ML2) |
| Ports | 10Gb Ethernet x 2 |
| Dimensions (WxDxH) | 0.7 in x 6.6 in x 2.7 in |
| Cabling Type | Ethernet 100Base-TX, Ethernet 1000Base-T, Ethernet 10GBase-T |
| Data Link Protocol | 10GbE |
| Capacity | Jumbo frame size: 9000 |
| Processor | 1 x Broadcom BCM57416 |
| Compliant Standards | IEEE 802.3ab, IEEE 802.3an, IEEE 802.1Qbb, IEEE 802.1Qaz |
| Manufacturer Warranty | 1-year warranty |
| Designed For | ThinkAgile VX Certified Node 7Y94, 7Z12; ThinkAgile VX7820 Appliance 7Z13; ThinkSystem SR530; SR550; SR570; SR590; SR630; SR650; SR850; SR860; SR950 |
| General | |
| Device Type | Network adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | Mezzanine LAN-on-Motherboard Generation 2 (ML2) |
| Expansion / Connectivity | |
| Interfaces | 2 x network - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Included Accessories | Low-profile bracket, full-height bracket |
| Compliant Standards | UL, BSMI CNS 13438 Class A, RRL, CSA 22.2 No. 950, MIC, ICES-003 Class A, UL 60950-1, EN 60950-1, cTUVus, EN55024 Class A, VCCI V-3, KN24, KN22 Class A, EN55022:2010, CNS 14336, EN 55024:2010, FCC CFR47 Part 15 A |
| Networking | |
| Ports | 10Gb Ethernet x 2 |
| Connectivity Technology | Wired |
| Cabling Type | Ethernet 100Base-TX, Ethernet 1000Base-T, Ethernet 10GBase-T |
| Data Link Protocol | 10 Gigabit Ethernet |
| Capacity | Jumbo frame size: 9000 |
| Features | IPv6 support, DCBX support, IPv4 support, LSO, LRO, RSS, DCB, TSO, MSI-X, GRE, TSS, iSCSI boot, TCP/IP checksum offload, UDP/IP checksum offload, RoCE, NC-SI, VXLAN, NVGRE, Jumbo Frames support (up to 9000 bytes) |
| Compliant Standards | IEEE 802.3ab, IEEE 802.3an, IEEE 802.1Qbb, IEEE 802.1Qaz |
| Processor / Memory | |
| Processor | 1 x Broadcom BCM57416 |
| Dimensions & Weight | |
| Width | 0.7 in |
| Depth | 6.6 in |
| Height | 2.7 in |
| Compatibility Information | |
| Designed For | Lenovo ThinkAgile VX Certified Node 7Y94, 7Z12 ¦ Lenovo ThinkAgile VX7820 Appliance 7Z13 ¦ Lenovo ThinkSystem SR530 ¦ Lenovo ThinkSystem SR550 ¦ Lenovo ThinkSystem SR570 ¦ Lenovo ThinkSystem SR590 ¦ Lenovo ThinkSystem SR630 ¦ Lenovo ThinkSystem SR650 ¦ Lenovo ThinkSystem SR850 ¦ Lenovo ThinkSystem SR860 ¦ Lenovo ThinkSystem SR950 |
