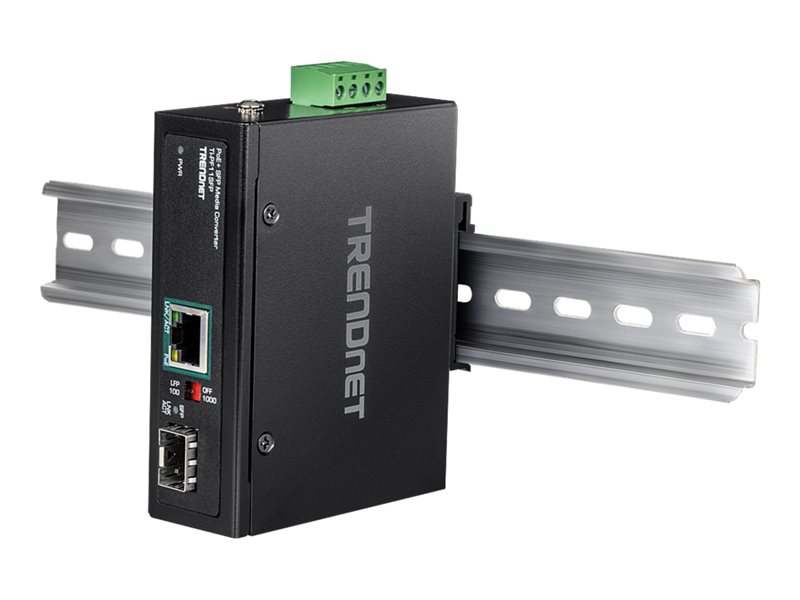

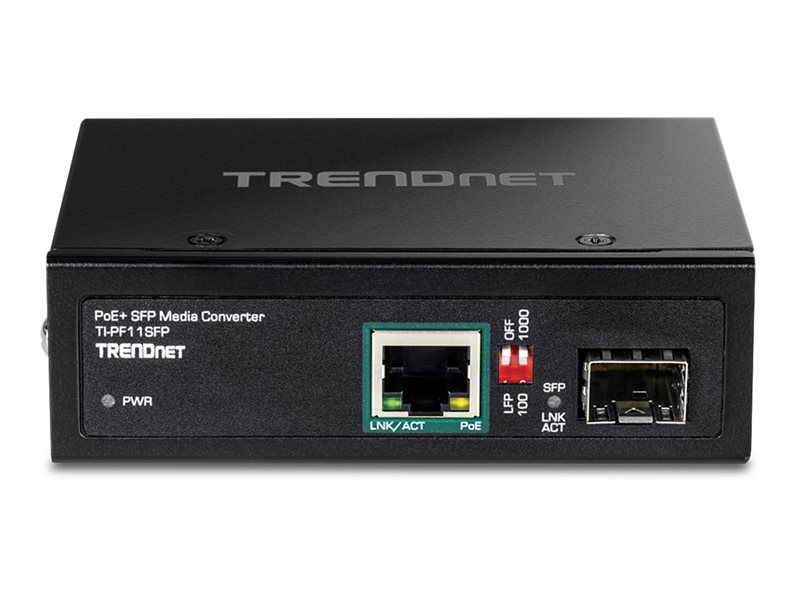

Fiber media converter - 1GbE - 10Base-T, 100Base-TX, 1000Base-T - RJ-45 / SFP (mini-GBIC) - up to 24.9 miles - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | TRENDnet TI-PF11SFP - fiber media converter - 10Mb LAN, 100Mb LAN, 1GbE - TAA Compliant |
| Device Type | Fiber media converter - RJ-45 / SFP (mini-GBIC) |
| Form Factor | Wall / DIN rail mountable |
| Cabling Type | 10Base-T, 100Base-TX, 1000Base-T |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE |
| Max Transfer Distance | 24.9 miles |
| Power Over Ethernet (PoE) | PoE+ |
| Power | DC 48 - 56 V - power adapter not included |
| Dimensions (WxDxH) | 4.1 in x 3.2 in x 1.3 in |
| Weight | 5.43 oz |
| TAA Compliant | Yes |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Fiber media converter |
| Form Factor | Wall / DIN rail mountable |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 1000Base-T (PoE+) - RJ-45 female ¦ 1 x Ethernet 1000 - SFP |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |

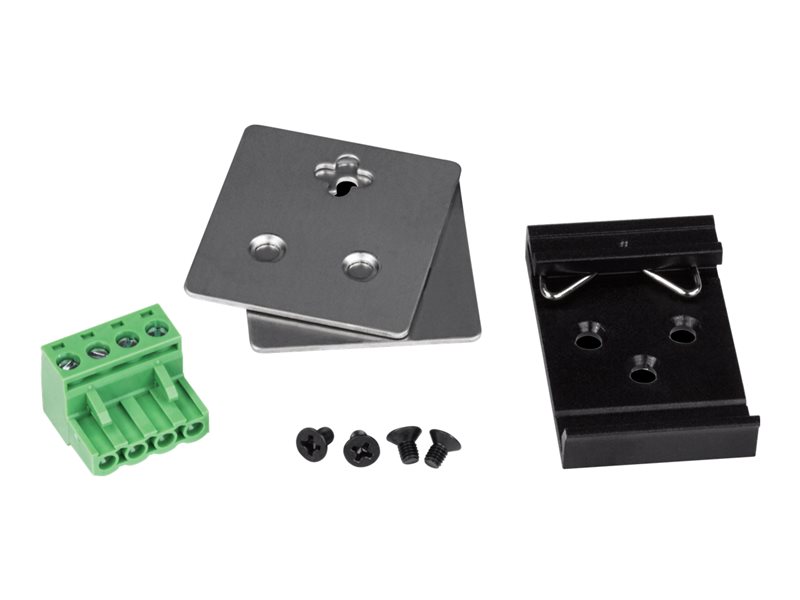

| Included Accessories | DIN-rail mounting kit, wall mounting kit, removable terminal block |
| MTBF | 500,000 hours |
| Compliant Standards | EN55022, EN55024, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, EN 55011, FCC Part 15 B Class A, IP30, EN 55022 Class A |
| TAA Compliant | Yes |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 10Base-T, 100Base-TX, 1000Base-T |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE |
| Max Transfer Distance | 24.9 miles |
| Features | Auto-negotiation, store and forward, half duplex mode, full duplex mode, surge protection, Jumbo Frames support, built-in DIP switch |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at |
| Power | |
| Power Over Ethernet (PoE) | PoE+ |
| Power Device | External power adapter (not included) |
| Power Redundancy | Yes |
| Max Supported Qty | 2 |
| Voltage Required | DC 48 - 56 V |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 167 °F |
| Humidity Range Operating | 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 4.1 in |
| Depth | 3.2 in |
| Height | 1.3 in |
| Weight | 5.43 oz |
