NVR - 16 channels - 1 x 8 TB - networked - rack-mountable (option)
| Main Specifications | |
|---|---|

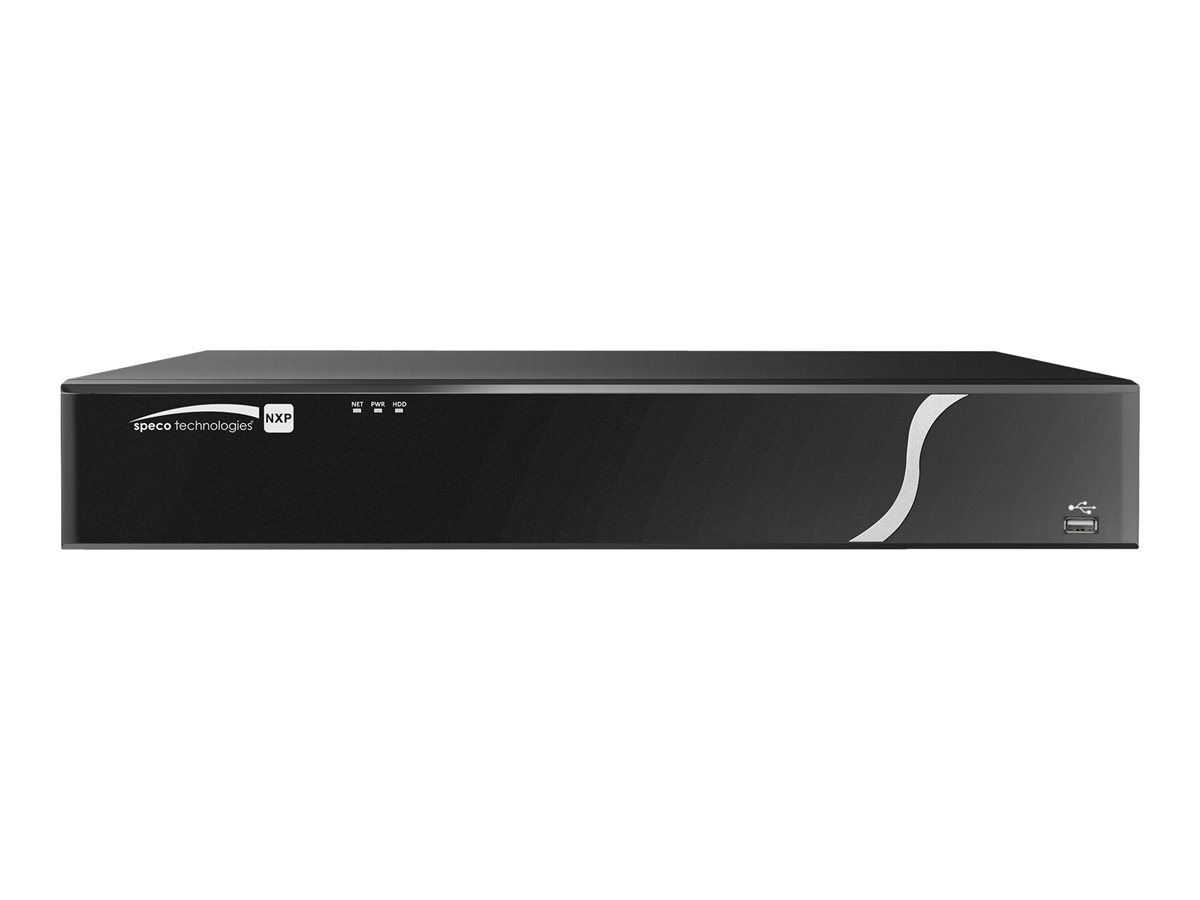

| Product Description | Speco N16NXP - standalone NVR - 16 channels |
| Device Type | NVR - 16 channels - networked - rack-mountable (option) |
| IP Cameras Supported | 16 |
| Frame Rate | 200 fps |
| Compression Format | G.711, H.264, H.265 |
| Image Resolution | 1280x720, 1920x1080, 1024x768, 1280x1024, 3840x2160 |
| Hard Drive | 1 x 8 TB |
| Hard Drive(s) Supported | Quantity: 2 |
| Voltage | 120 / 230 V |
| Dimensions (WxDxH) | 14.8 in x 12.9 in x 2.1 in |
| Manufacturer Warranty | 5 years |
| General | |
| Device Type | NVR - rack-mountable (option) |
| Video Channels | 16 |
| IP Cameras Supported | 16 |
| Audio Channels | 16 |
| Image Resolution | 1280x720, 1920x1080, 1024x768, 1280x1024, 3840x2160 |
| Compression Format | G.711, H.264, H.265 |
| Compliant Standards | Plug and Play, UL, IEEE 802.3at |
| Warranty | 5 years |
| Networking | |
| DDNS Support | Yes |
| Network Interfaces | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Supported Protocols | DDNS, DNS, HTTP, NTP, TCP/IP, UDP/IP, SNMP, RTSP, HTTPS, IPv4 |
| Features | Power over Ethernet (PoE), firmware upgradable, ONVIF support |
| Power | |
| Voltage | 120 / 230 V |
| Frequency | 50 - 60 Hz |
| Environmental Parameters | |
| Min Operating Temperature | 14 °F |
| Max Operating Temperature | 131 °F |
| Humidity Range Operating | 10 - 90% RH |
| Hard Drive | |
| Quantity Installed | 1 |
| Quantity Supported | 2 |
| Capacity | 8 TB |
| Interface | Serial ATA |
| Connections | |
| Video Output Ports | HDMI x 1, BNC x 1, VGA x 1 |
| Audio Input Ports | RCA x 1 |
| Audio Output Ports | RCA x 1 |
| Alarm Ports | Alarm output x 2 |
| Network Port | 10/100/1000Base-T x 8 (PoE/PoE+) / 10/100/1000Base-T x 1 |
| Other Ports | USB 2.0, USB 3.0 x 1 |
| Dimensions & Weight | |
| Width | 14.8 in |
| Depth | 12.9 in |
| Height | 2.1 in |
| Security DVR | |
| Frame Rate (Record) | 200 fps |
| Display Modes | Full screen, 8 split screens, 4 split screens |
| Playback Search | Date/time |
| Record Events | Motion detection, scheduled, manual, continuous, sensor |
| Networked | Yes |
| Features | Pan/Tilt/Zoom support |
