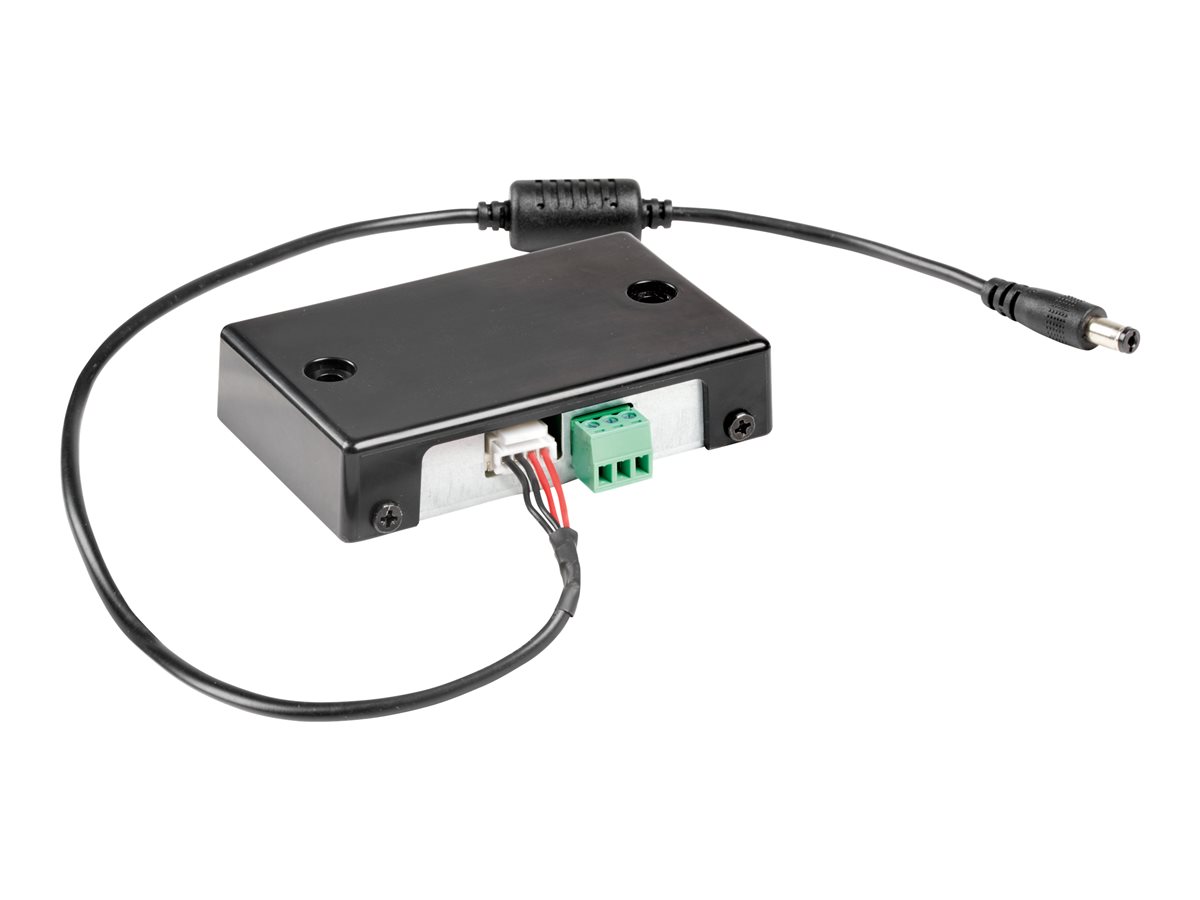

Power converter - 24 V - black - for Elo 1093, 1291, 15XX, 1991, 2094, 24XX, 2794; Open-Frame Touchmonitors 1790, 1990, 2294
| Main Specifications | |
|---|---|
| Product Description | Elo 24 VDC Converter Kit - power converter |
| Device Type | Power converter - external |
| Weight | 3.88 oz |
| Input Voltage | 24 V |
| Output Voltage | 12 V |
| Input Connectors | Terminal block |
| Color | Black |
| Dimensions (WxDxH) | 3.6 in x 2.2 in x 0.8 in |
| Designed For | Elo 1093L, 1291L, 1590L, 1593L, 1598L, 1991L, 2094L, 2494L, 2495L, 2794L; Open-Frame Touchmonitors 1790L, 1990L, 2294L |
| General | |
| Device Type | Power converter - external |
| Color | Black |
| Miscellaneous | |
| Cables Included | Power cable - external - 1.3 ft |
| Compliant Standards | FCC, RCM, VCCI |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 20 - 80% |
| Power Device | |
| Input Voltage | 24 V |
| Input Connectors | Terminal block |
| Output Voltage | 12 V |
| Max Electric Current | 3.5 A |
| Dimensions & Weight | |
| Width | 3.6 in |
| Depth | 2.2 in |
| Height | 0.8 in |
| Weight | 3.88 oz |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 6.1 in |
| Shipping Depth | 4.5 in |
| Shipping Height | 3.3 in |
| Shipping Weight | 8.11 oz |
| Compatibility Information | |
| Designed For | Elo 1093L, 1291L, 1590L, 1593L, 1598L, 1991L, 2094L, 2494L, 2495L, 2794L ¦ Elo Open-Frame Touchmonitors 1790L, 1990L, 2294L |
